Front Fender Liner: Service and Repair

Fender Splash Shield

Service Repair No - 76.10.48

Removal

All vehicles

1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

2. Remove the fender seal

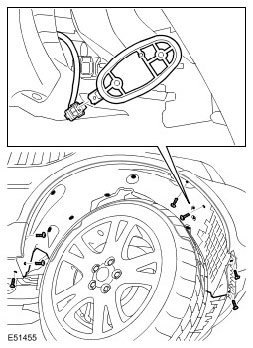

3. Remove the fender splash shield.
^ Release the 6 clips.
^ Remove the 7 screws.
^ Disconnect the electrical connector.





4. NOTE: Do not disassemble further if the component is removed for access only.

Remove the tire pressure antenna.
^ Release the 2 clips.





Vehicles with supercharger

5. NOTE: Right-hand shown, left-hand similar.

Remove fender splash shield grille.
^ Release the 3 clips and remove the cover.





Installation

Vehicles with supercharger

1. Install the fender splash shield grille.
^ Secure with the clips.

All vehicles

2. Install the tire pressure antenna.
3. Install the fender splash shield.
^ Tighten the screws.
^ Install the clips.
^ Connect the electrical connector.

4. Install the fender seal.
