Distance Sensor: Adjustments



Speed Control Sensor Adjustment

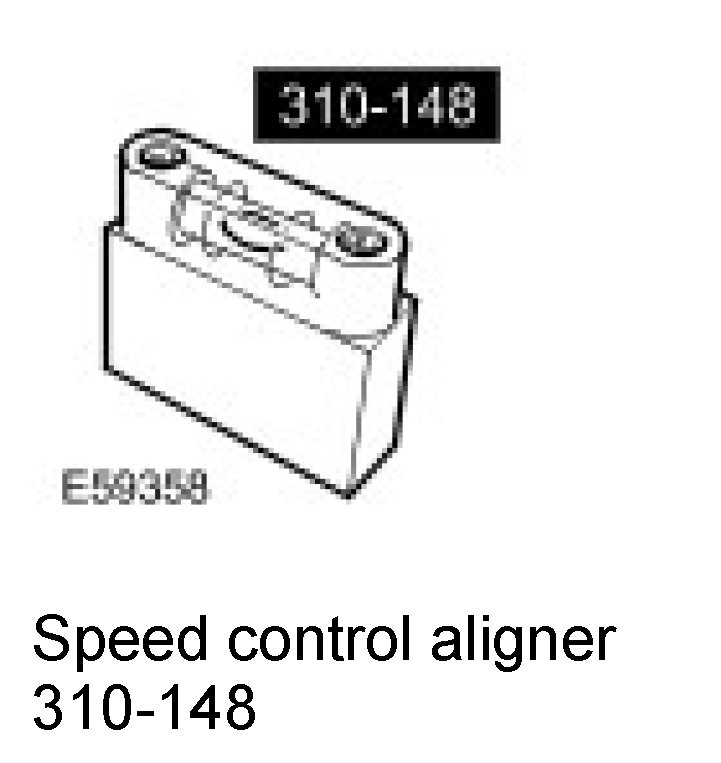

Special Service Tools





NOTE:
^ Special tool 310-148 is graduated in 0.5 degree increments.
^ This procedure details how to adjust the speed control sensor vertically. There is no horizontal adjustment required.

1. Remove the front bumper cover.
2. Set the air suspension ride height to the STANDARD setting.

CAUTION: Drive the vehicle on to a flat, level surface.

3. Using the special tool, check the speed sensor is level, (± 0.5 degree).

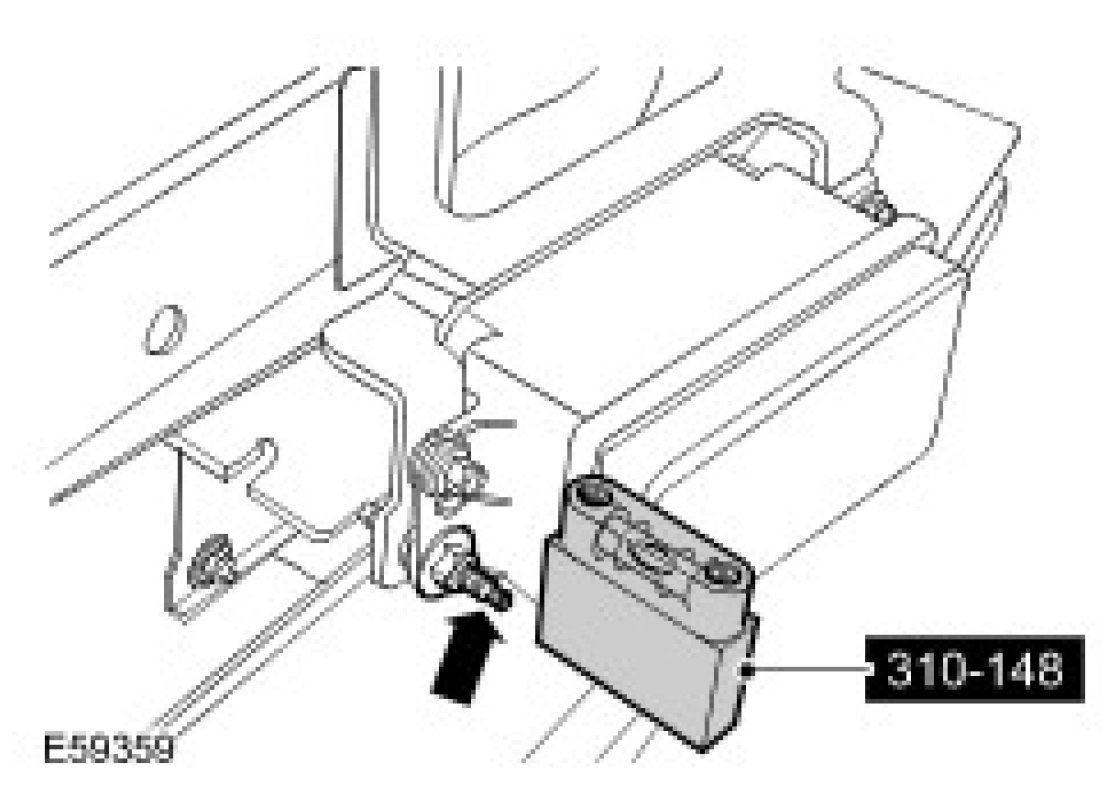

4. Using the special tool, set the speed control sensor.
^ Rotate the vertical adjuster.

NOTE:
^ The speed sensor has no mechanical horizontal adjustment.
^ Do not release the securing nut.





5. Install the front bumper cover.
