Distance Sensor: Service and Repair



Speed Control Sensor

Removal
1. Disconnect the battery ground cable.
2. Remove the front bumper cover.

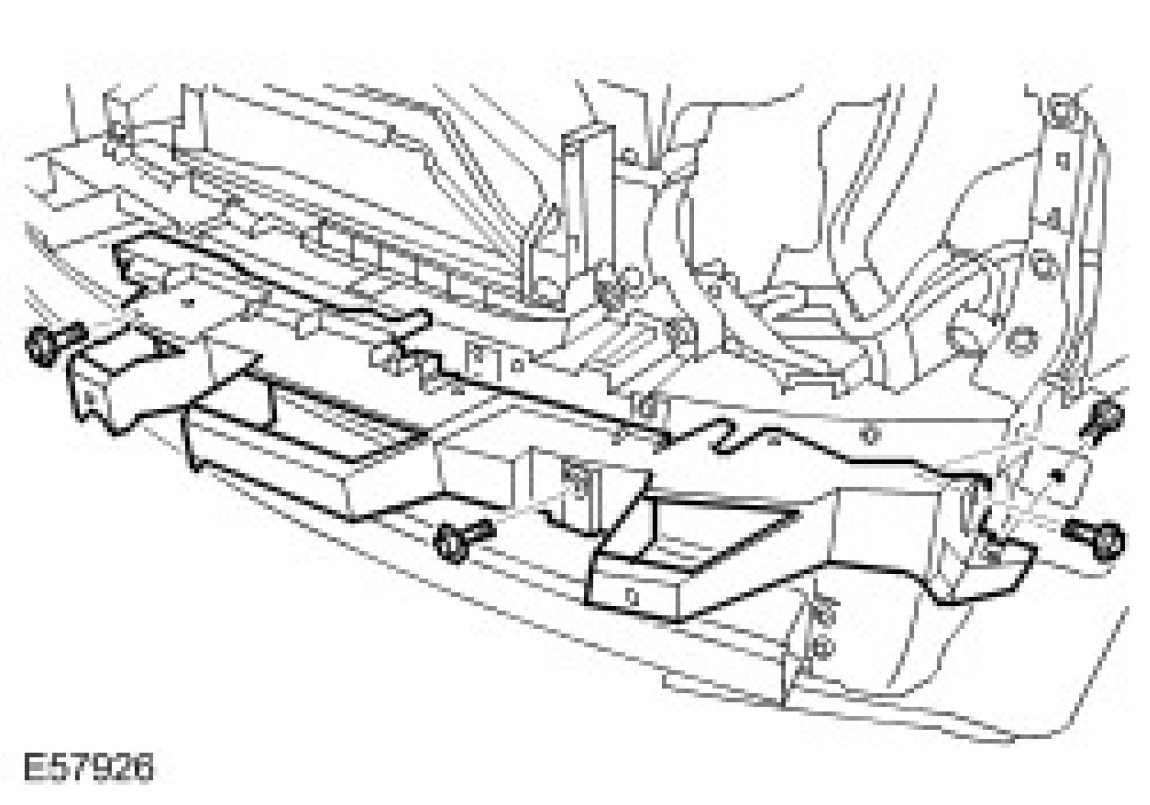

3. Remove the LH bumper support bracket.
^ Remove the 3 Torx screws.
^ Remove the screw.

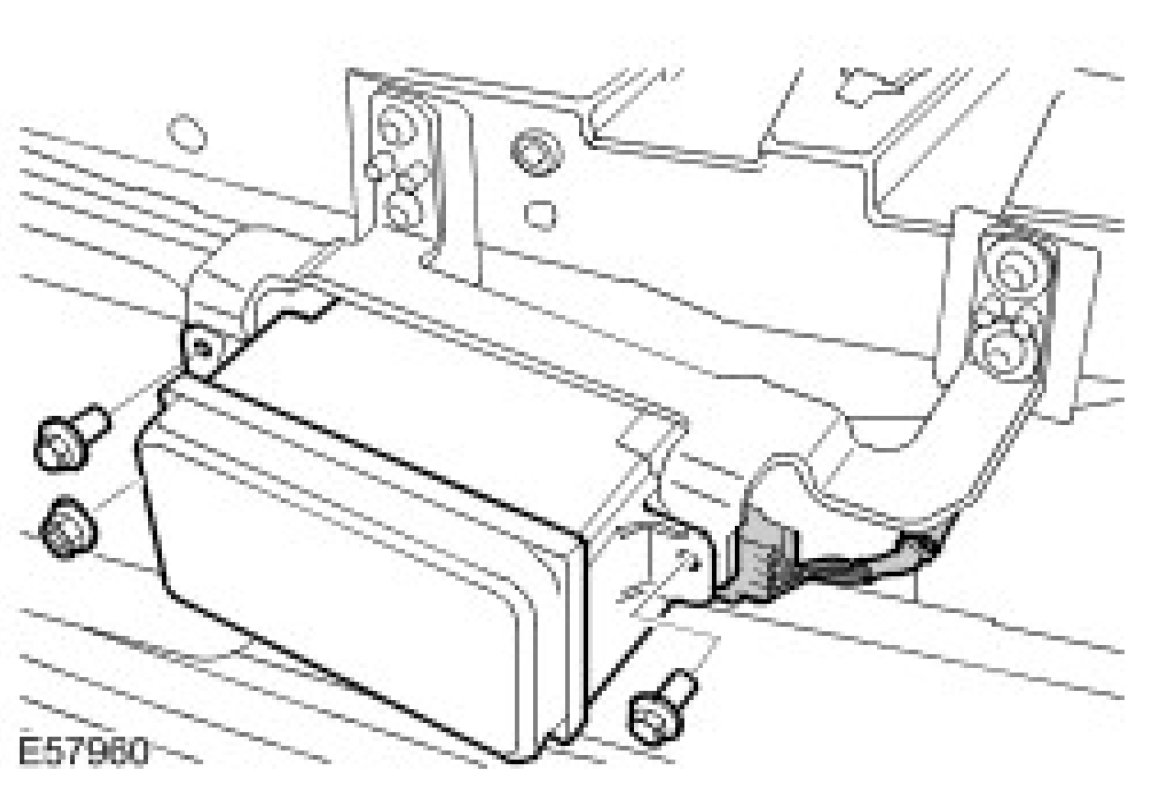

4. Remove the speed control sensor.
^ Remove the 2 bolts.
^ Remove the nut.
^ Release and disconnect the electrical connector.





Installation
1. Install the speed control sensor.
^ Tighten the nuts and bolts to 10 Nm (7 ft. lbs.).
^ Connect and secure the electrical connector.

2. Install the bumper support bracket.
^ Tighten the screws.

3. Connect the battery ground cable.
4. Adjust the speed control sensor.
5. Install the front bumper cover.
6. Using T4, configure a new speed control sensor.
