Blower Motor: Service and Repair

Blower Motor

Service Repair No - 80.20.15

Removal

1. Remove the glove compartment.

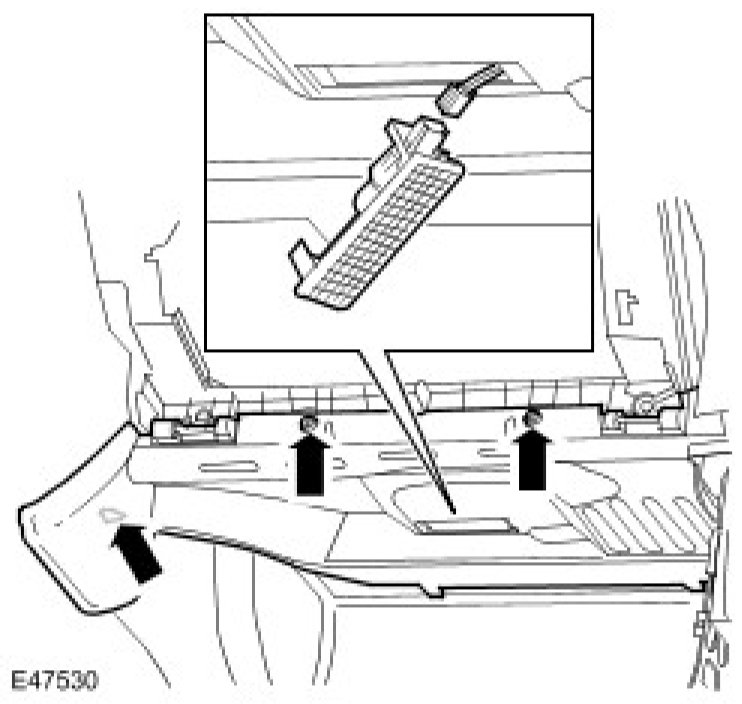

2. Remove the passenger side closing trim panel.
^ Release the clip.
^ Remove the 2 screws.
^ Disconnect the electrical connector.





3. Position the footwell duct aside for access.
^ Release the clip.





4. Remove the blower motor.
^ Disconnect the electrical connector.
^ Remove the 3 screws.

Installation

1. Install the blower motor.
^ Tighten the screws.
^ Connect the electrical connector.
2. Secure the footwell duct.
^ Install the clip.
3. Install the closing trim panel.
^ Connect the electrical connector.
^ Secure the clip.
^ Tighten the screws.
4. Install the glove compartment.
