Control Assembly: Service and Repair
Climate Control Assembly
Service Repair No - 80.10.02Removal 1.
Remove the floor console.
2.

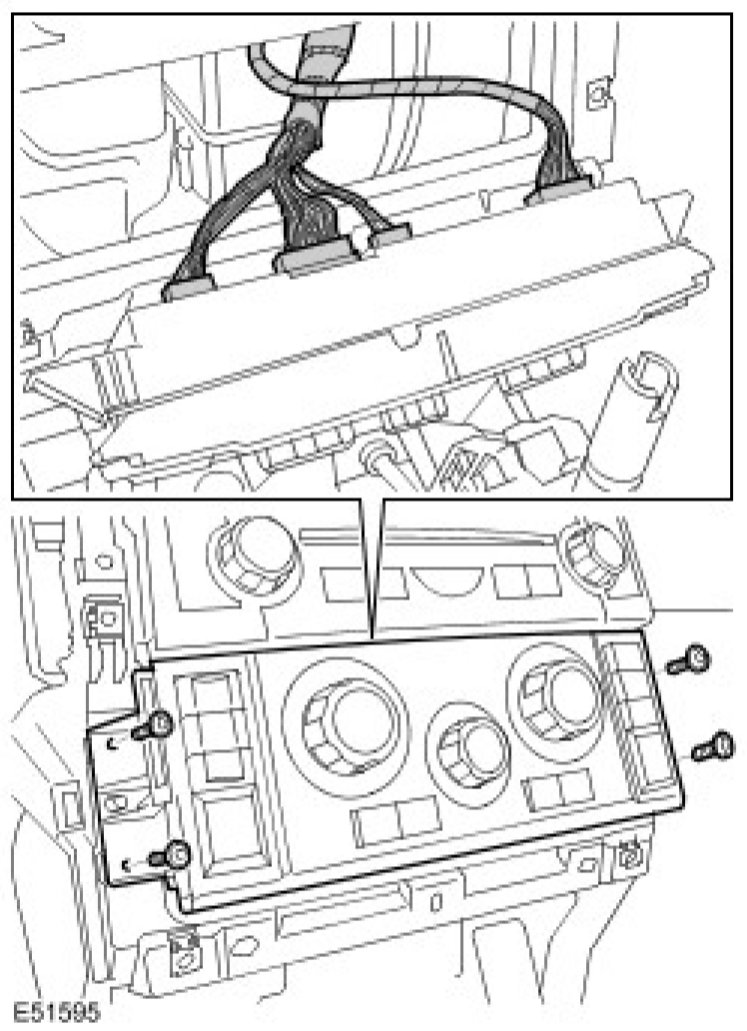

Remove the climate control assembly.
^
Remove the 4 Torx screws.
^
Disconnect the 4 electrical connectors.
Installation 1.
Install the climate control assembly.
^
Connect the electrical connectors.
^
Tighten the Torx screws.
2.
Install the floor console.
