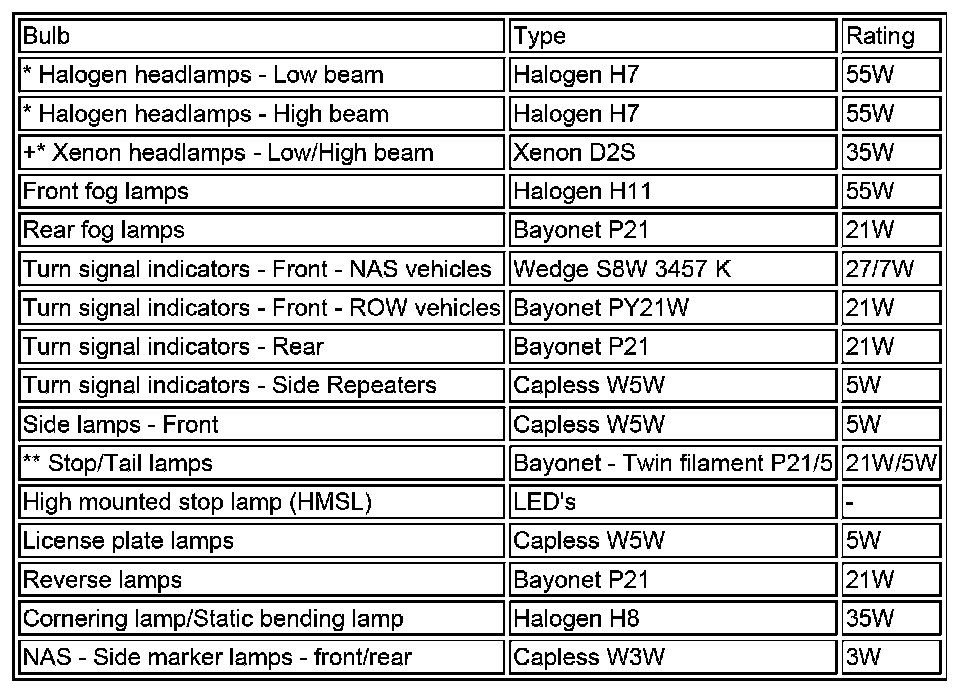

Lighting and Horns: Specifications
SpecificationsWARNING: + Refer to the General Information - Electrical Precautions section of this manual prior to carrying out any procedures on the Xenon headlamp system fitted to certain vehicles.NOTE: * NAS vehicles - Cornering lamps are not fitted to these vehicles.
NOTE: ** Note: 21W filament is not functional on lower
tail lamp.
