Passenger Compartment Fuse Box
The passenger compartment fuse box is fitted behind the glovebox. To access the fuses, open the glovebox to the service position.
This is done by opening the glovebox normally and then pinching the top of the support stays located either side of the hopper. This allows the glovebox to be lowered into the footwell.

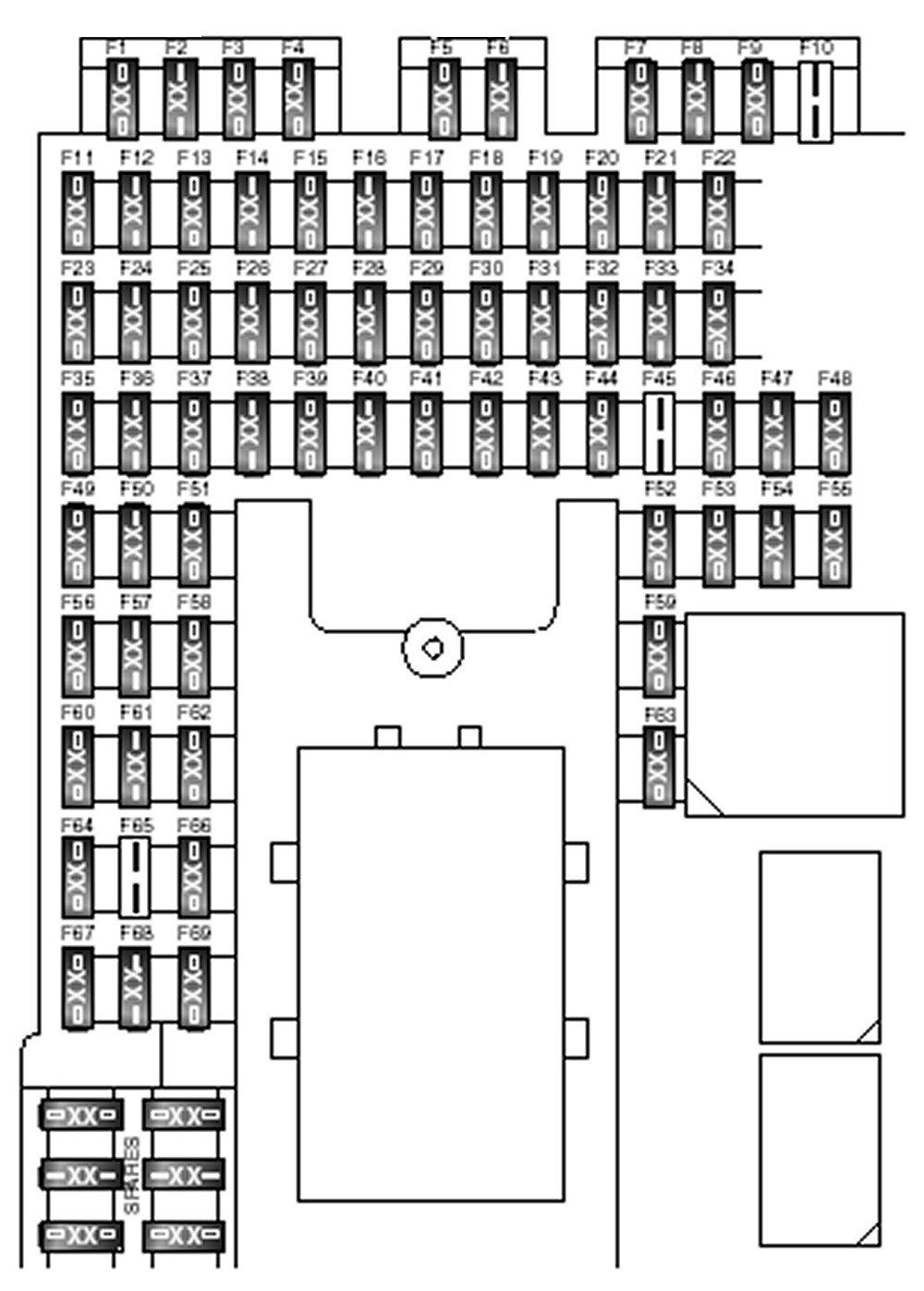

A label on the rear of the glovebox shows the circuits protected, the fuse values and their locations. They are also listed on the following page.

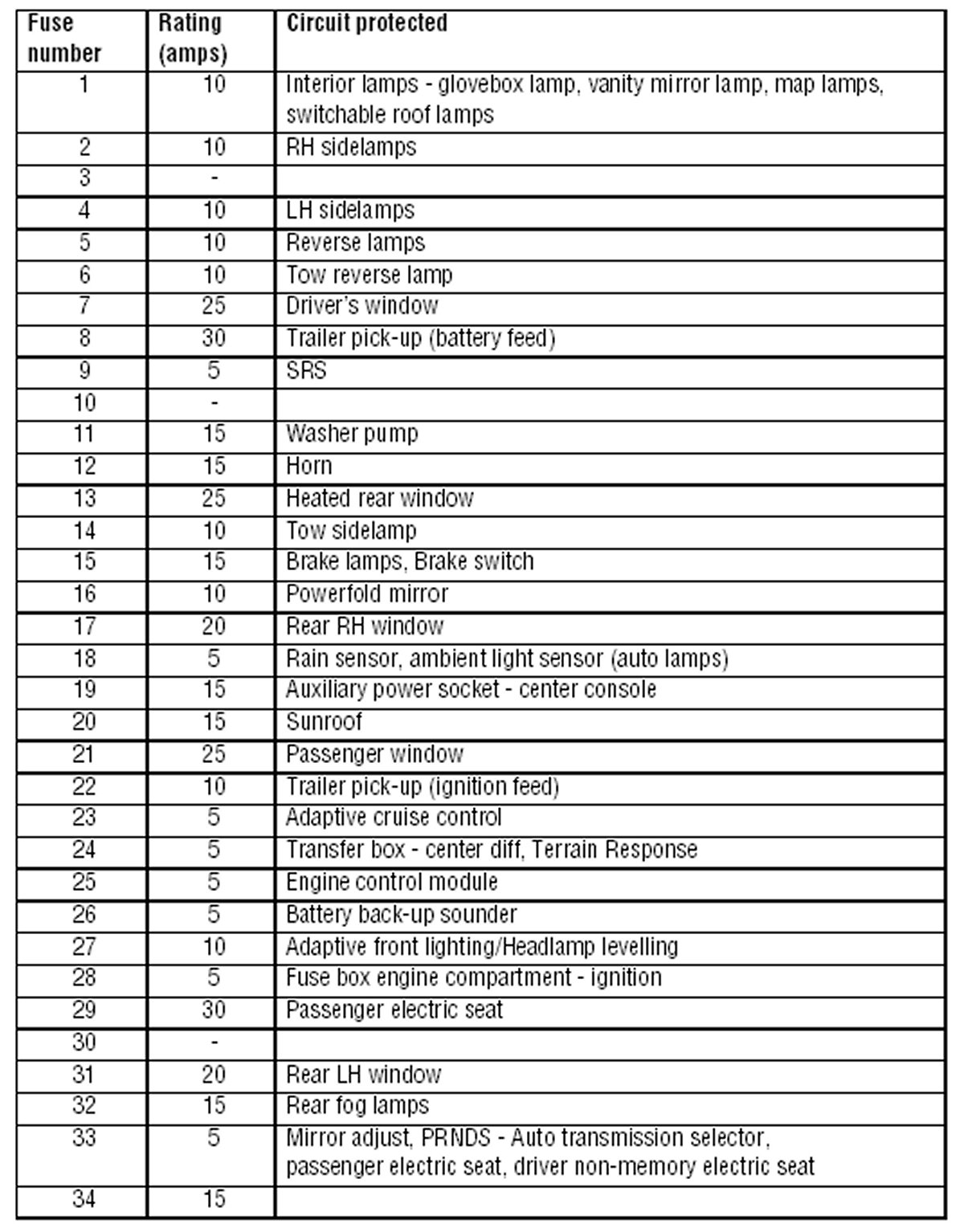

Fuses 1 - 34 Specifications:
Fuses 35 - 69 Specifications:
