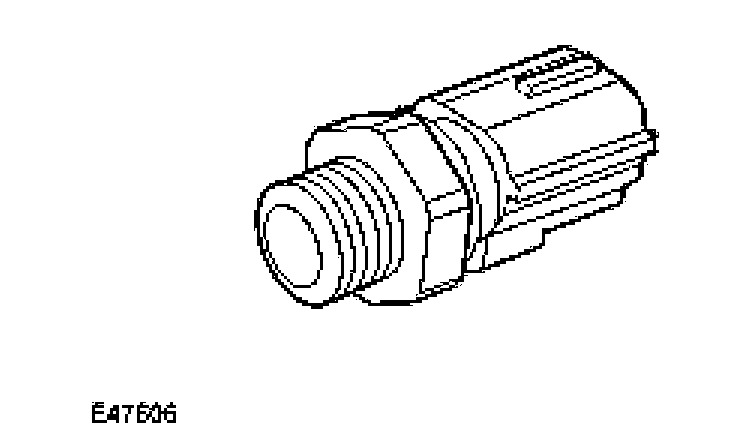

Fuel Rail Temperature Sensor



Fuel Rail Temperature Sensor





The fuel rail temperature sensor measures the temperature of the fuel in the fuel rail. This input is then used to deliver the correct quantity of fuel to the engine. Operating Range -40°C to 150°C. The fuel rail temperature sensor is fitted on the rear of the right hand bank (bank A) fuel rail. The sensor is an NTC sensor, which is connected to the ECM by two wires.
