Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure (MAP) Sensor

Service Repair No - 18.30.56

Removal
1. Disconnect the battery ground cable.
2. Remove the throttle body gasket.

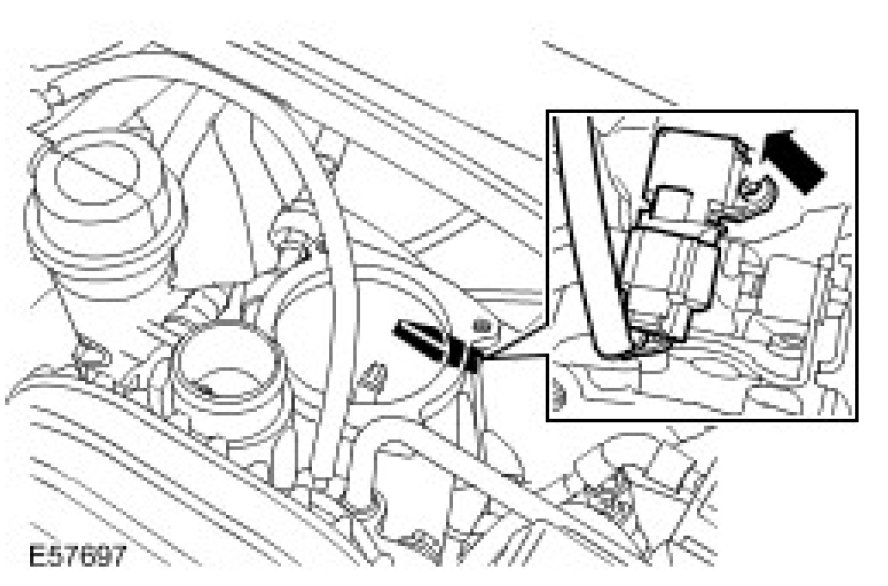

3. Remove the manifold absolute pressure (MAP) sensor.
^ Disconnect the electrical connector.
^ Remove the Allen screw.
^ Discard the O-ring seal.





Installation
1. Install the MAP sensor.
^ Clean the components.
^ Install a new O-ring seal.
^ Tighten the Allen screw to 3 Nm (2 ft. lbs.).
^ Connect the electrical connector.

2. Install the throttle body gasket.
3. Connect the battery ground cable.
