Oil Pressure Sensor: Service and Repair
Engine Oil Pressure (EOP) Sensor
Service Repair No - 12.60.50
Removal
1. Disconnect the battery ground cable.
CAUTION: Before the disconnection or removal of any components, ensure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

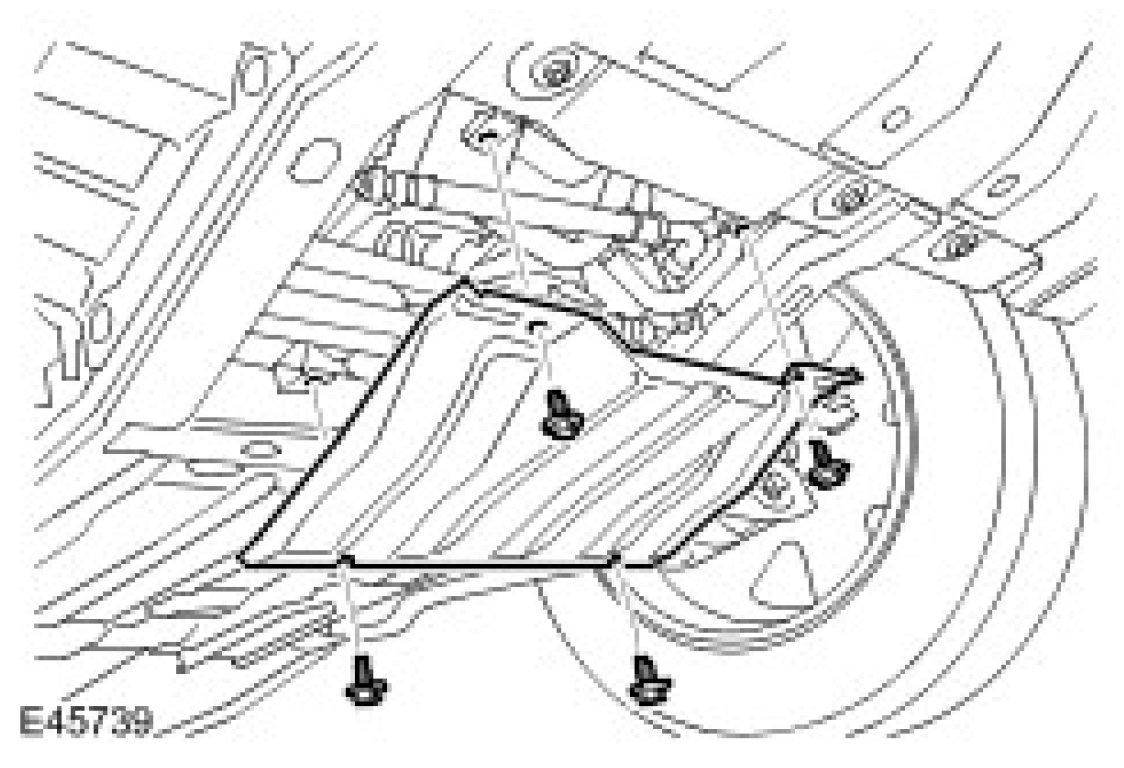

2. Remove the radiator access panel.
^ Remove the 4 bolts.

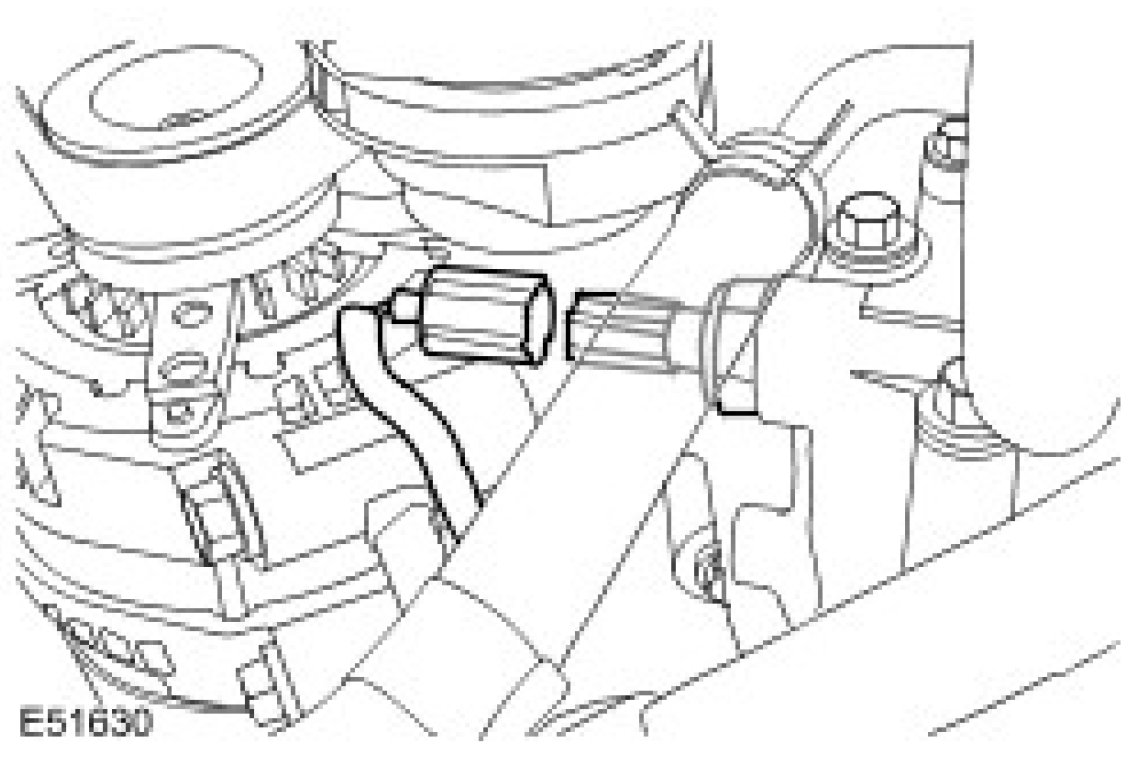

3. Remove the oil pressure sensor.
^ Disconnect the electrical connector.
^ Position a container to collect the fluid.
Installation
1. To install, reverse the removal procedure.
^ Tighten the oil pressure sensor to 12 Nm (9 ft. lbs.).
^ Tighten the 4 bolts to 10 Nm (7 ft. lbs.).
2. Check and top-up the engine oil.
