Ignition Switch

Ignition Switch

Service Repair No - 86.65.02

Removal

1. Fully extend the steering column for access.
2. Remove the steering column upper shroud.
^ Release the 6 clips.

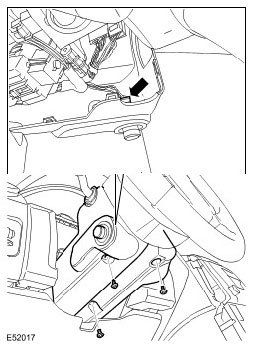

3. Remove the steering column lower shroud.
^ Remove the 3 Torx screws.
^ Disconnect the electrical connector.





4. CAUTION: The ignition key must be removed prior to the removal of the ignition switch.

Remove the ignition switch.
^ Disconnect the electrical connector.
^ Depress the 2 clips.





Installation

1. Install the ignition switch.
^ Secure with the clips.
^ Connect the electrical connector.

2. Install the steering column shrouds.
^ Connect the electrical connector.
^ Tighten the Torx screws.
^ Secure the clips.
