Front Fender Liner: Service and Repair

Fender Splash Shield

Service Repair No - 76.10.48

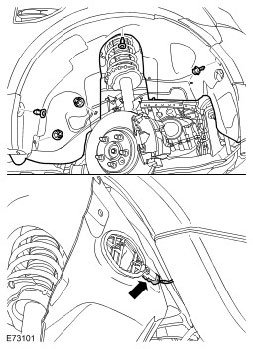

Removal

1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

2. Remove the front wheel.
3. Remove the fender splash shield extension panel.







4.







5. NOTE: Do not disassemble further if the component is removed for access only.







Installation

1. Install the tire pressure antenna.
2. Install the fender splash shield and tighten the Torx screw to 6 Nm (4 ft. lbs.).
3. Install the fender splash shield extension panel.
4. Install the front wheel.
