Air Duct: Service and Repair
Plenum ChamberRemoval 1.
Remove the RH wiper arm.
2.
Repeat the above procedure for the other wiper arm.
WARNING: This step requires the aid of another technician.
5.

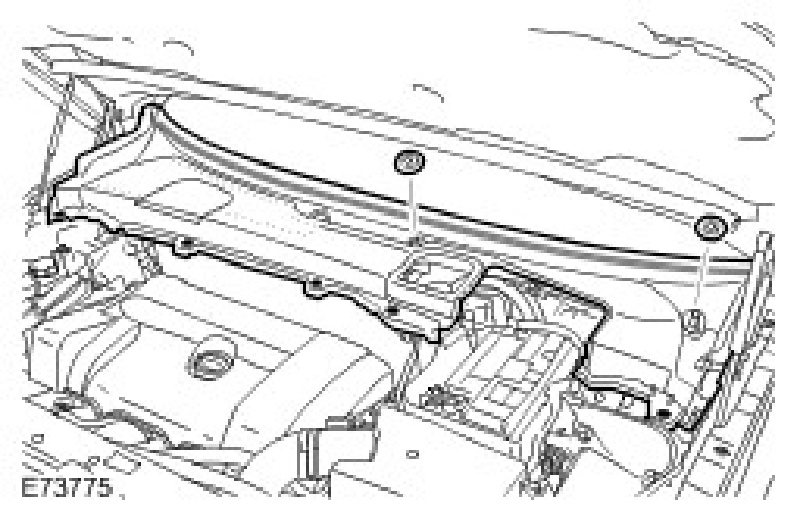

Remove the plenum chamber panel.
6.
NOTE: Do not disassemble further if the component is removed for access only.
Installation 1.
To install, reverse the removal procedure.
