Fog/Driving Lamp: Service and Repair

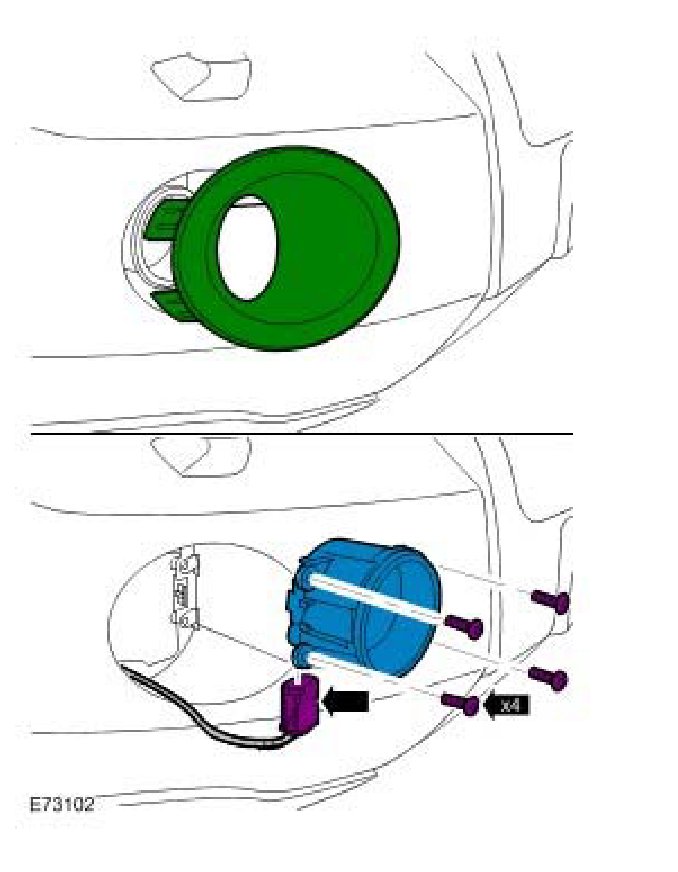

Front Fog Lamp LH
RemovalNOTE: Removal steps in this procedure may contain installation details.
1.
Torque:
2.5 Nm 2.
NOTE: Do not disassemble further if the component is removed for access only.
Installation 1.
To install, reverse the removal procedure.
2.
Check the fog lamp beam alignment.
