Headlamp: Service and Repair



Headlamp Assembly

Removal

WARNING: Vehicles fitted with Xenon headlamps, the following precautions must be observed.Failure to comply may result in exposure to ultra violet rays, severe electric shock, burns or the risk of explosion.Ensure the headlamps are switched off at all times.Eye and hand protection must be worn.Never switch on the lamps or test the bulbs with the lamp holder released from the headlamp.

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

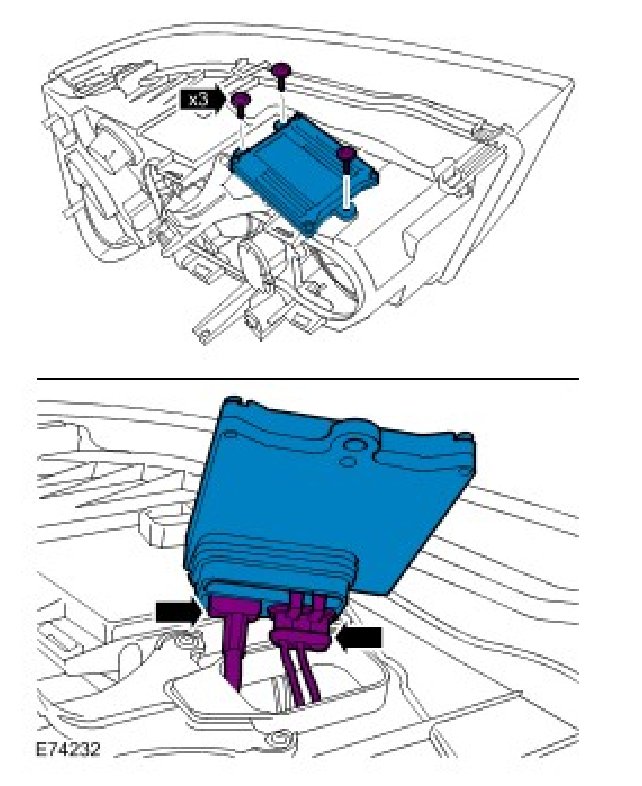

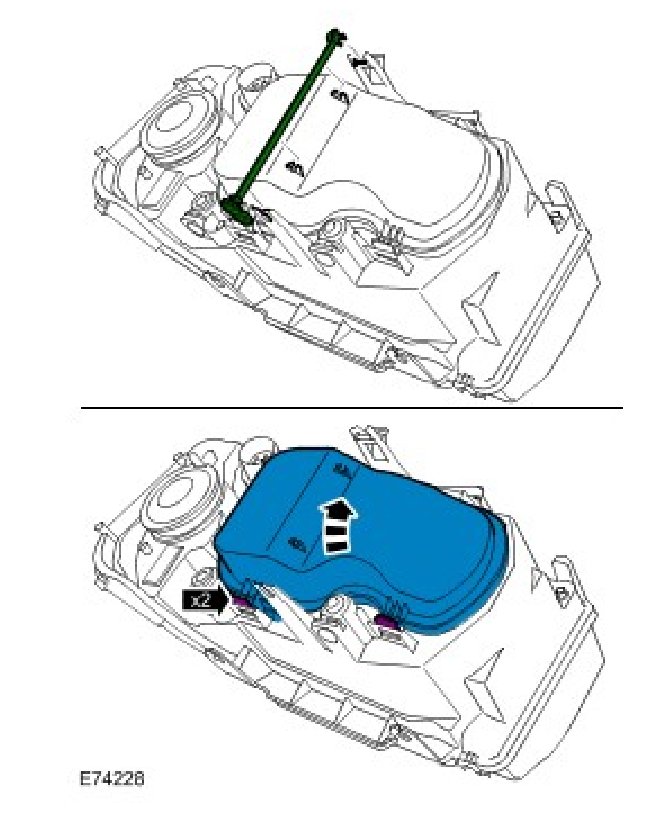

2. Torque: 4 Nm





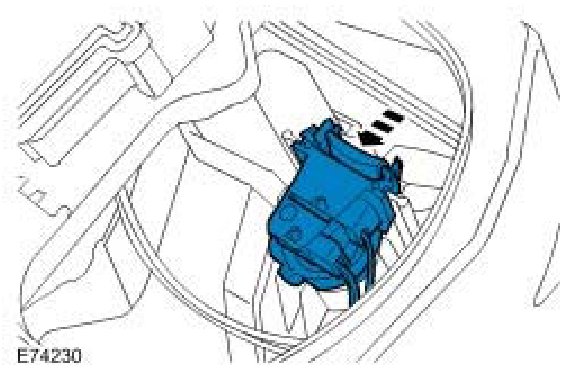

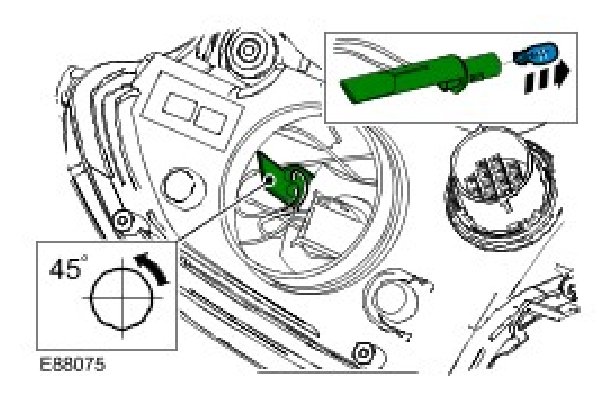

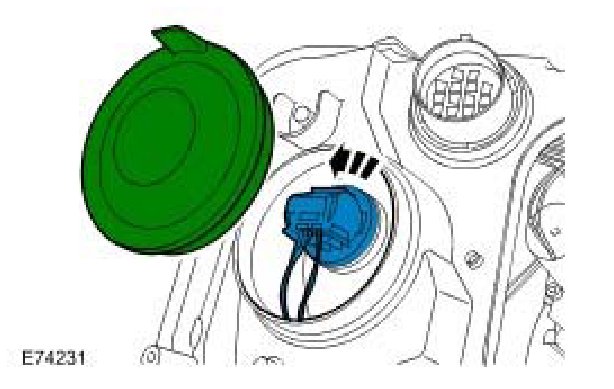

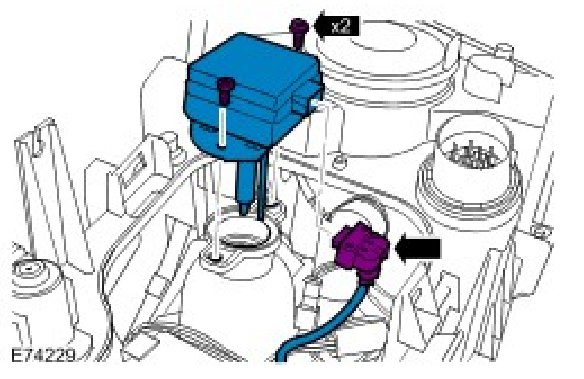

3. NOTE: Do not disassemble further if the component is removed for access only.

























Installation
1. To install, reverse the removal procedure.
2. Check the headlamp alignment and adjust if necessary.
