Accessory Drive Belt

Accessory Drive Belt

Removal

1. Remove the engine cover.
2. Remove the battery tray.
3. Remove the air cleaner assembly.

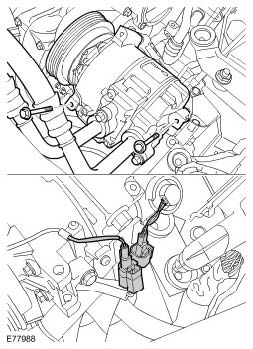

4. Remove the A/C compressor, upper support bracket.





5. Remove the A/C compressor, lower support bracket.





6. Release the accessory drive belt tension.





7. Release the A/C compressor and position aside.





8. CAUTION: Note the fitted position of the component prior to removal.

Release the PAS pump.





9. Remove the accessory drive belt.

Installation

1. Install the accessory drive belt.





2. NOTE: Make sure that the component is installed to the position noted on removal.

Install the PAS pump.
Torque:
25 Nm

3. Install the A/C compressor.

Torque:
25 Nm

4. Install the accessory drive belt.
5. Install the A/C compressor, lower support bracket.

Torque:
25 Nm

6. Install the A/C compressor, upper support bracket.

Torque:
M10. 45 Nm
M8. 25 Nm
M6. 10 Nm

7. Install the air cleaner assembly.
8. Install the battery tray.
9. Install the engine cover.
