Leak Detection Pump: Service and Repair



Fuel Tank Leakage Monitoring Pump

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

WARNING: Do not work on or under a vehicle supported only by a jack.Always support the vehicle on safety stands.

2. Raise and support the vehicle.

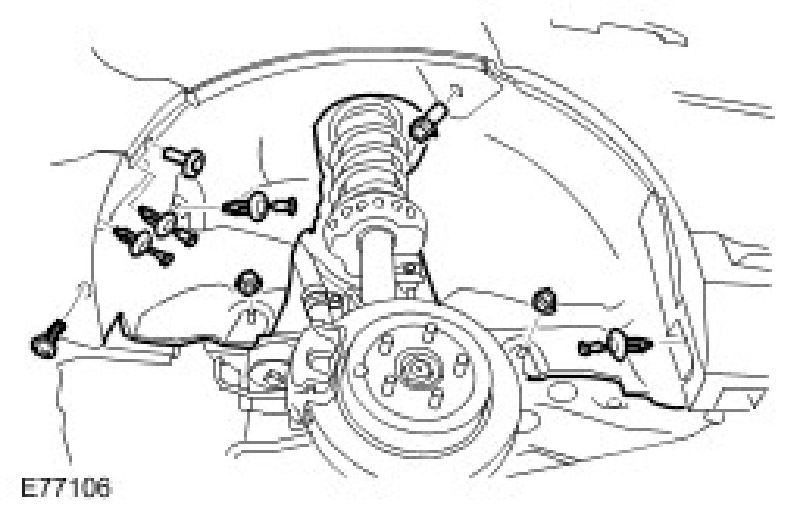

3. Remove the rear wheel.

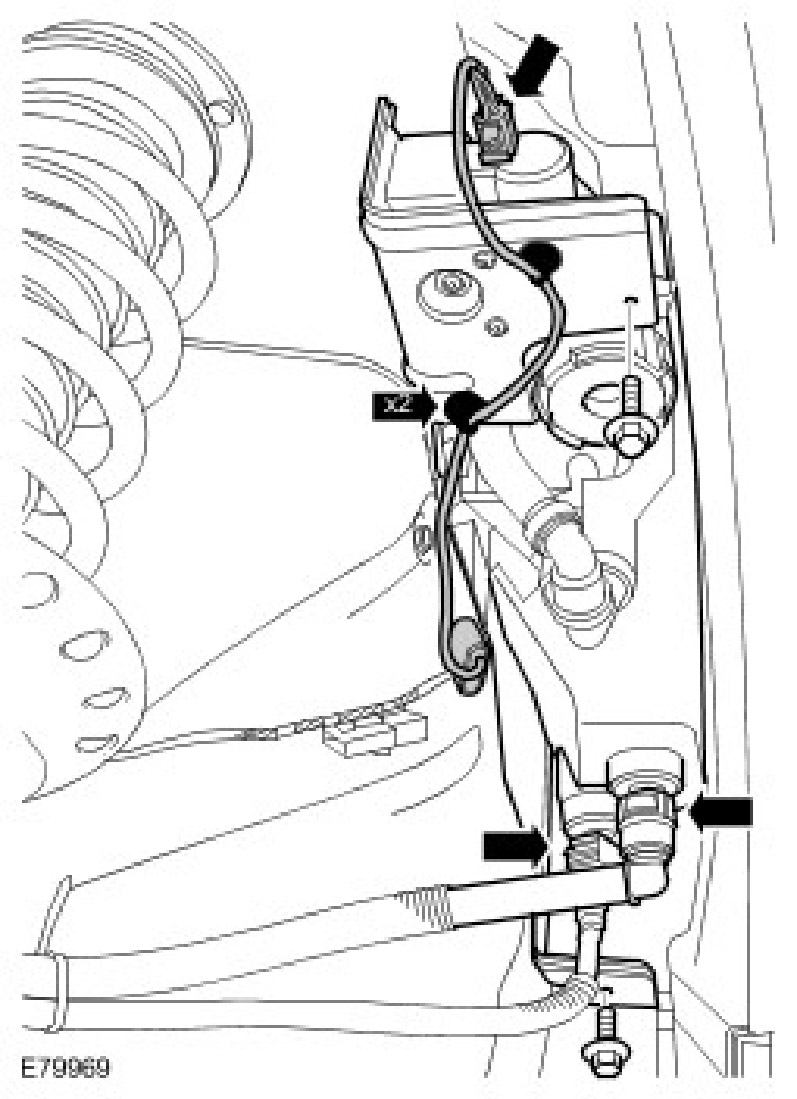

5. Torque: 10 Nm

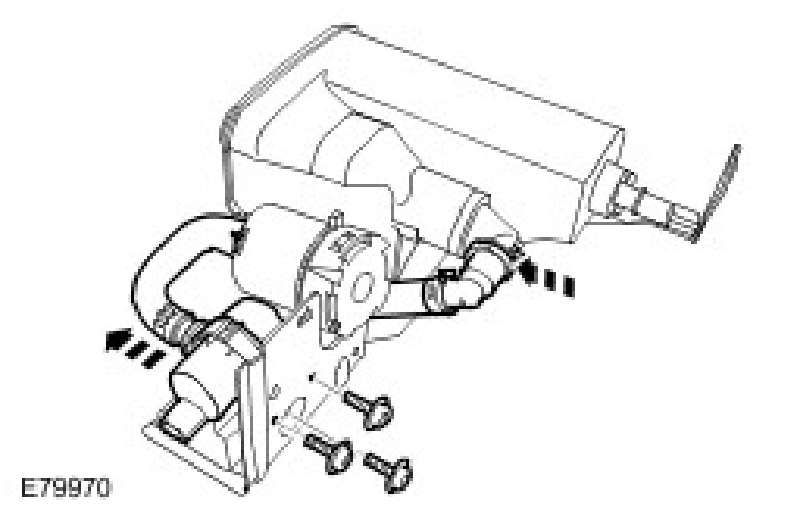

6. Torque: 10 Nm





Installation
1. To install, reverse the removal procedure.
