Windshield Washer Pump: Service and Repair



Windshield Washer Pump

Removal

1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

2. Remove the RH fender splash shield.
3. Drain the washer reservoir fluid.

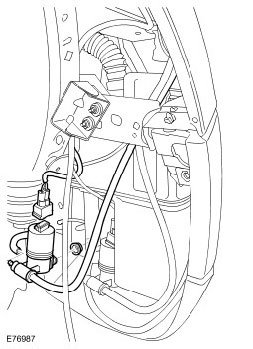

4. NOTE: Do not disassemble further if the component is removed for access only.

Remove the windshield washer pump.





Installation

1. To install, reverse the removal procedure.
