Driver Side Register

DRIVER SIDE REGISTER

Removal

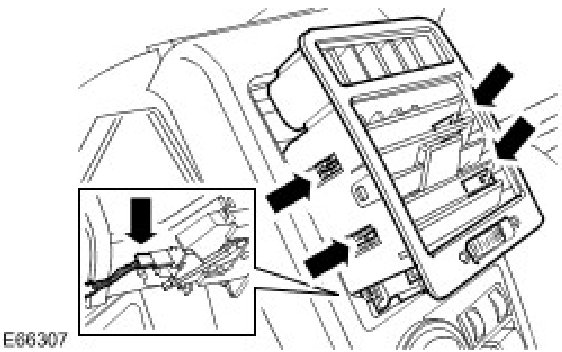

1. Remove the driver side register.
- Carefully release the 4 internal clips, apply an even outward pressure until the last clip is released.
- Disconnect the electrical connector.

CAUTION: Care must be taken to avoid damaging the driver side register internal components.

NOTE: Left-hand shown, right-hand similar.







Installation
1. Install the driver side register.
- Connect the electrical connector.
- Position and secure the clips.
