Register

Register

Removal
1. Remove the floor console stowage compartment lid.

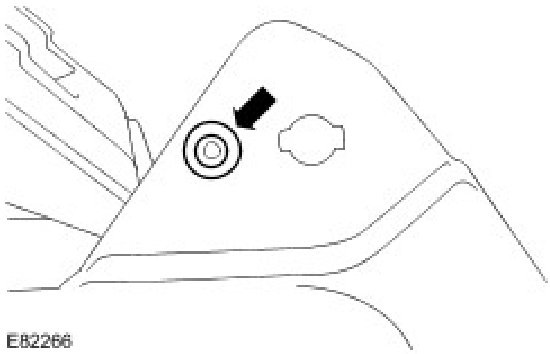

2. Remove the floor console stowage compartment lid damper sleeve.







NOTE: Floor console shown removed for clarity.

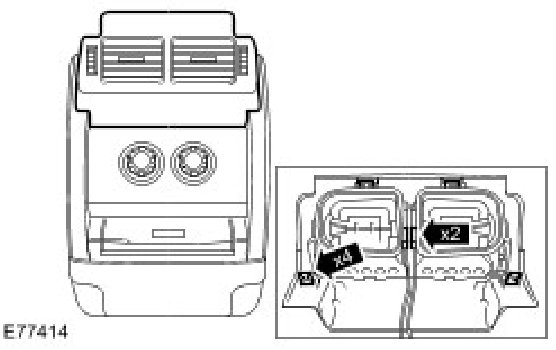

3. Remove the register.
- Carefully release the 4 clips.
- Disconnect the 2 electrical connectors.







Installation
1. Install the register.
- Connect the 2 electrical connectors.
- Secure the 4 clips.

2. Install the floor console stowage compartment lid damper sleeve.
3. Install the floor console stowage compartment lid.
