Condenser Fan: Service and Repair

Condenser Fan - 4.2L

Removal
1. Disconnect the battery ground cable.
2. Remove the hood latch panel.
3. Remove the radiator grille support.

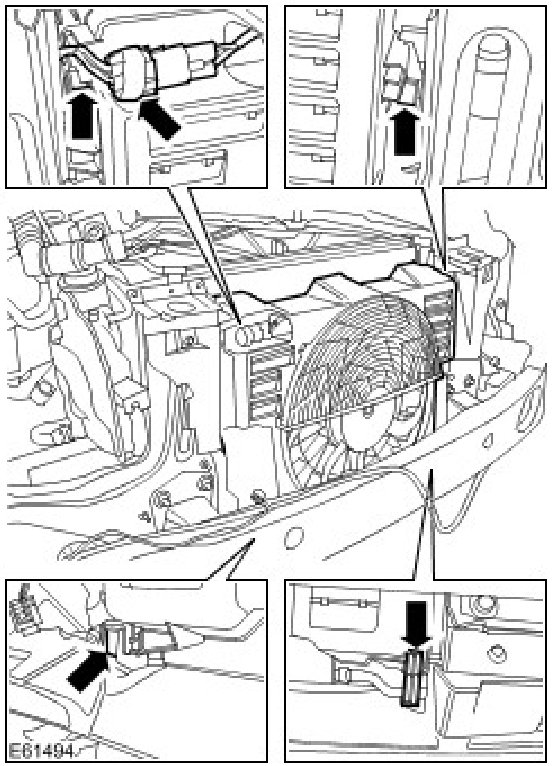

4. Remove the condenser cooling fan.
- Disconnect the electrical connector.
- Release from the 4 clips.







Installation
1. Install the condenser cooling fan.
- Secure with the clips.
- Connect the electrical connector.

2. Install the radiator grille support.
3. Install the hood latch panel.
4. Connect the battery ground cable.
