Coolant Temperature Sensor/Switch (For Computer)
>>
Sensor-Engine Coolant-Temperature (ECT)-PV8SC
Sensor-Engine Coolant-Temperature (ECT)-PV8SC
Sensor-Engine Coolant-Temperature (ECT)-PV8SC

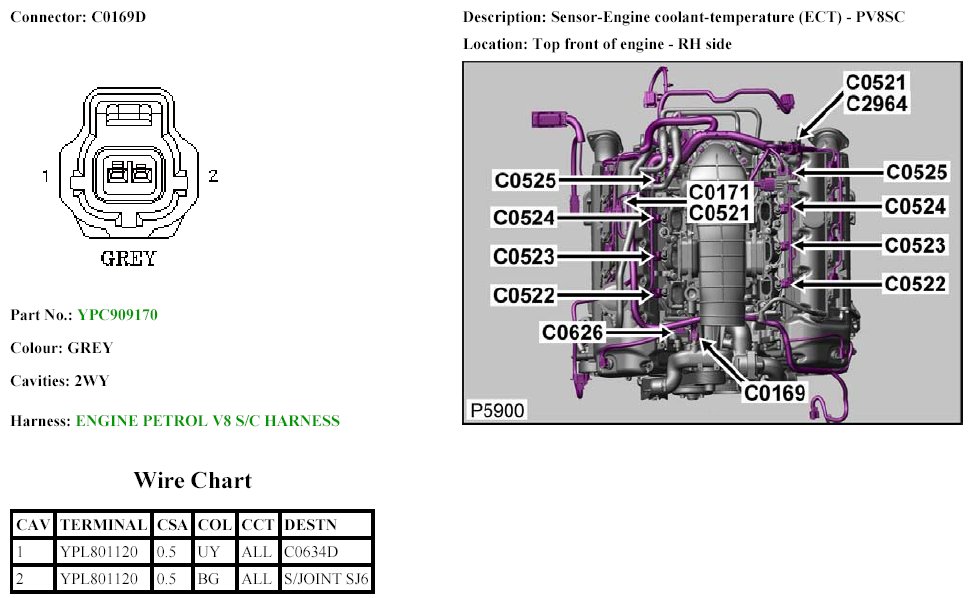

C0169D:
