Engine Control-Module (ECM)-PV8SC

Engine Control-Module (ECM)-PV8SC

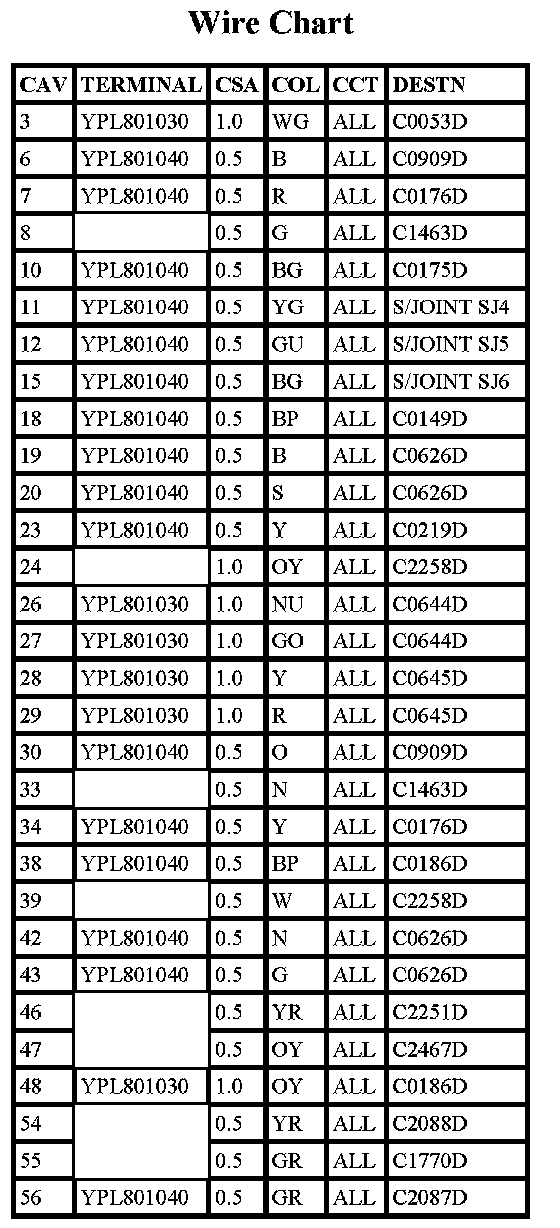

C0634D (Part 1):

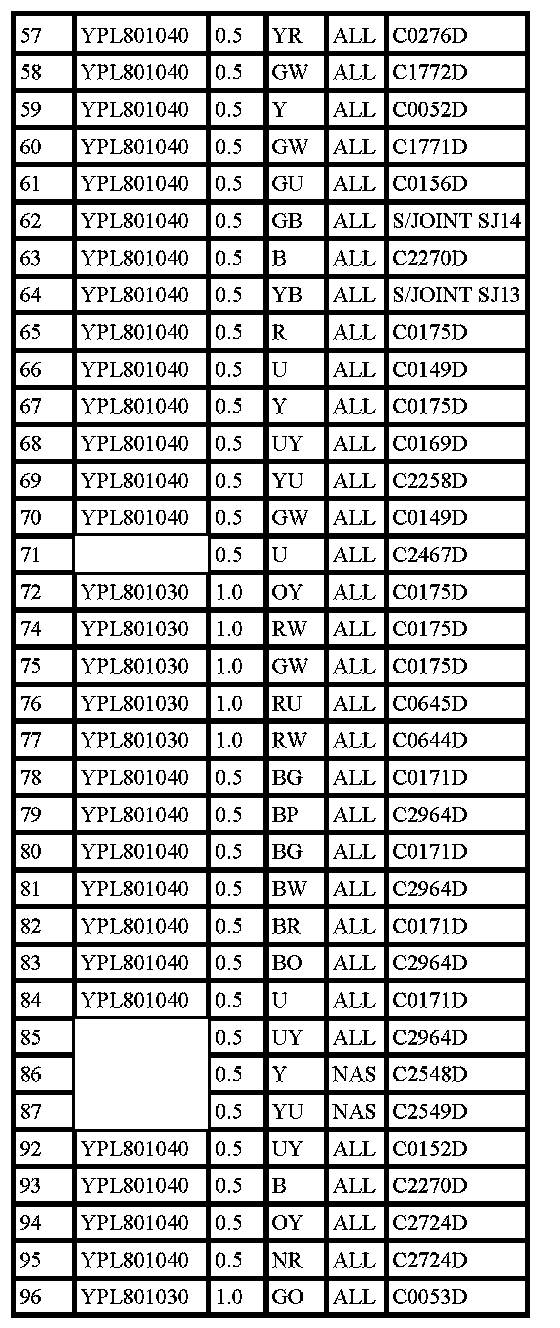

C0634D (Part 2):

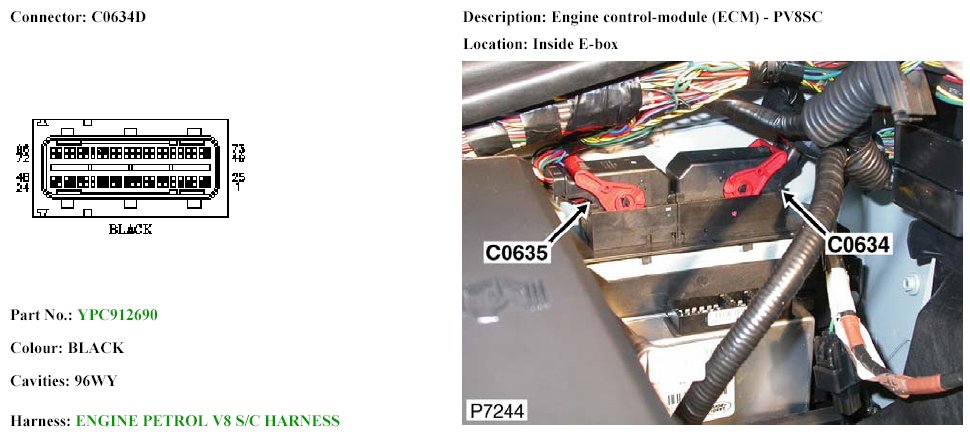

C0634D (Part 3):
