Operation CHARM
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2009
>>
Range Rover Sport (LS) V8-4.2L SC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Module HVAC
>>
Locations
>>

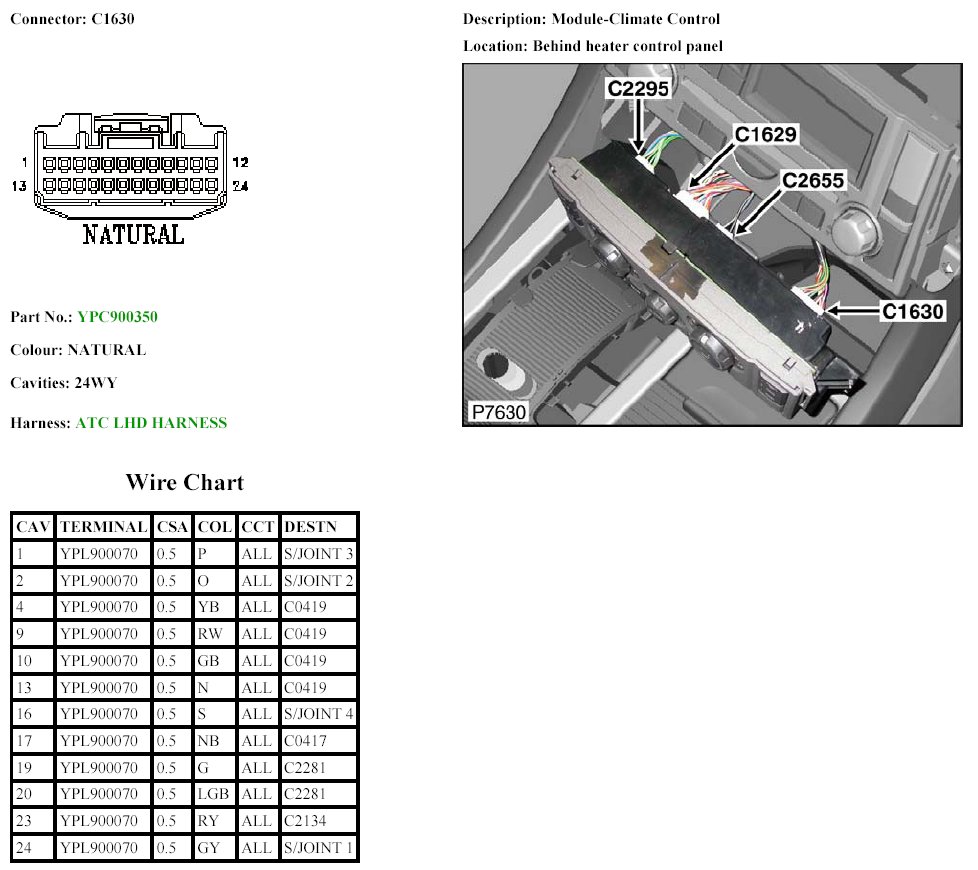

Connector Locations
>>
Module-Climate Control
Module-Climate Control
Module-Climate Control
C1630:
