Range Rover (LM) V8-5.0L SC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Transfer Case

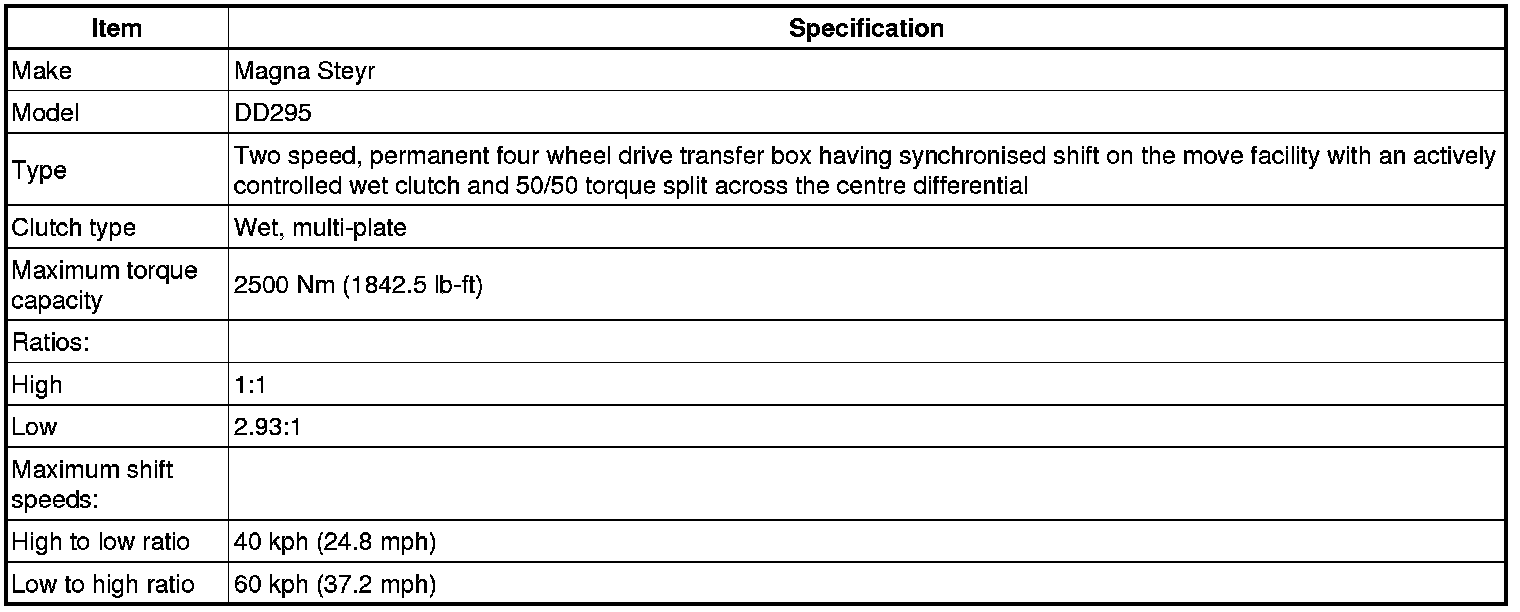

Transfer Case

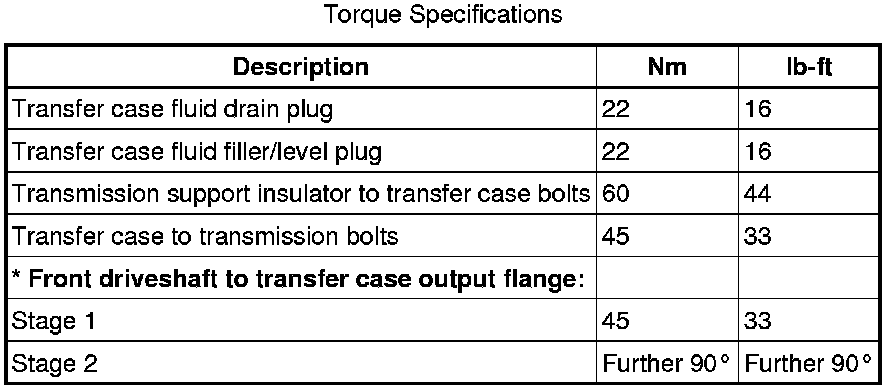

Specifications
* New 'patched' Torx bolts must be installed
