Distance Sensor: Adjustments

Speed Control Sensor Adjustment

NOTE:
Removal steps in this procedure may contain installation details.

NOTE:
This procedure details how to adjust the speed control sensor vertically. There is no horizontal adjustment required.
For additional information, refer to Front Bumper Cover Front Bumper Cover

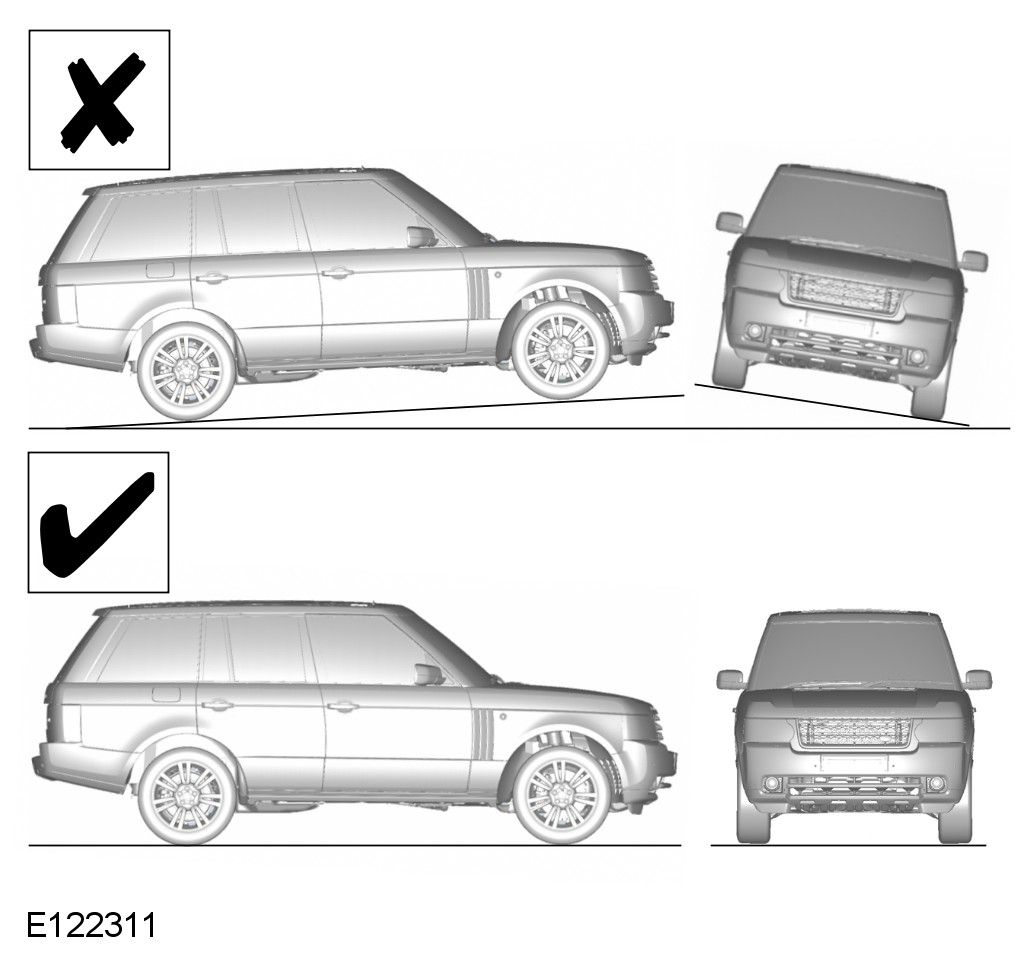

CAUTION: Drive the vehicle on to a flat, level surface.
1 Set the air suspension ride height to the STANDARD setting.





NOTE:
Using the special tool, check the speed sensor is level, (+/- 0.5 degree).

NOTE:
Make sure that the special tool is installed to the front of the speed control sensor as it is shown in the illustration to check the level.

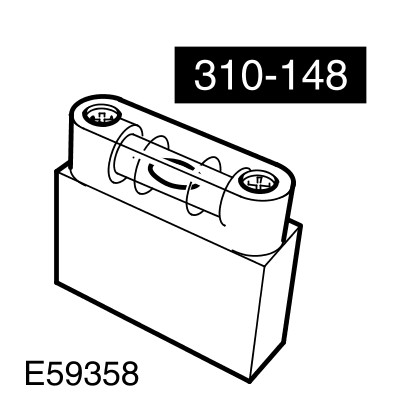

Special Service Tool




Setting Tool, Speed Control, 310-148





NOTE:
The speed sensor has no mechanical horizontal adjustment.

NOTE:
Rotate the vertical adjuster.
2 Using the special tool, set the speed control sensor.
For additional information, refer to Front Bumper Cover Front Bumper Cover
