Front Drive Axle/Differential

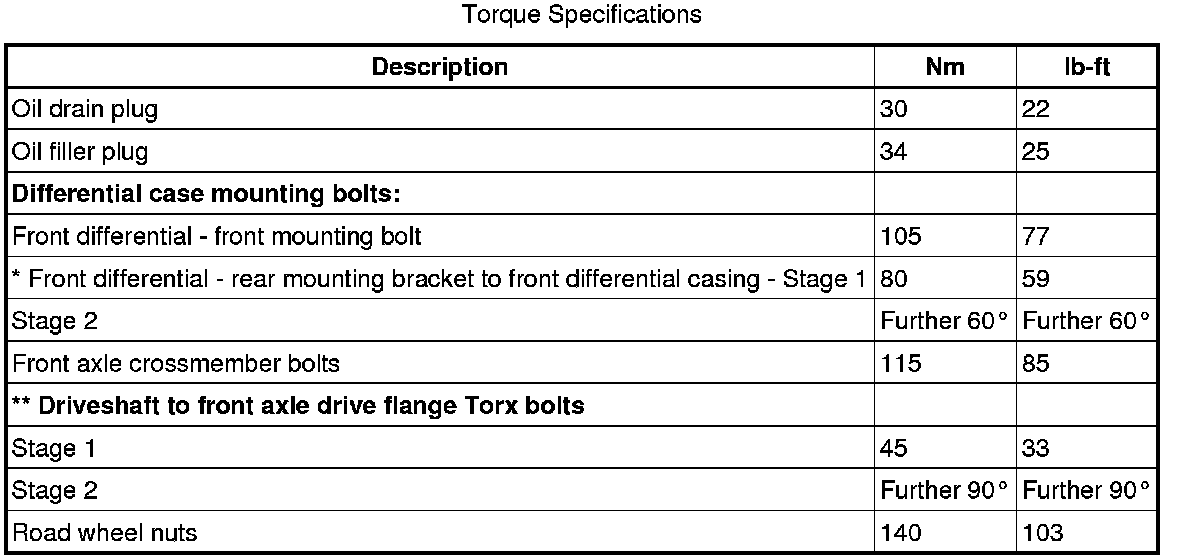

Specifications











* New bolts must be installed
** New 'Patchlok' Torx bolts must be installed
