Land Rover
>>
2012
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Distance Sensor
>>

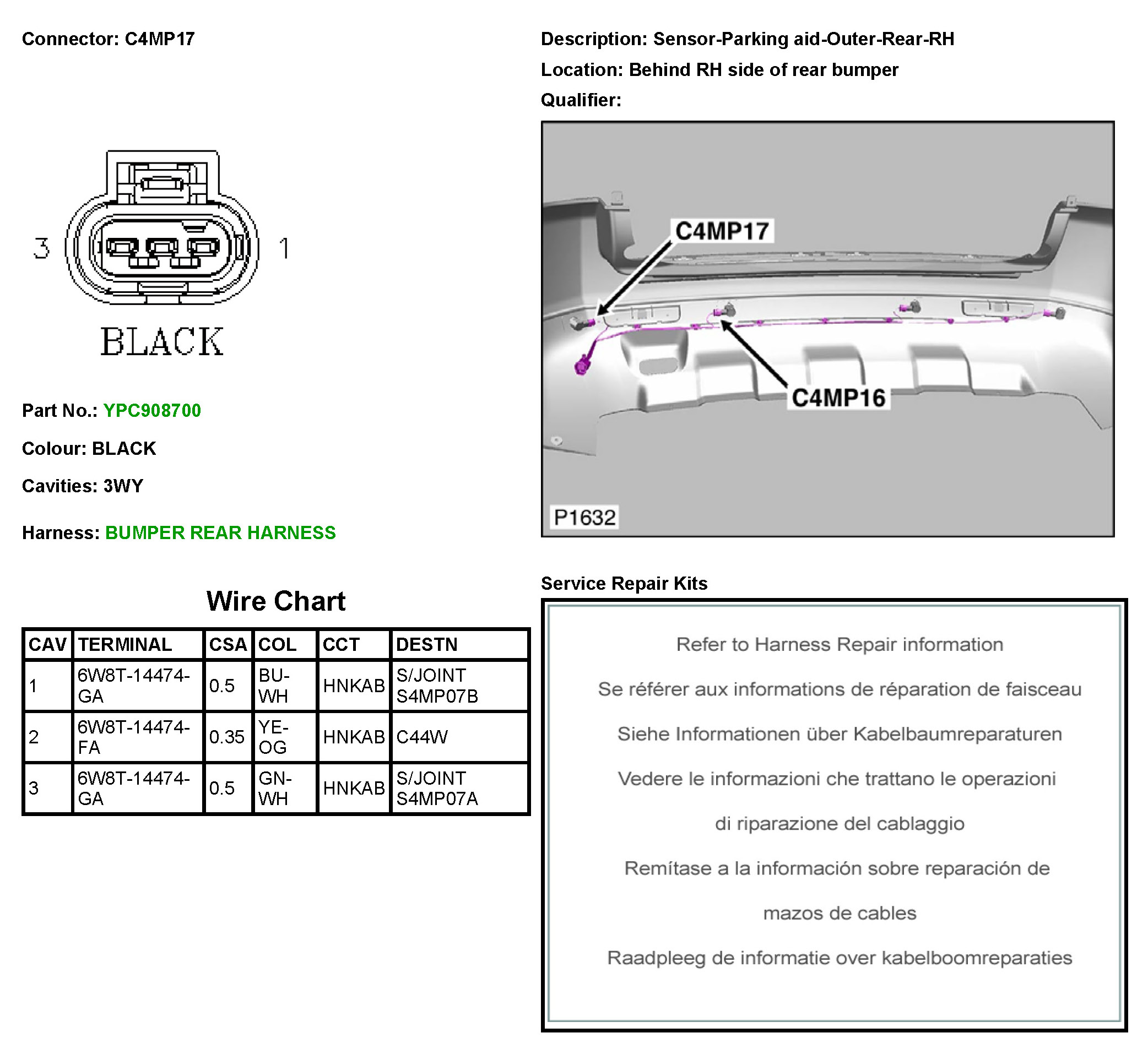

C4MP17 Sensor-Parking Aid-Outer-Rear-RH
C4MP17 Sensor-Parking Aid-Outer-Rear-RH
C4MP17
