Home >> Land Rover >> 2012 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch >> C0773 Switch Pack-Seat-Passenger

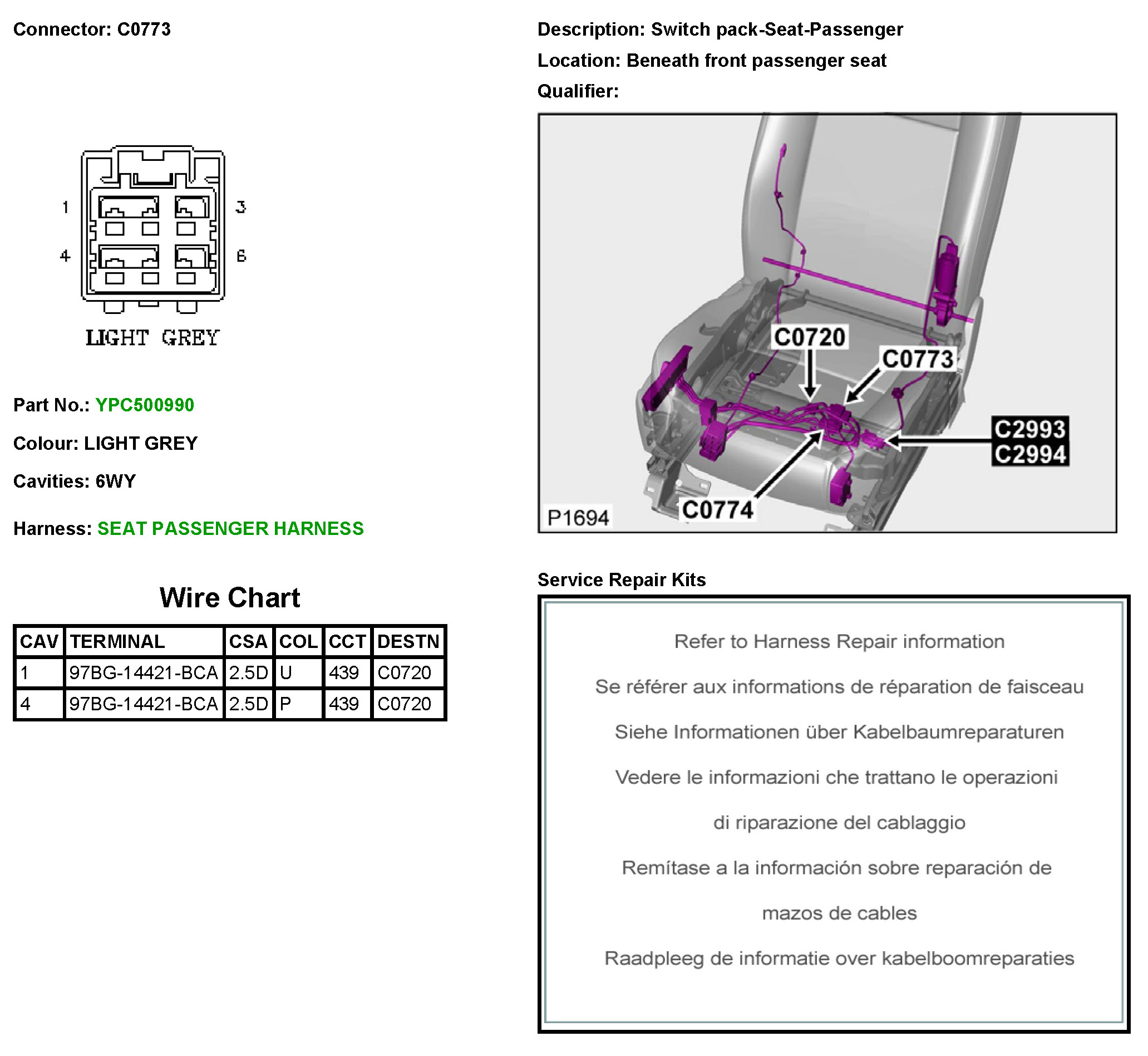

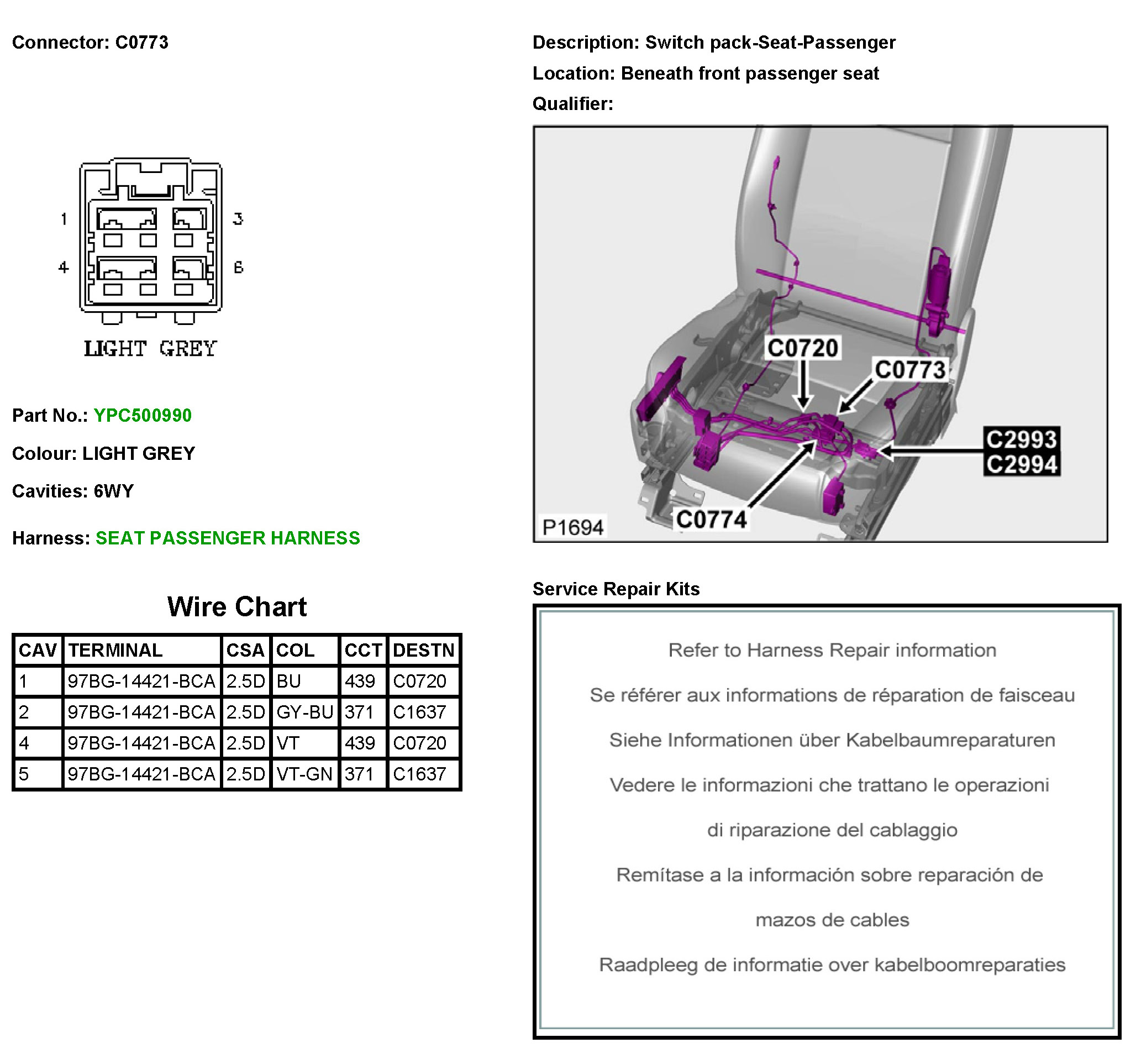

C0773 Switch Pack-Seat-Passenger



C0773
