Home >> Land Rover >> 2012 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> C6PW19A Switch-Window-Passenger Door

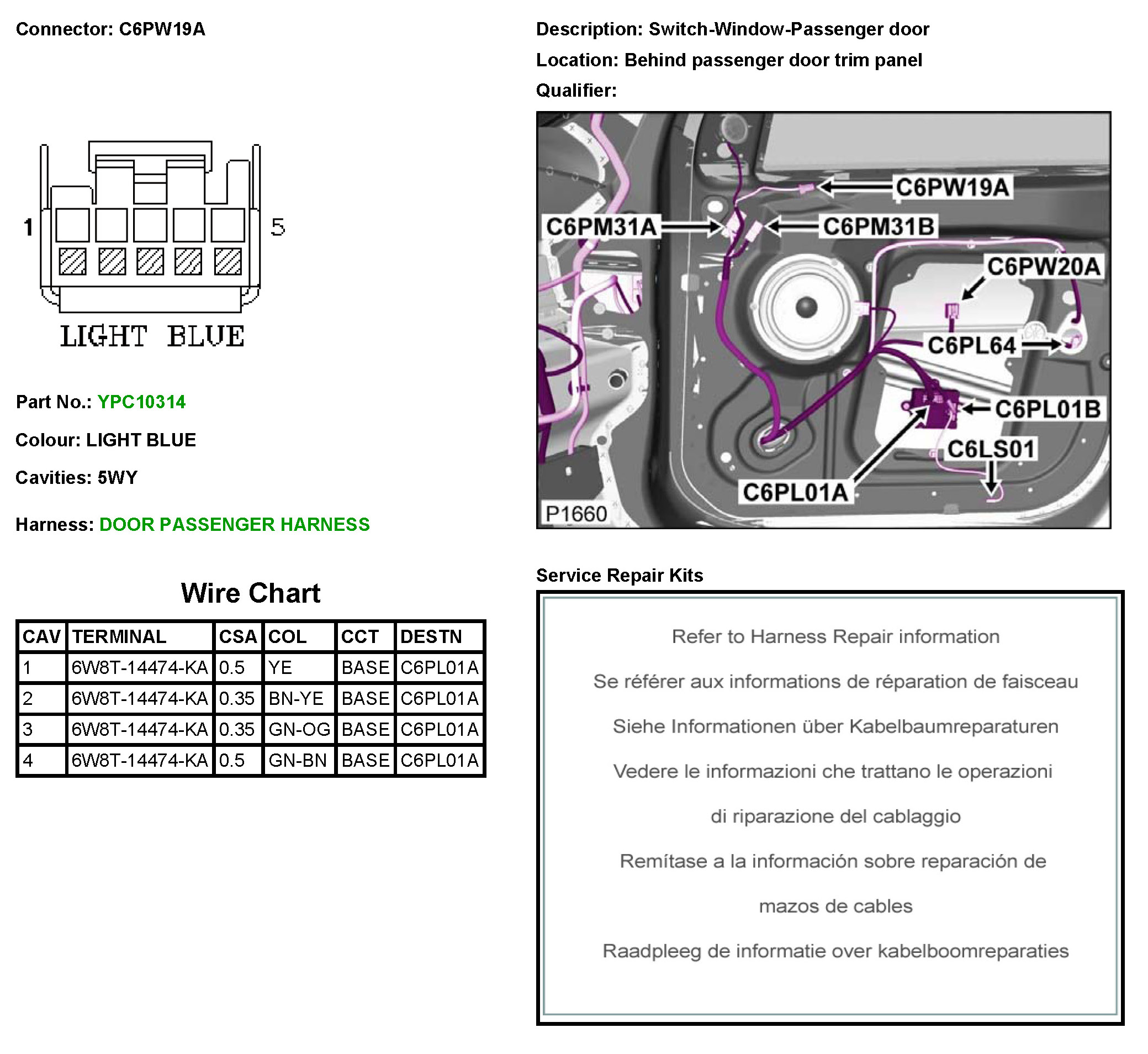

C6PW19A Switch-Window-Passenger Door



C6PW19A
