Symptom Related Diagnostic Procedures

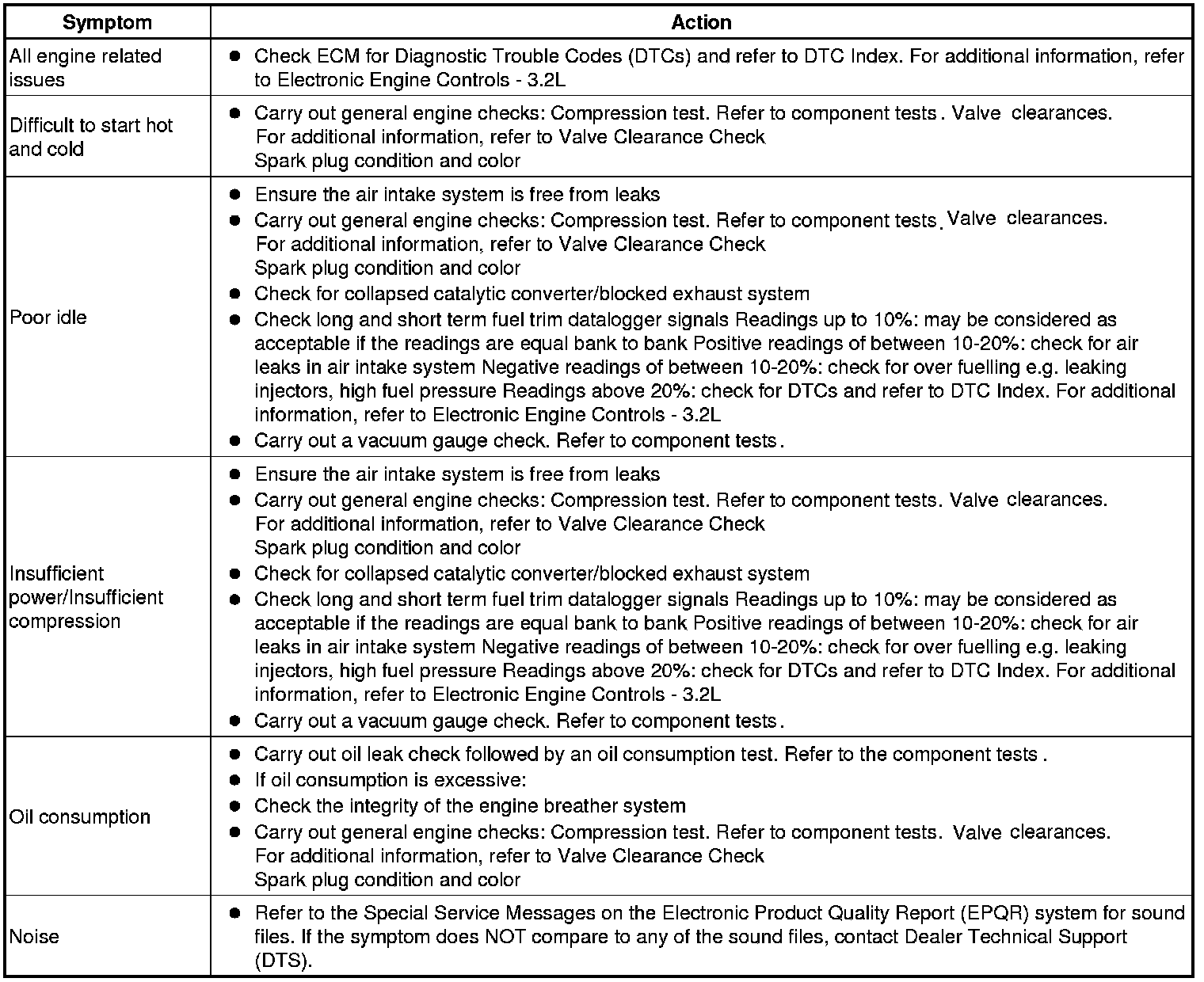

Symptom Chart

NOTE:
If an engine is suspect, when the vehicle remains under the Manufacturers warranty refer to the Warranty Policy and Procedure manual (section B1.2), or determine if any prior approval programme is in operation, prior to the installation of a new engine.

NOTE:
Due to the possibility of loose carbon, that has become trapped between the valve face and seat, effecting the pressure readings, when carrying out a compression test and some cylinders are found to have low pressures, install the spark plugs, road test the vehicle and re-test the suspect cylinders. If the correct pressures are restored, no further action is required.





Electronic Engine Controls - 3.2L Testing and InspectionValve Clearance Check Testing and InspectionValve Clearance Check Testing and InspectionElectronic Engine Controls - 3.2L Testing and InspectionValve Clearance Check Testing and InspectionElectronic Engine Controls - 3.2L Testing and InspectionValve Clearance Check Testing and Inspection
