Canister Purge Control Valve: Service and Repair

Evaporative Emission Canister Purge Valve
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
Take care not to disconnect the purge line from the rear of the intake manifold, when removing the purge valve.

NOTE:
Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.
1 Raise and support the vehicle.
2 Remove the engine undershield.
For additional information, refer to Engine Undershield Engine Undershield

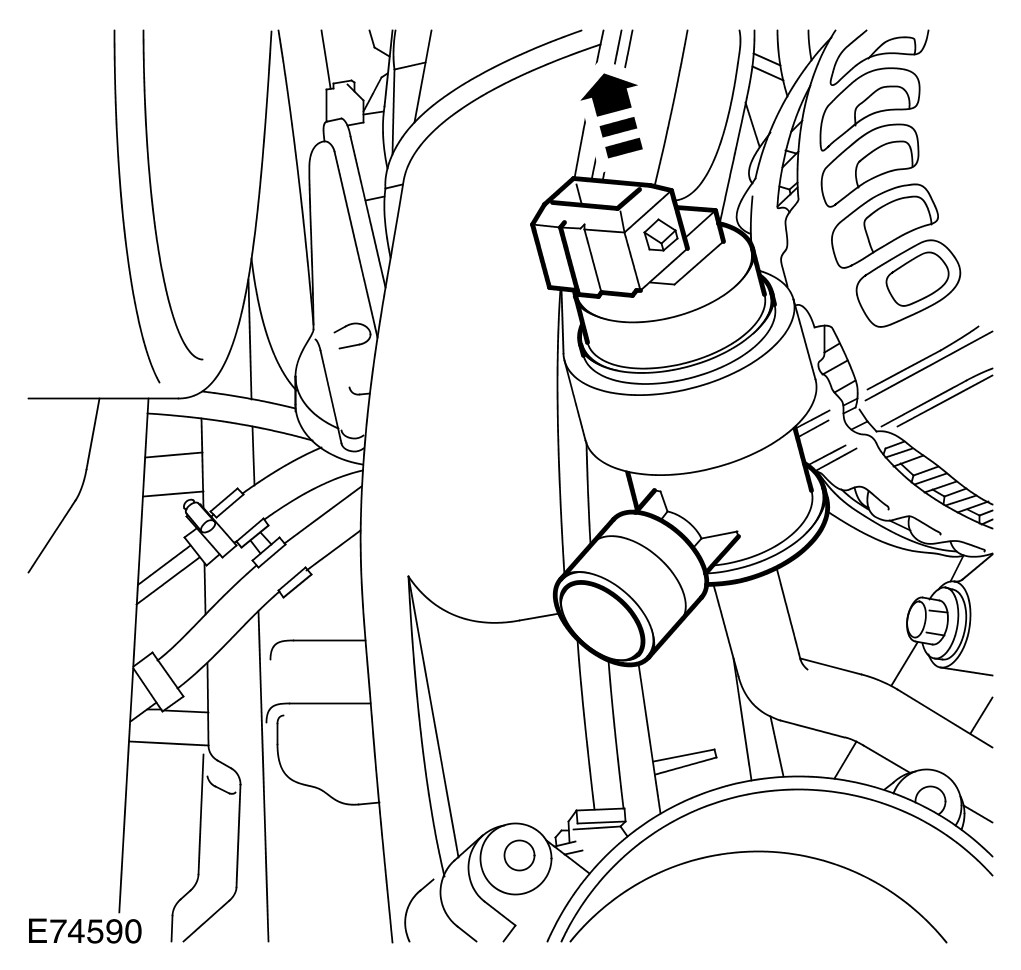

3 Remove the clip.

Installation
1 To install, reverse the removal procedure.
