Differential Support Insulator

Differential Support Insulator
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

WARNING: Make sure to support the vehicle with axle stands.
1 Raise and support the vehicle.
2 Remove the exhaust system.
For additional information, refer to Exhaust System Service and Repair

WARNING: Make sure to support the vehicle with axle stands.
3 Support the rear differential using a transmission jack.





CAUTION: Mark the components to aid installation.
Discard the bolts.





Installation

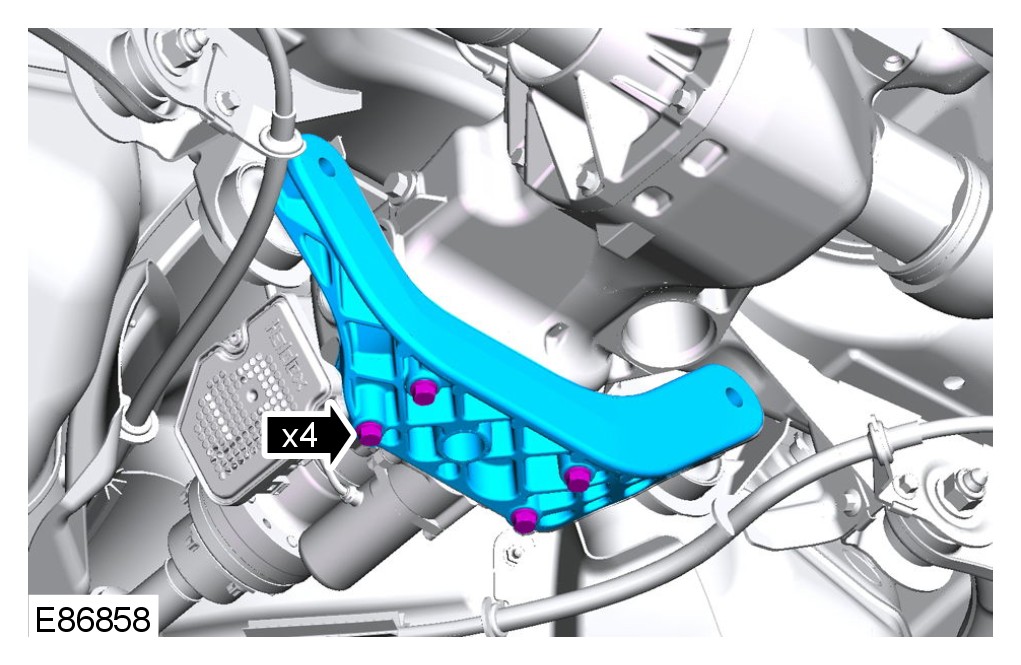

1 Install the rear differential insulator to the rear differential.
Torque to: 35 Nm

CAUTION: Make sure that new bolts are installed.

CAUTION: Make sure that the installation marks are aligned.

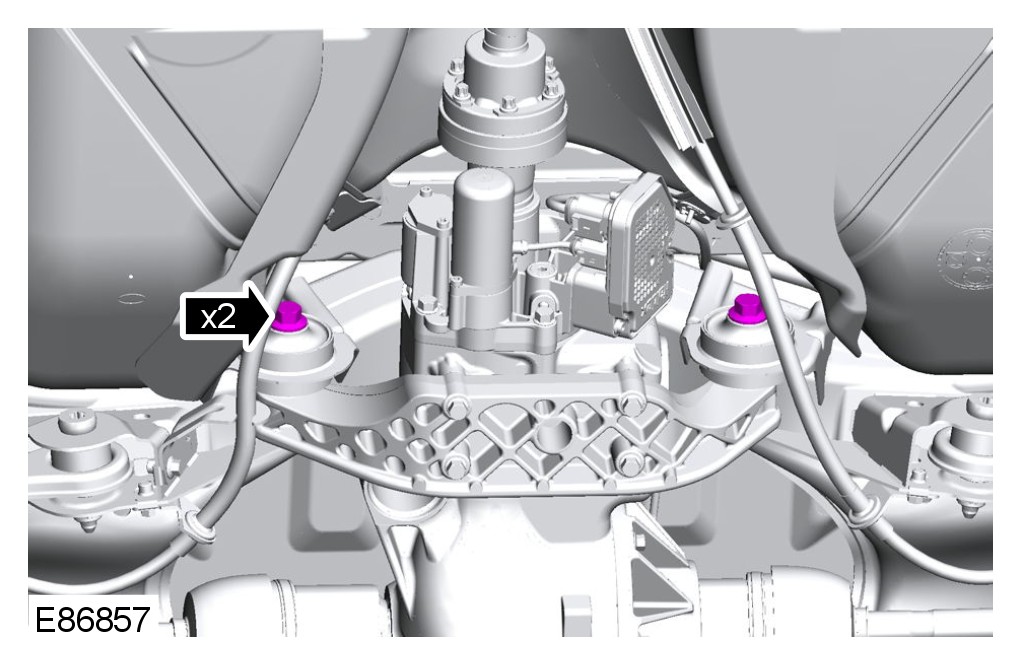

2 Install the rear differential front bush retaining bolts.
Torque to: 175 Nm
3 Install the exhaust system.
For additional information, refer to Exhaust System Service and Repair
