Alignment: Service and Repair

Four-Wheel Alignment
1 Check the geometry specifications.
For additional information, refer to Specifications Suspension System Specifications
2 Check the tie rod ends, suspension joints, wheel bearings and wheels and tires for damage, wear and free play.
3 Check and adjust tire pressures.
4 Position the vehicle on a calibrated, level, vehicle lift.
5 Release the vehicle parking brake.
6 Using only four wheel alignment equipment approved by Land Rover, check and adjust the wheel alignment.

WARNING: Make sure to support the vehicle with axle stands.
7 Raise and support the vehicle.

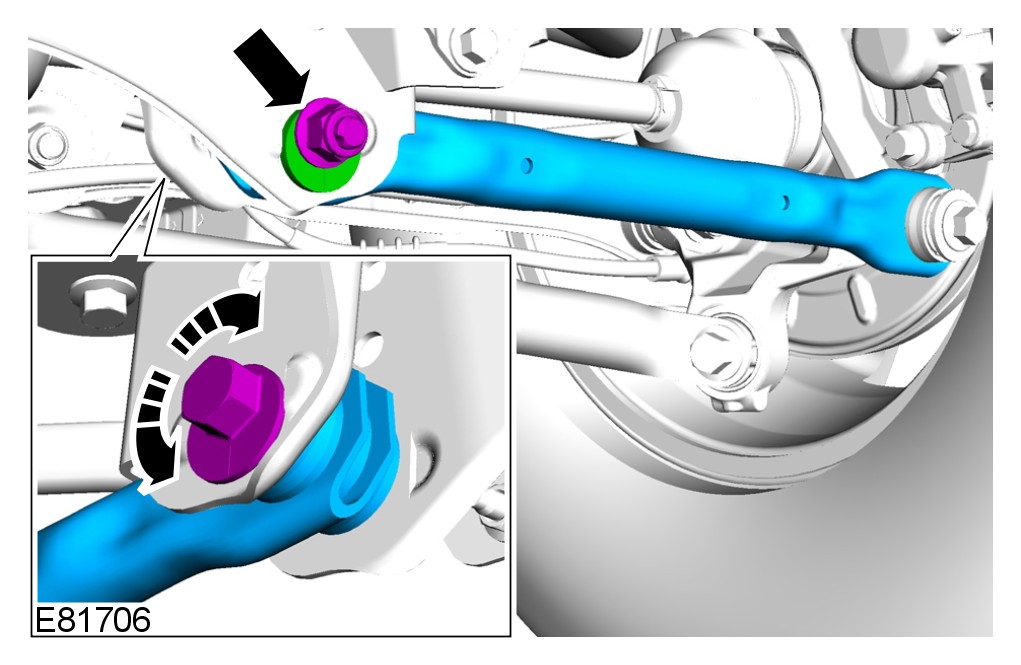

8 Adjust the rear toe.
Torque to: 175 Nm
9 Repeat the rear toe measurement.

10 Align the steering to straight ahead.

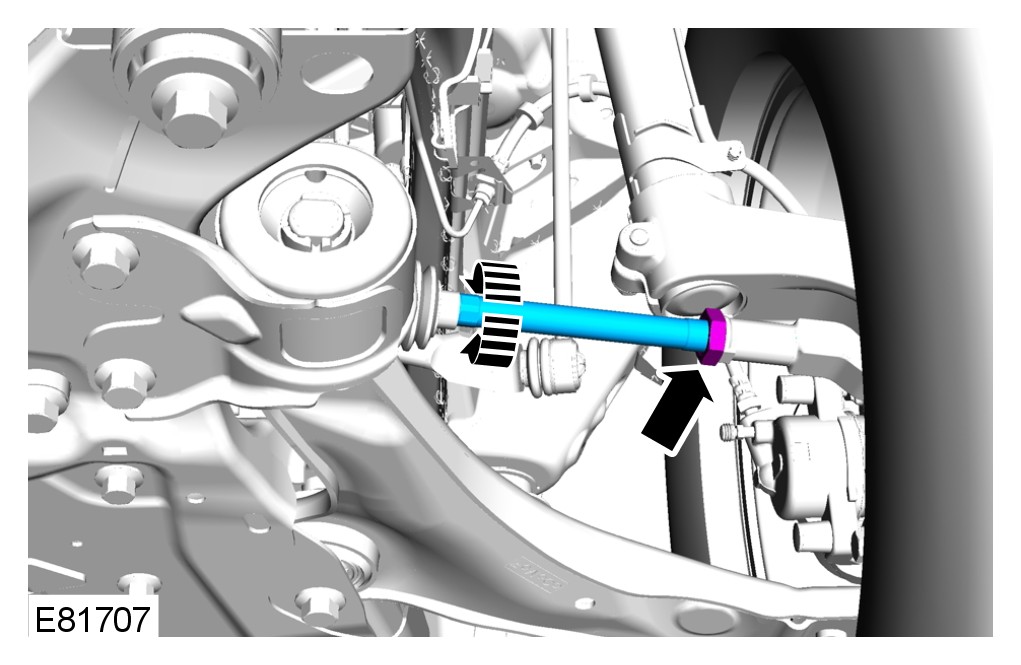

11 Adjust the front toe.
Torque to: 100 Nm

12 Check, and if necessary, repeat the wheel alignment procedure until the correct values are obtained.

13 Using the Land Rover approved diagnostic system, calibrate the steering angle sensor.
