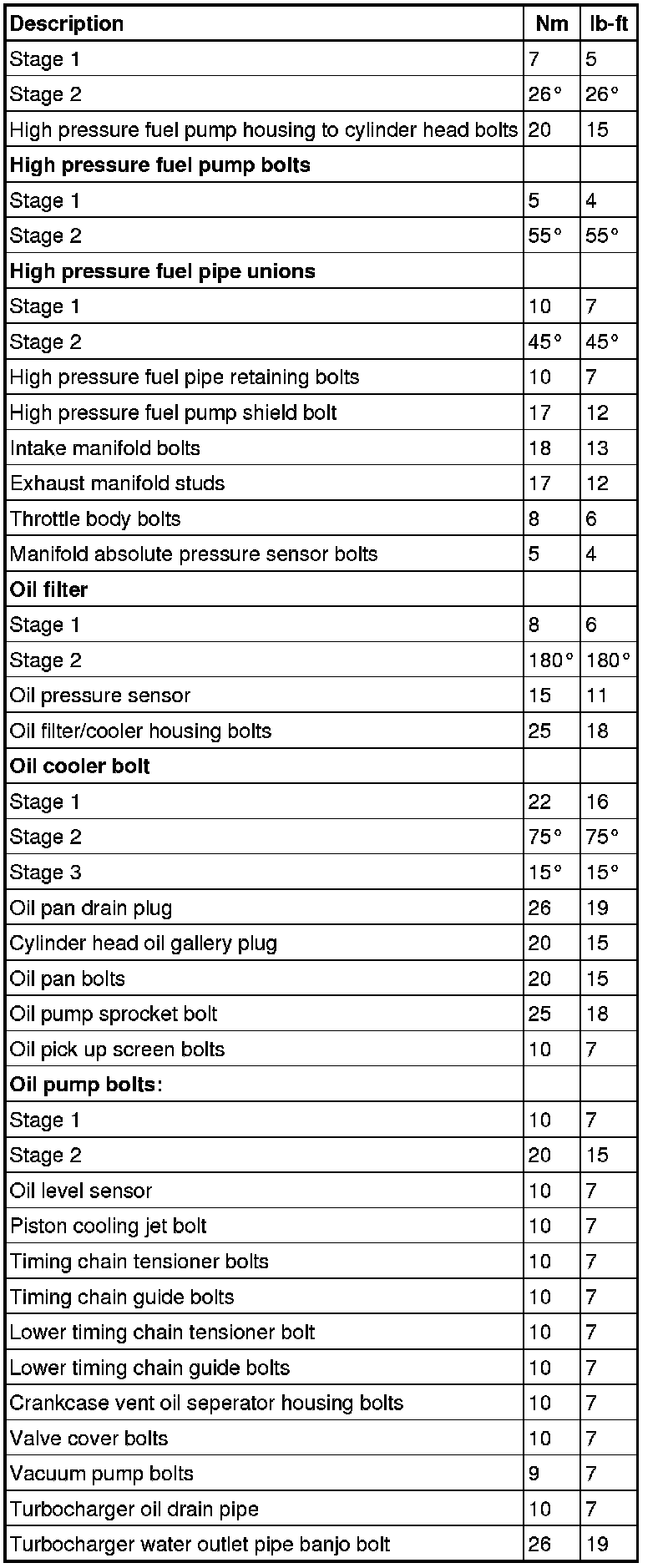

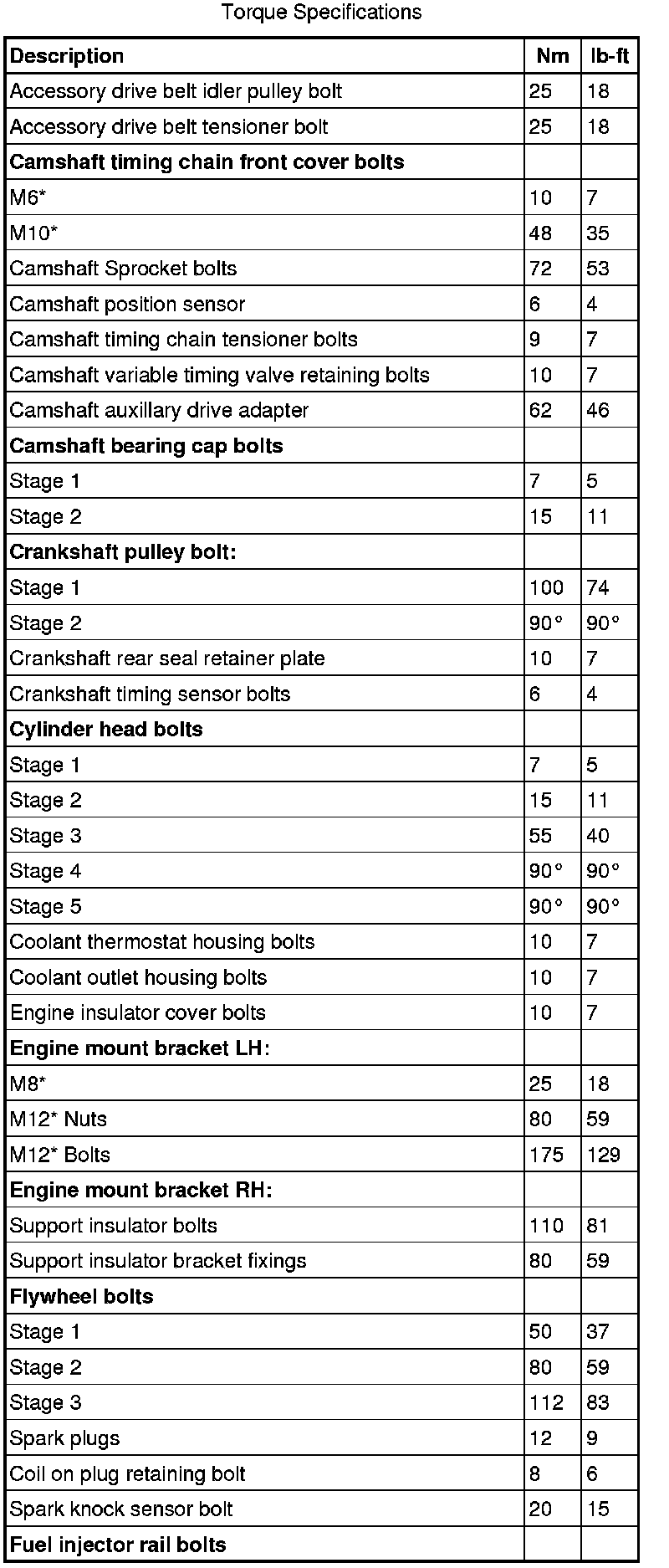

System Specifications
Specifications
* Prior to checking the engine oil pressure, a road test of 6 miles (10 kilometers) must be carried out. Do not attempt to attain normal engine operating temperature by allowing the engine to idle.
**If the backlash between the balance shaft and crankshaft is greater than 0.101 mm then the balance shaft assembly must be replaced.
* New nuts/bolts must be installed
A = refer to procedure for correct torque sequence
