Programming and Relearning

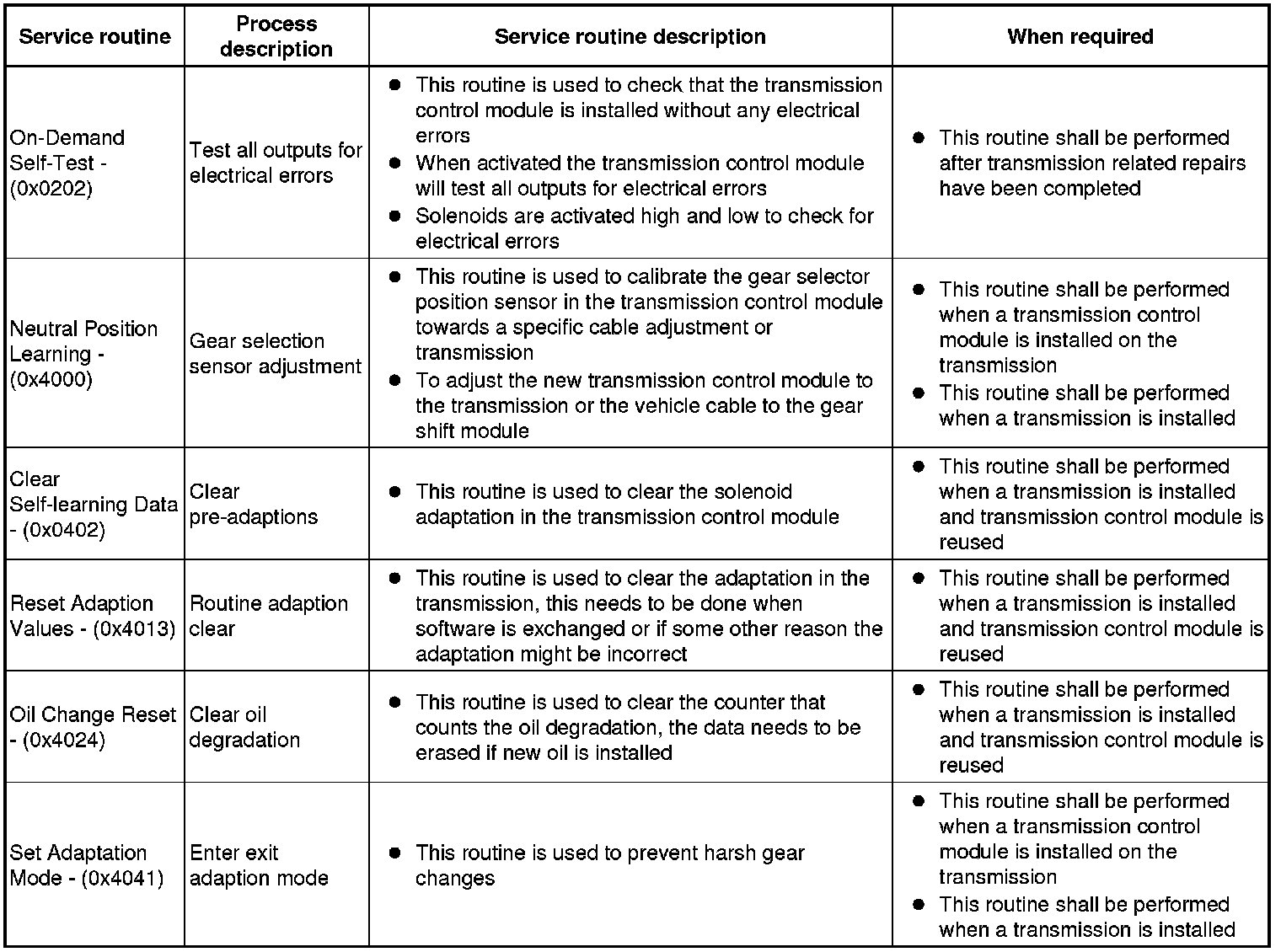

Transmission control module set up routines

NOTE:
Service routines will be carried out using the manufacturer approved diagnostic system, special applications programs





For a complete list of all diagnostic trouble codes that could be logged on this vehicle, please refer to Vehicle / A L L Diagnostic Trouble Codes ( DTC ). For additional information, refer to Diagnostic Trouble Code (DTC) Index - DTC: Transmission Control Module (TCM) Diagnostic Trouble Code Descriptions
