Active On-Demand Coupling Module

Active On-Demand Coupling Module
This is a "Trustmark Authoring Standards (TAS) Repair Procedure"
- TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.
- TAS removal and installation procedures use a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.
- Many of the TAS procedures will have the installation information within the removal steps.
- The TAS color illustrations use a variety of symbols to indicate important details of the procedures. It is important to understand these symbols in order to properly used the TAS procedures.
Refer to How to Use TAS Procedures and TAS Symbol Glossary at Vehicle | Description and Operation for additional information on these TAS procedures.
For additional information, refer to How to Use TAS Procedures How to Use TAS Procedures

Removal

NOTE:
If a new Active on-demand coupling module is installed, the throttle valve must also be installed.

WARNING: Make sure to support the vehicle with axle stands.
1 Raise and support the vehicle.









CAUTION: Make sure that the area around the component is clean and free of foreign material.

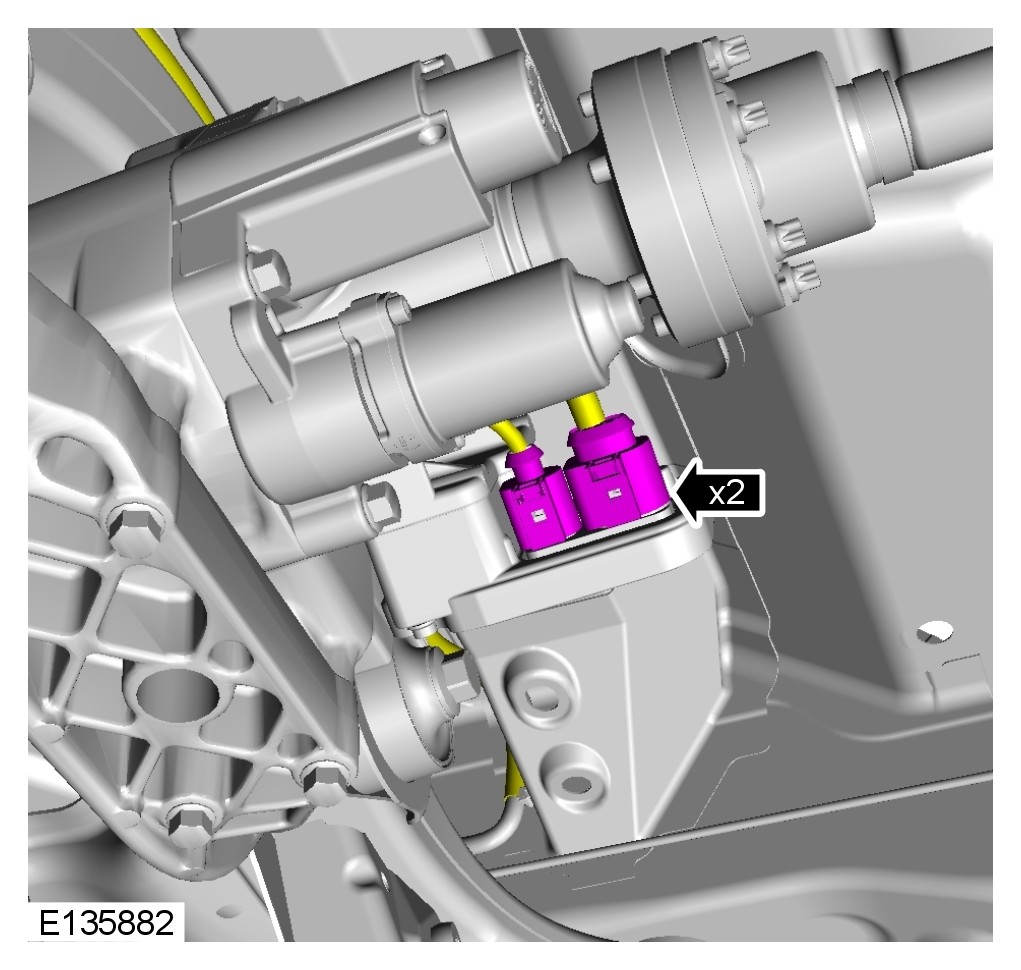

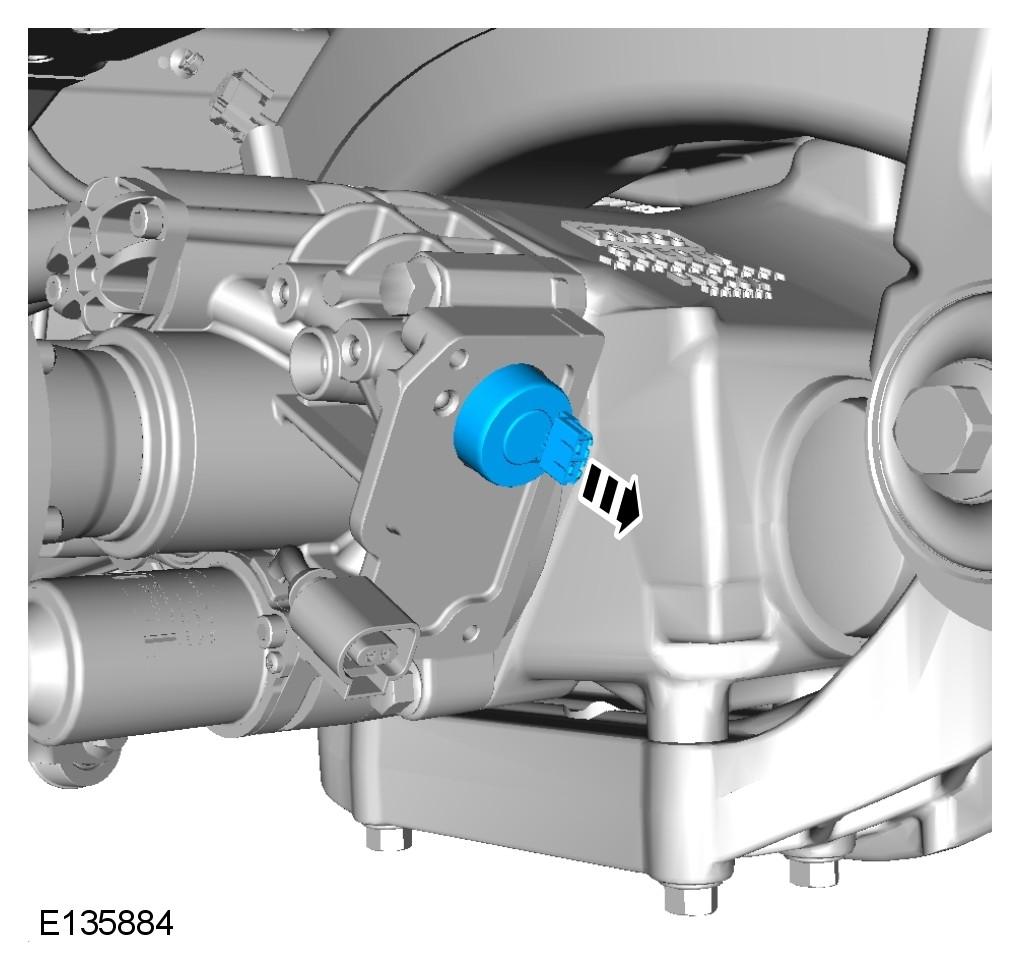

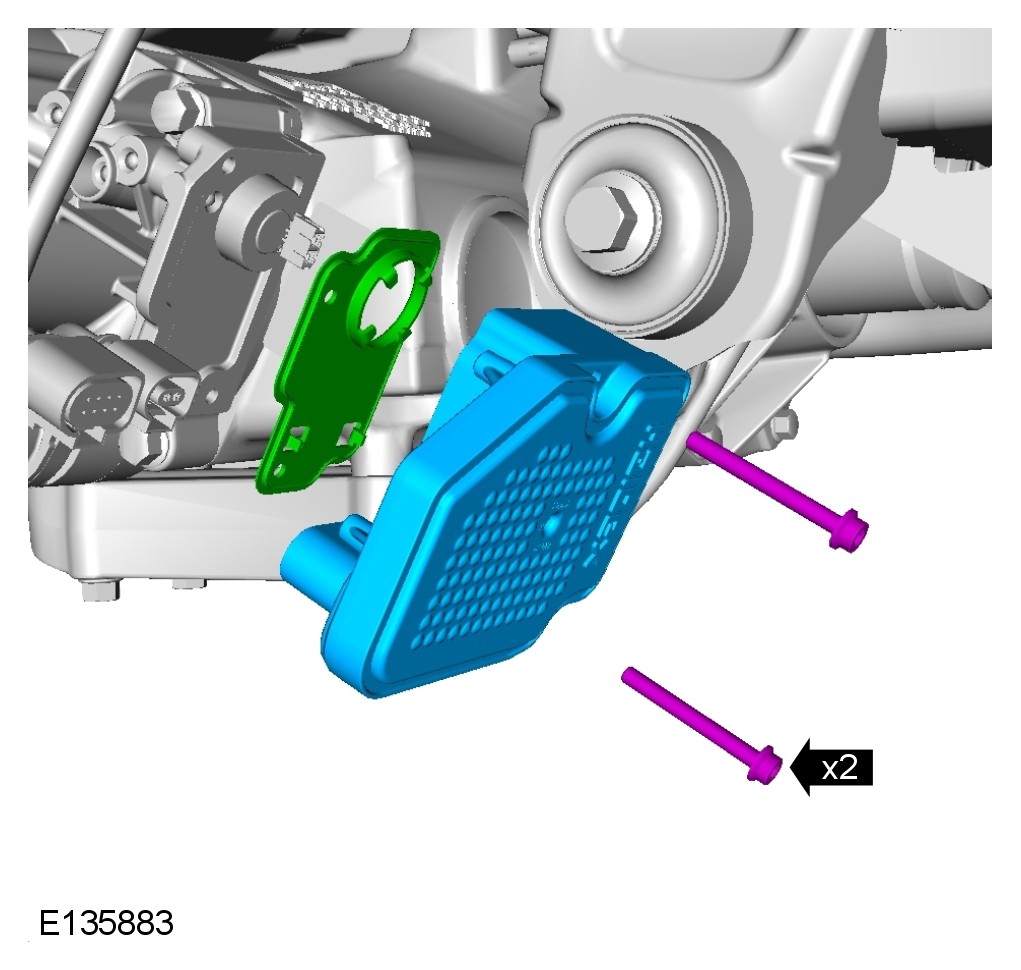

CAUTION: Be prepared to collect escaping fluids.





Installation

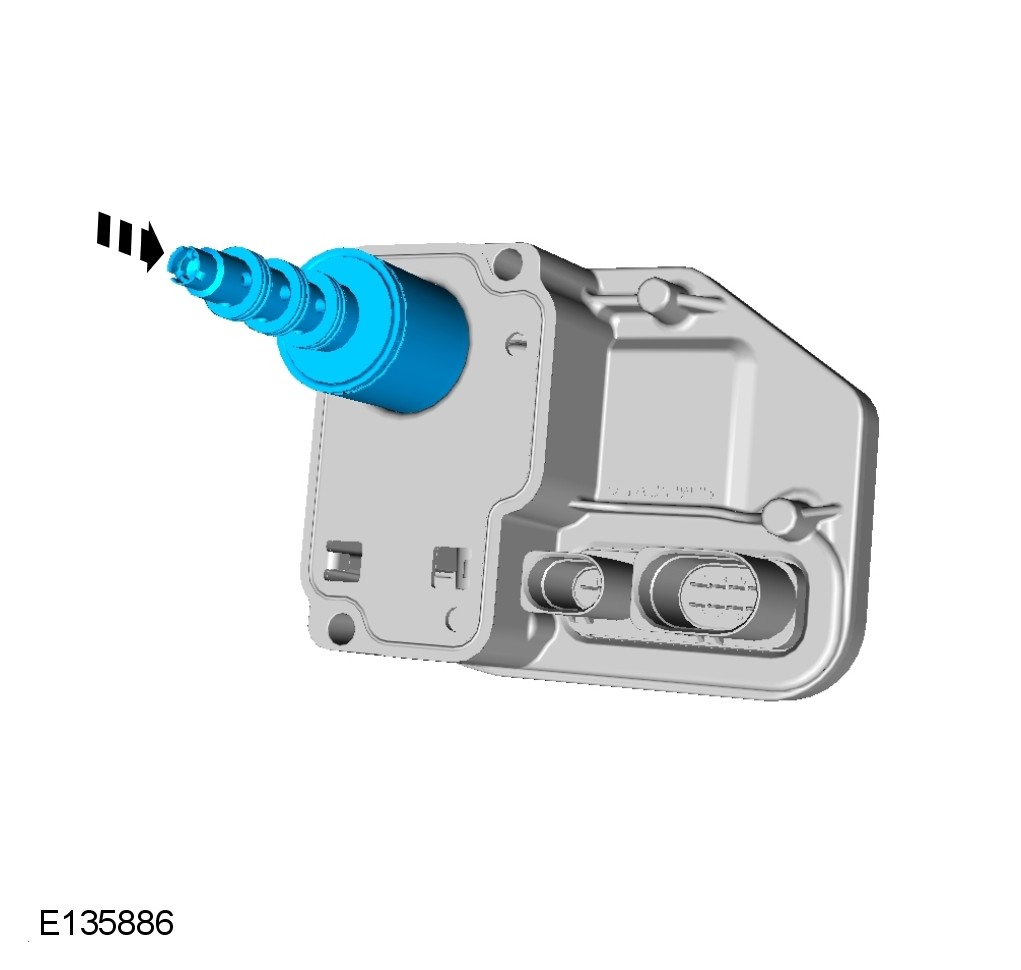

CAUTION: The throttle valve must be installed to the active on-demand coupling module before the assembly is installed to the active on-demand coupling. Failure to follow this instruction may result in damage to the vehicle.





NOTE:

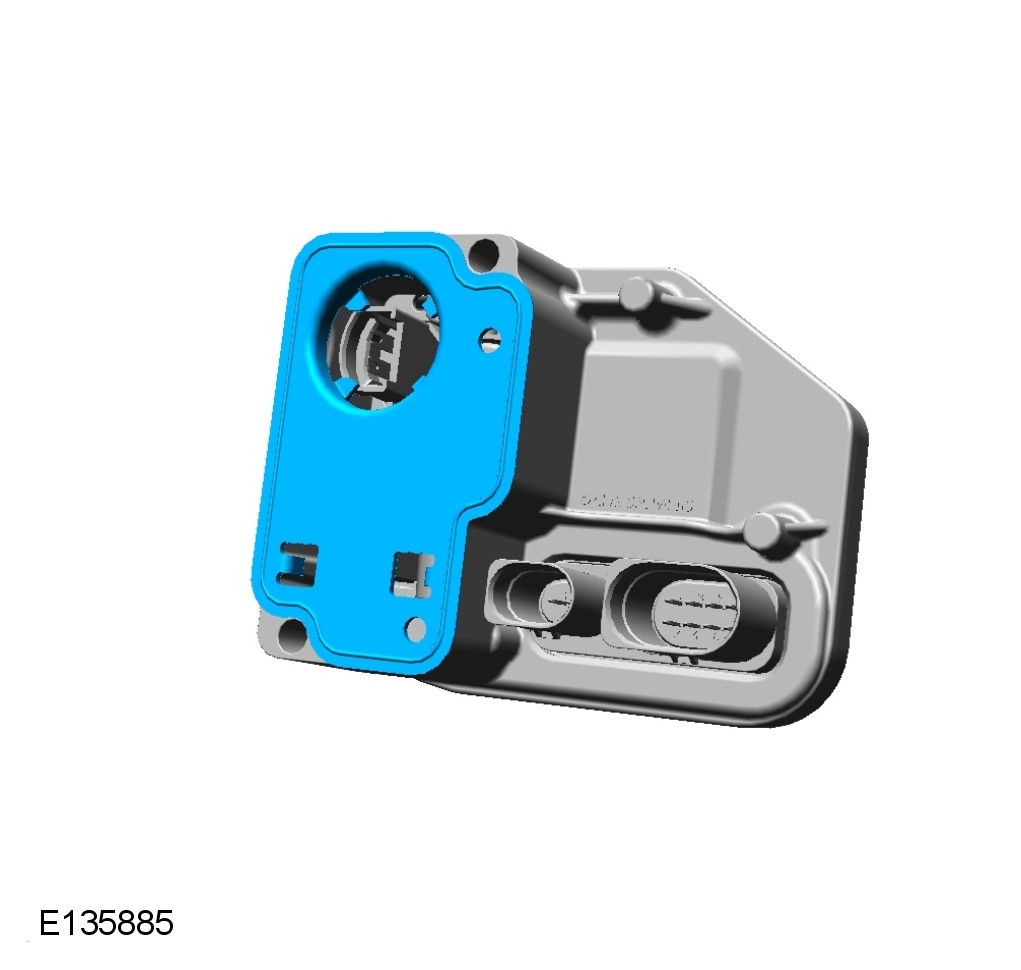

Lubricate the O-ring seal.

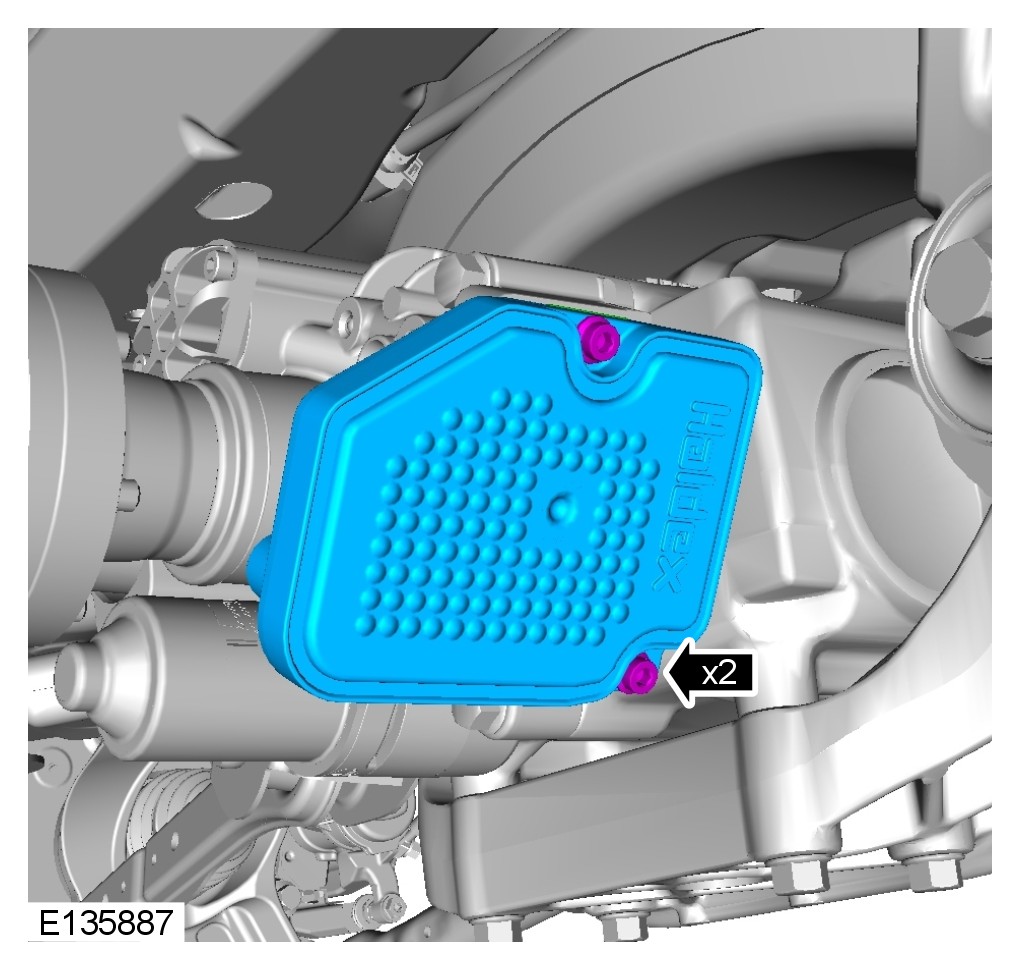

Torque to: 6 Nm
