Replacement

REPLACEMENT OF OUTSIDE REAR VIEW MIRROR

1. IF NECESSARY, DISCONNECT MIRROR

(a) Insert the shop rag between the mirror and the mirror body to wrap up the mirror in the shop rag.

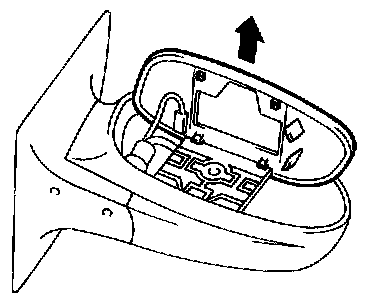

(b) Pull up the lower side of the shop rag to disconnect the mirror joint.

2. CONNECT MIRROR

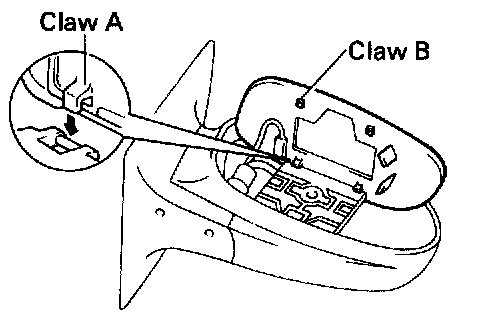

(a) Connect the claws (A) and set the mirror to the mirror body.
(b) Push the mirror to connect the claws (B) and connect it.
