Cruise Control: Testing and Inspection

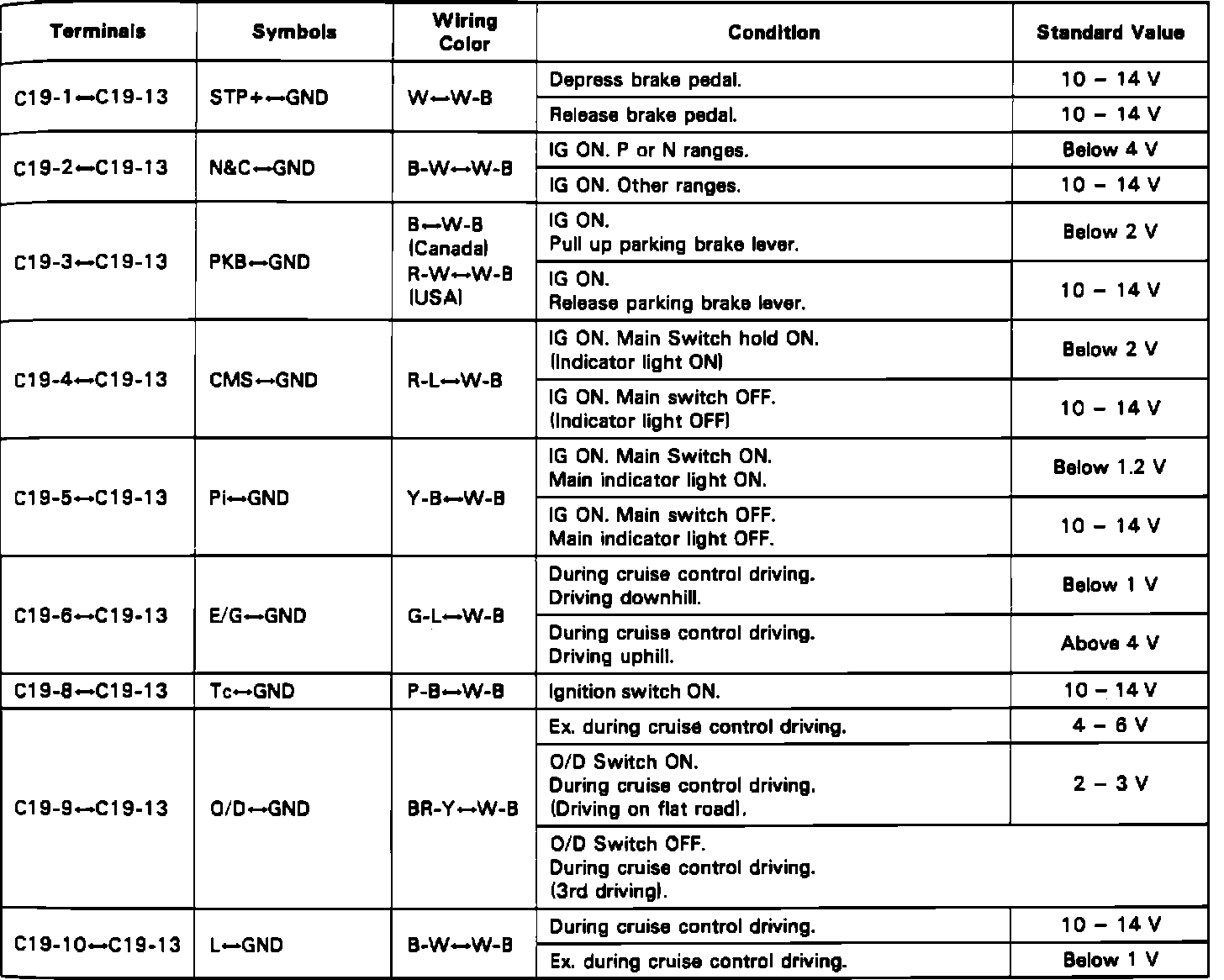

Fig. 9 ECU Circuit Test Chart (Part 1 Of 2):

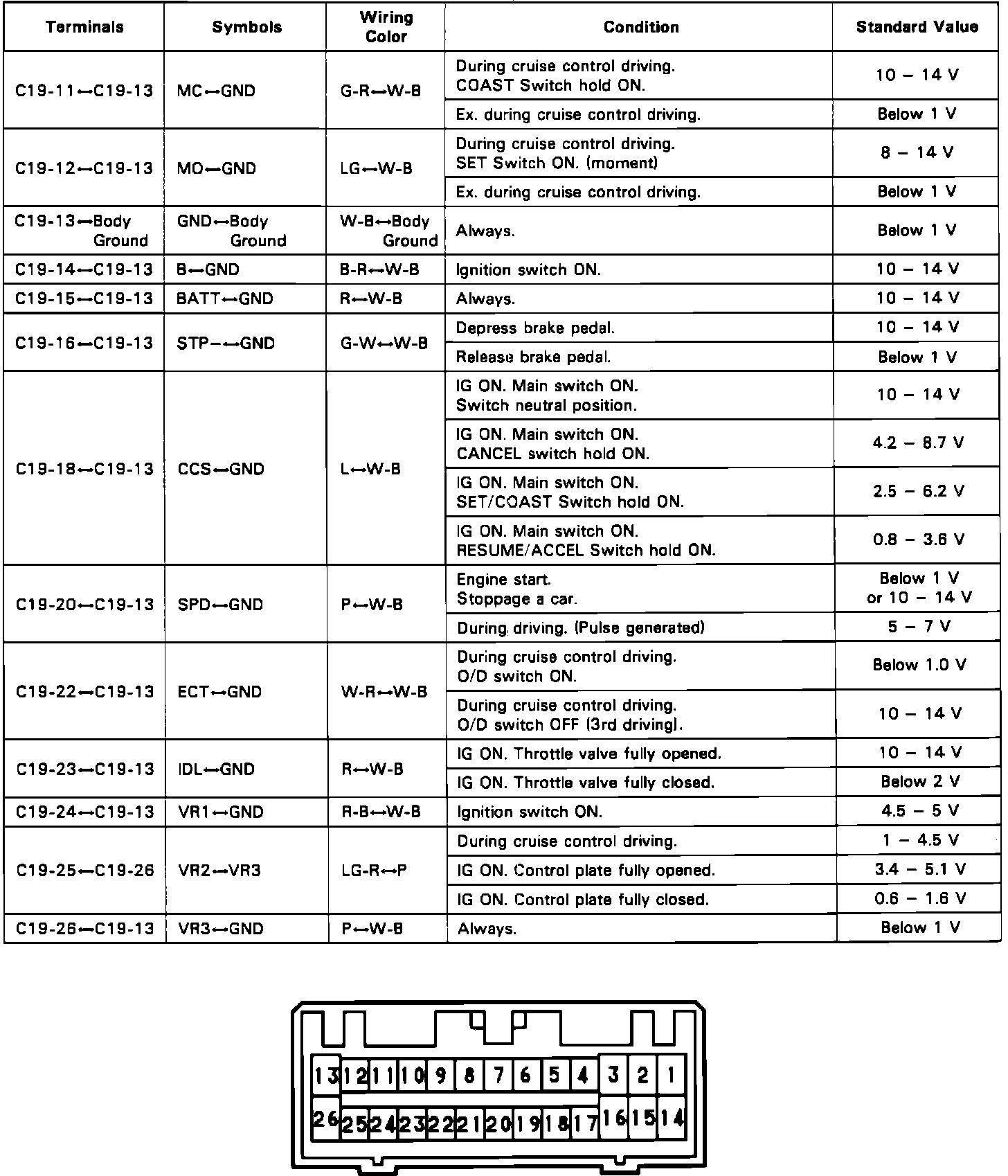

Fig. 9 ECU Circuit Test Chart (Part 2 Of 2):
Disconnect ECU connector and inspect connector on wire harness side as shown in
Fig. 9.
