Toe-In

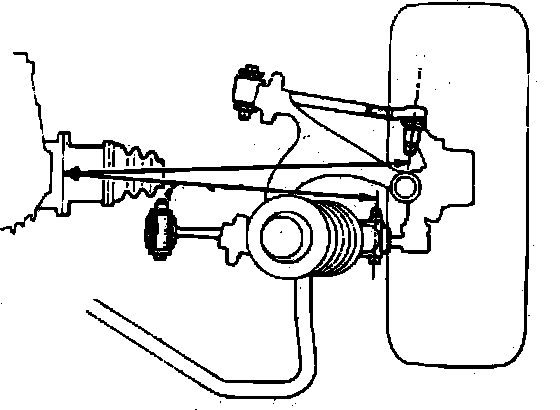

Fig. 16 Rear Camber & Toe-in Measurement:
Fig. 17 Rear Camber & Toe-in Adjustment:
1.
Measure length of No. 1 and No. 2 suspension arms as shown in
Fig. 16. 2.
If lengths are not equal, adjust by turning adjusting cam until left and right side lengths are equal.
Fig. 17. 3.
Measure camber and toe-in. If still not within specifications, adjust camber and toe-in with adjusting cam.
