Prepare the Special Tool





1. PREPARE THE SPECIAL TOOL

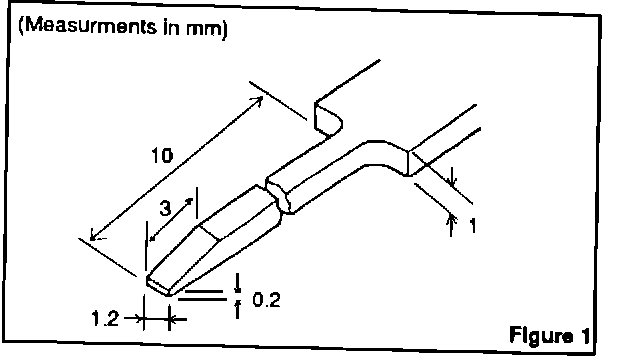

To remove the terminal from the connector, use SST #00002-217958, or construct a tool to the dimensions listed in Figure 1.
