Expansion Valve: Service and Repair

REMOVAL

1. REMOVE EVAPORATOR

2. REMOVE EXPANSION VALVE

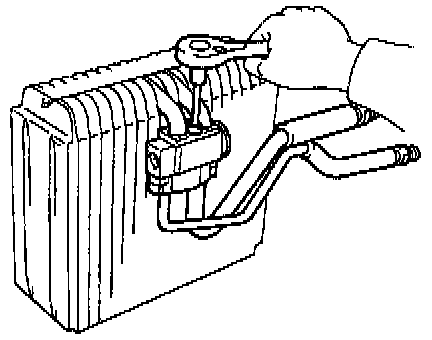

Using a hexagon wrench, remove the 2 bolts and separate the expansion valve and evaporator and tubes.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

INSTALLATION HINT: Lubricate 4 new Orings with compressor oil and install the tubes and valve.

INSTALLATION
Installation is in the reverse order of removal.
