Heater Control Valve: Adjustments

ADJUSTMENT
ADJUST WATER VALVE CONTROL CABLE
a. Set the vehicle in these conditions.
^ Ignition switch on.
^ Blower speed control switch on.
^ Temperature control switch to "COOL" position.

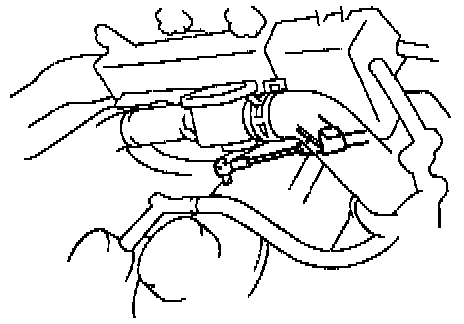

b. Set the water valve to "COOL" position, install the control cable and lock the clamp.
