With Scan Tool

DTC P1520 Stop Light Switch Circuit

CIRCUIT DESCRIPTION
When the brake pedal is depressed, the stop light switch sends a signal to the ECM. When the ECM receives this signal, it cancels the cruise control.
A fail-safe function is provided so that the cancel functions normally, even if there is a malfunction in the stop light signal circuit.
The cancel condition is that battery positive voltage is supplied to terminal STP.

When the brake is on, battery positive voltage is normally applied through the STOP fuse and stop light switch to terminal STP of the ECM, and the ECM turns the cruise control OFF
If the harness connected to terminal STP has an open circuit, terminal STP will have battery positive voltage and the cruise control will be turned OFF.

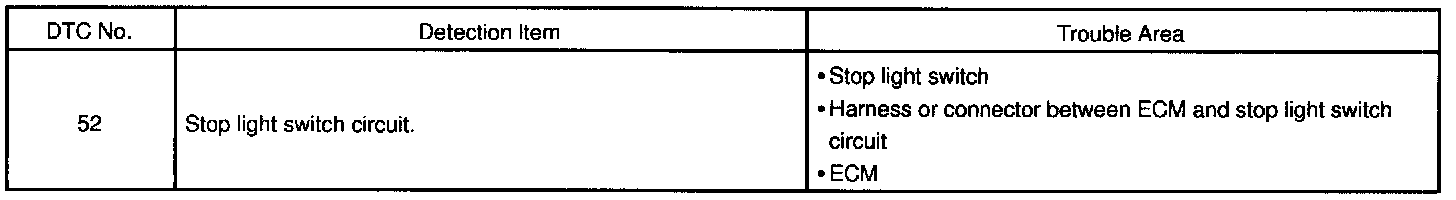

DETECTING CONDITION

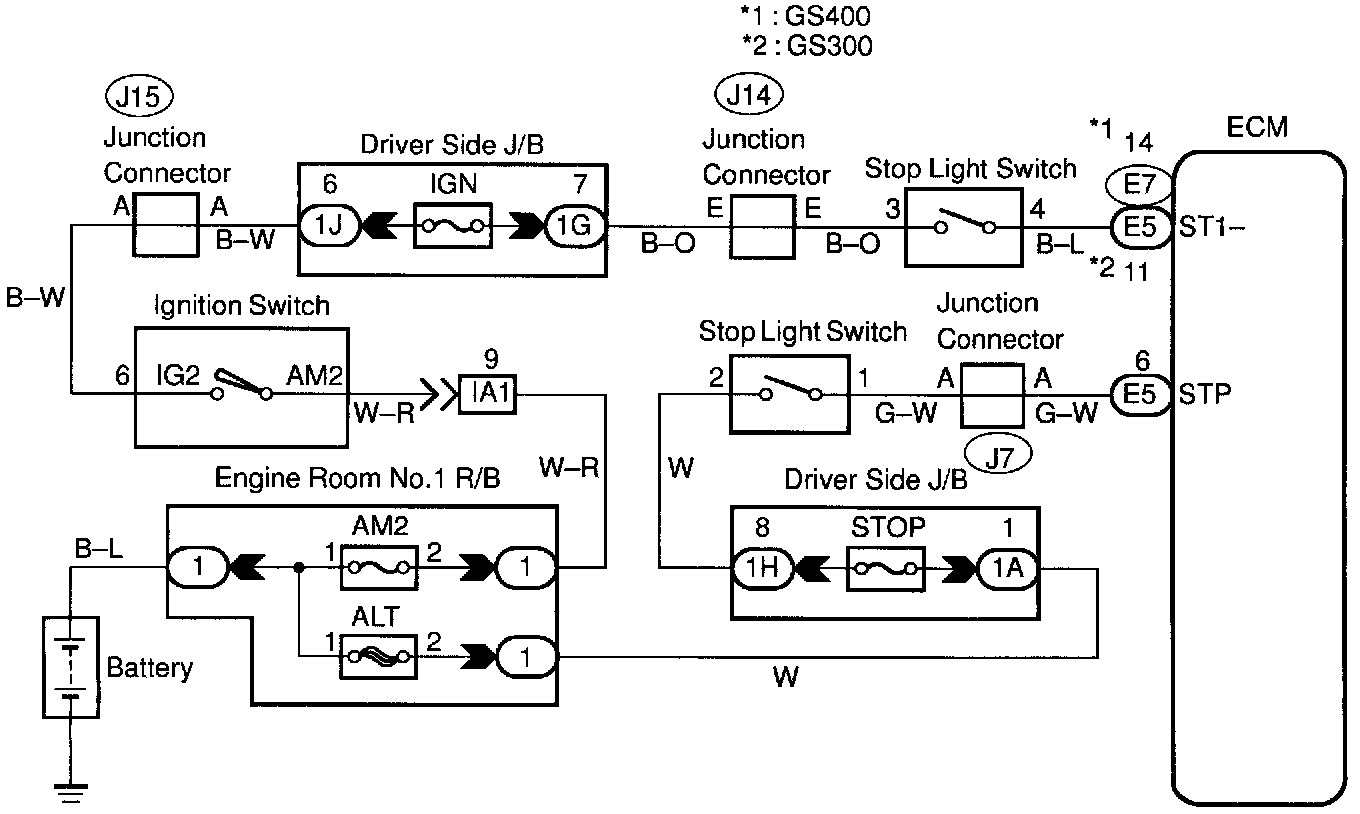

WIRING DIAGRAM

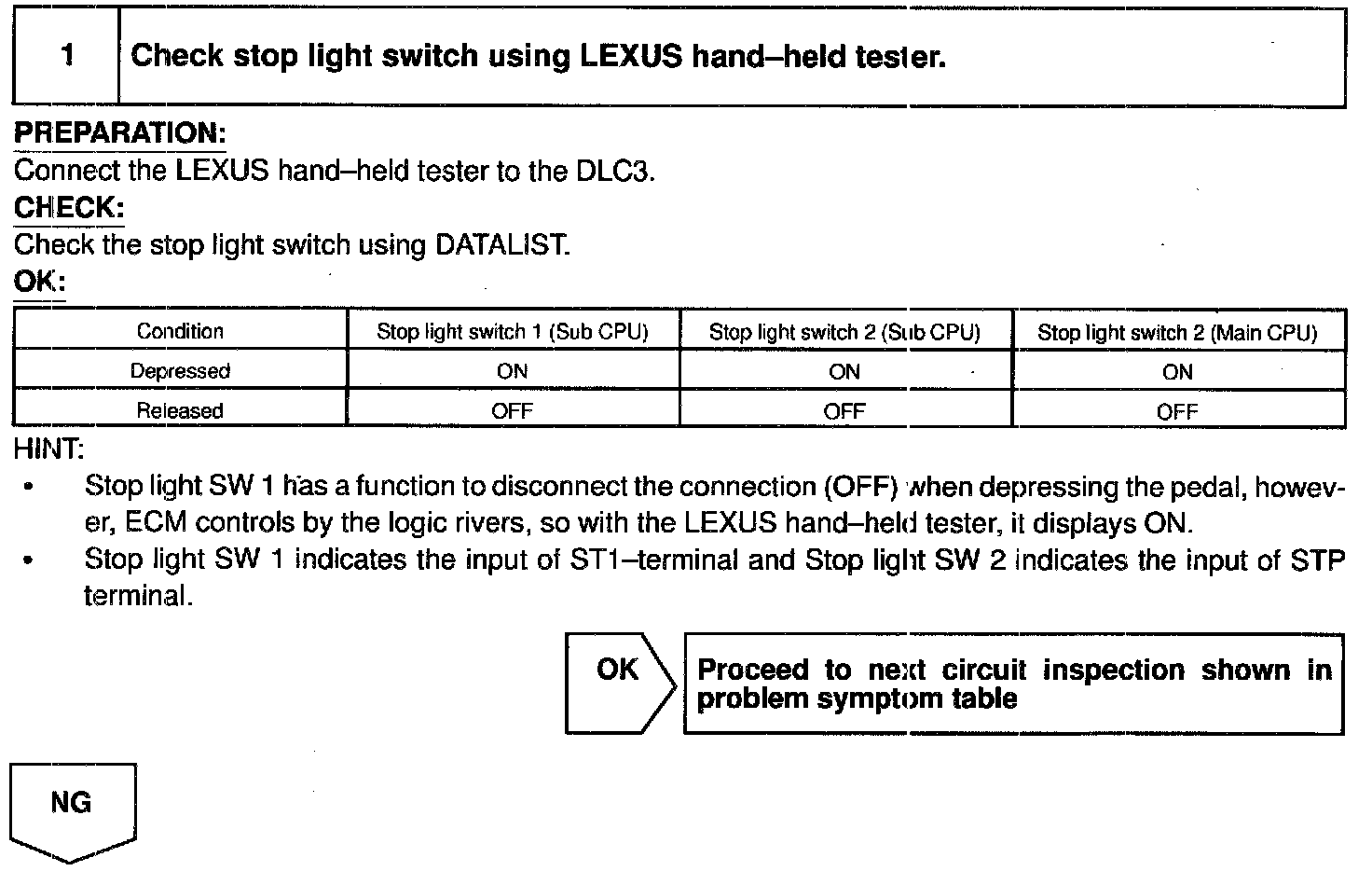

Step 1:

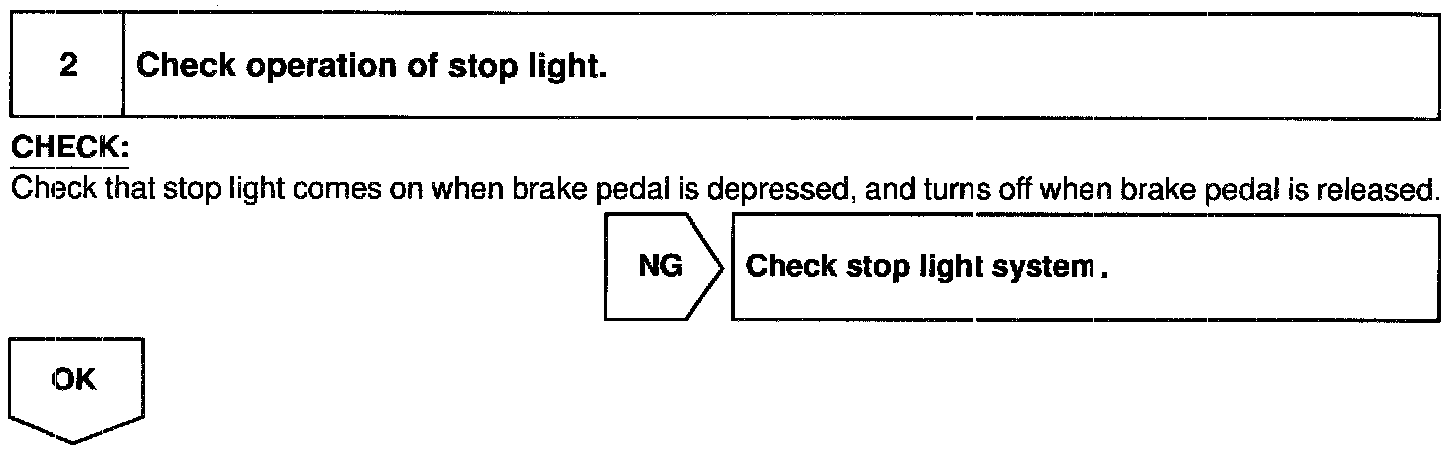

Step 2:

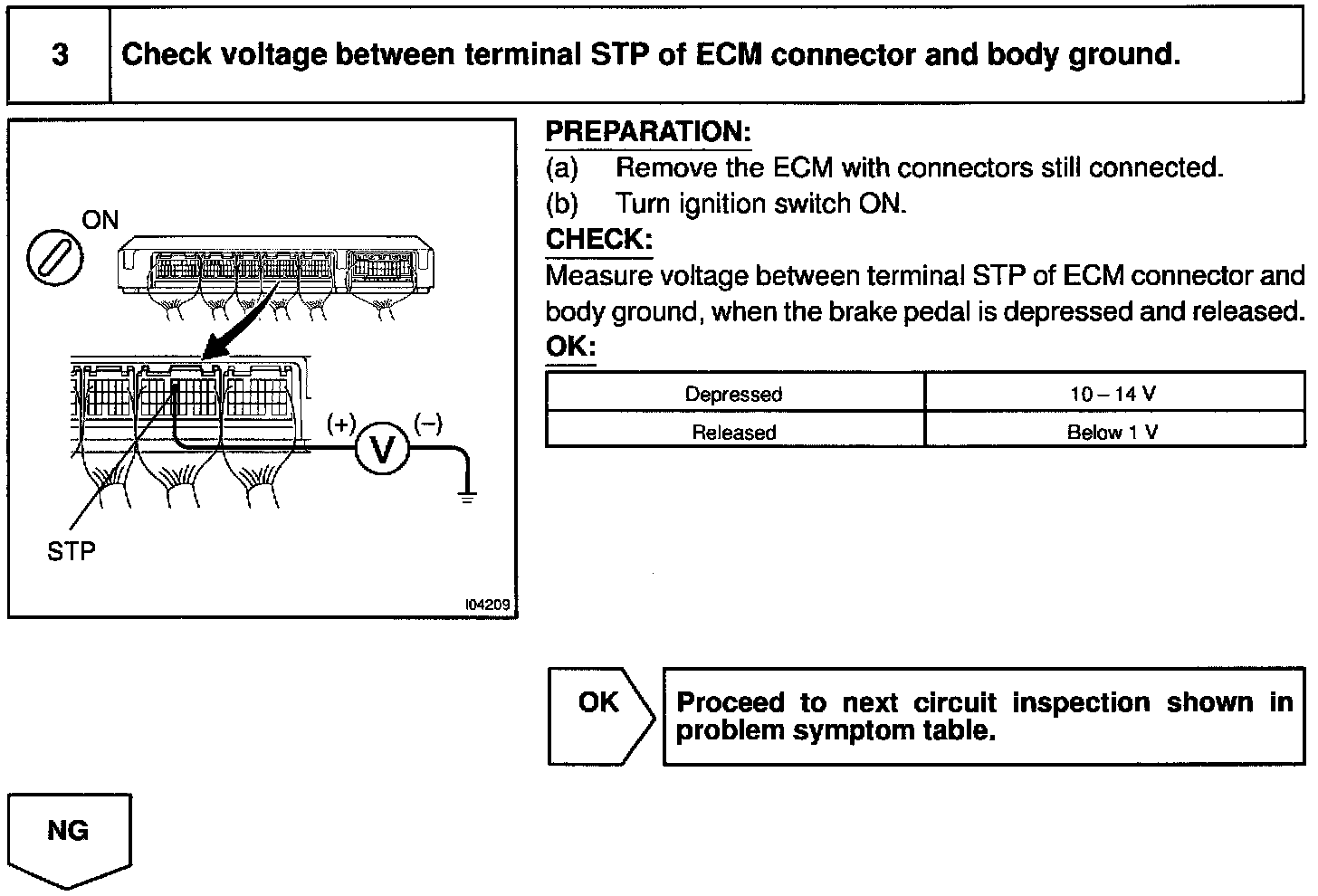

Step 3:

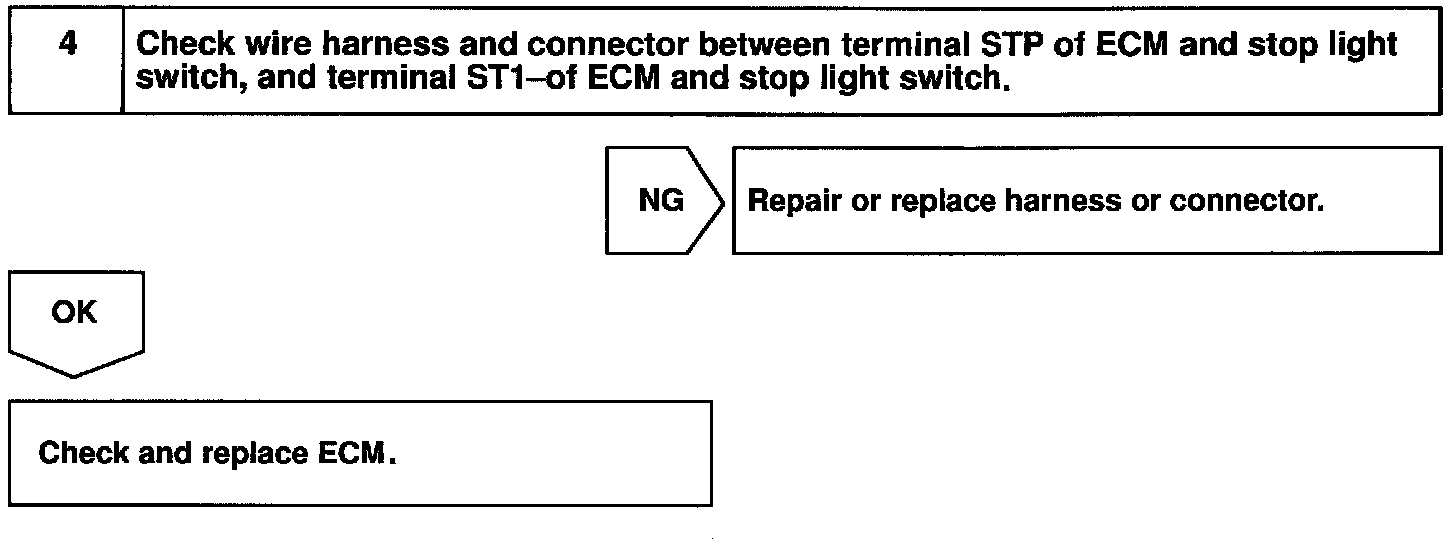

Step 4:

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
