Removal and Installation

COMPONENTS

REMOVAL

REMOVE A/C CONTROL ASSEMBLY

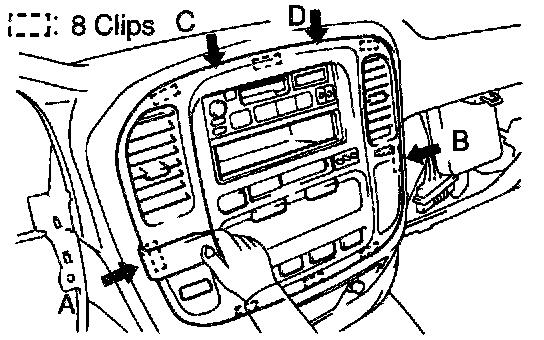

a. Using a moulding remover, remove the center cluster in order "A", "B", "C", "D".
b. Disconnect the connector.

INSTALLATION
Installation is in the reverse order of removal.
