Home >> Lexus >> 1998 >> LX 470 V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> System Specifications >> Differential Technical Data >> Front

Front

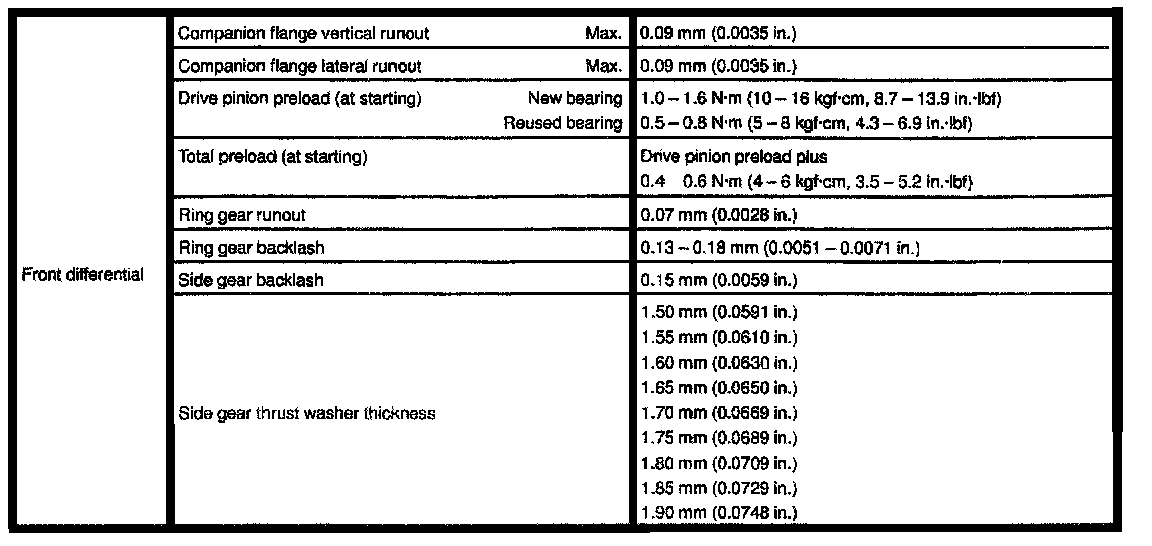

Four Wheel Drive, Front Differential Runout / Backlash:

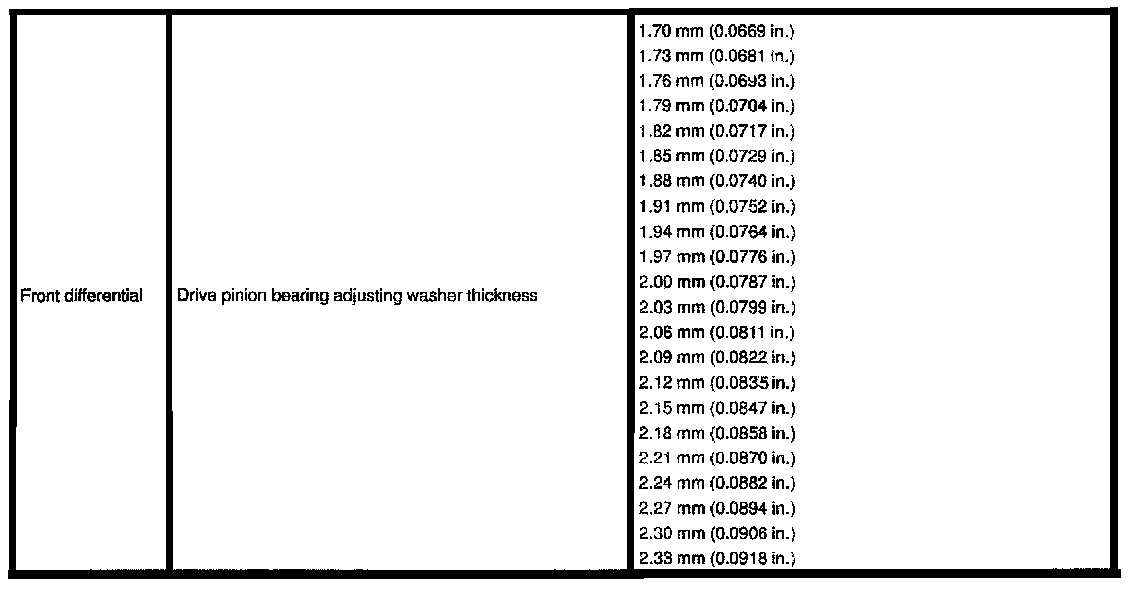

Four Wheel Drive, Front Differential Bearing Thickness:

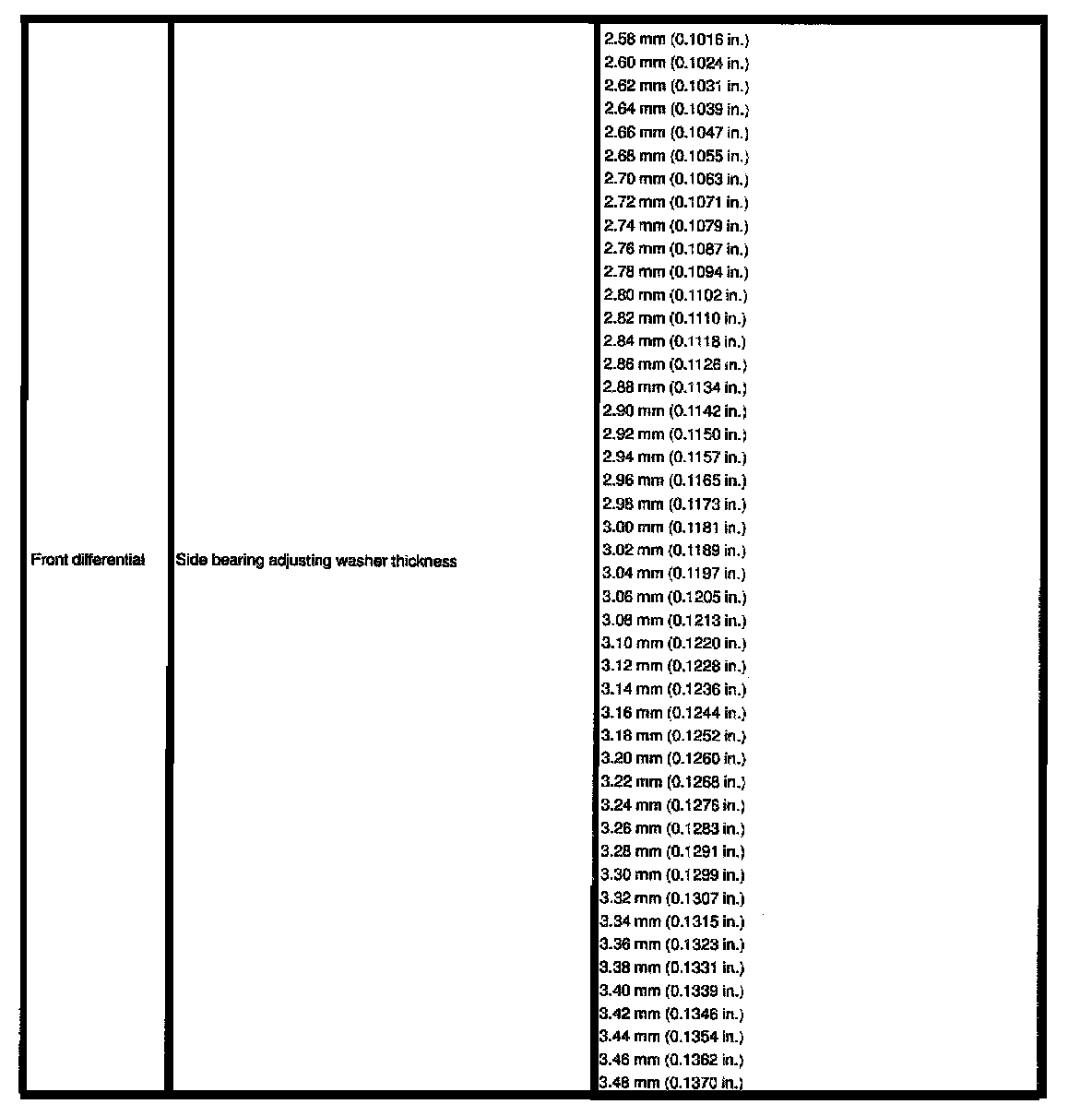

Four Wheel Drive, Front Differential Bearing Thickness:
