With Open Differential
With Open Differential

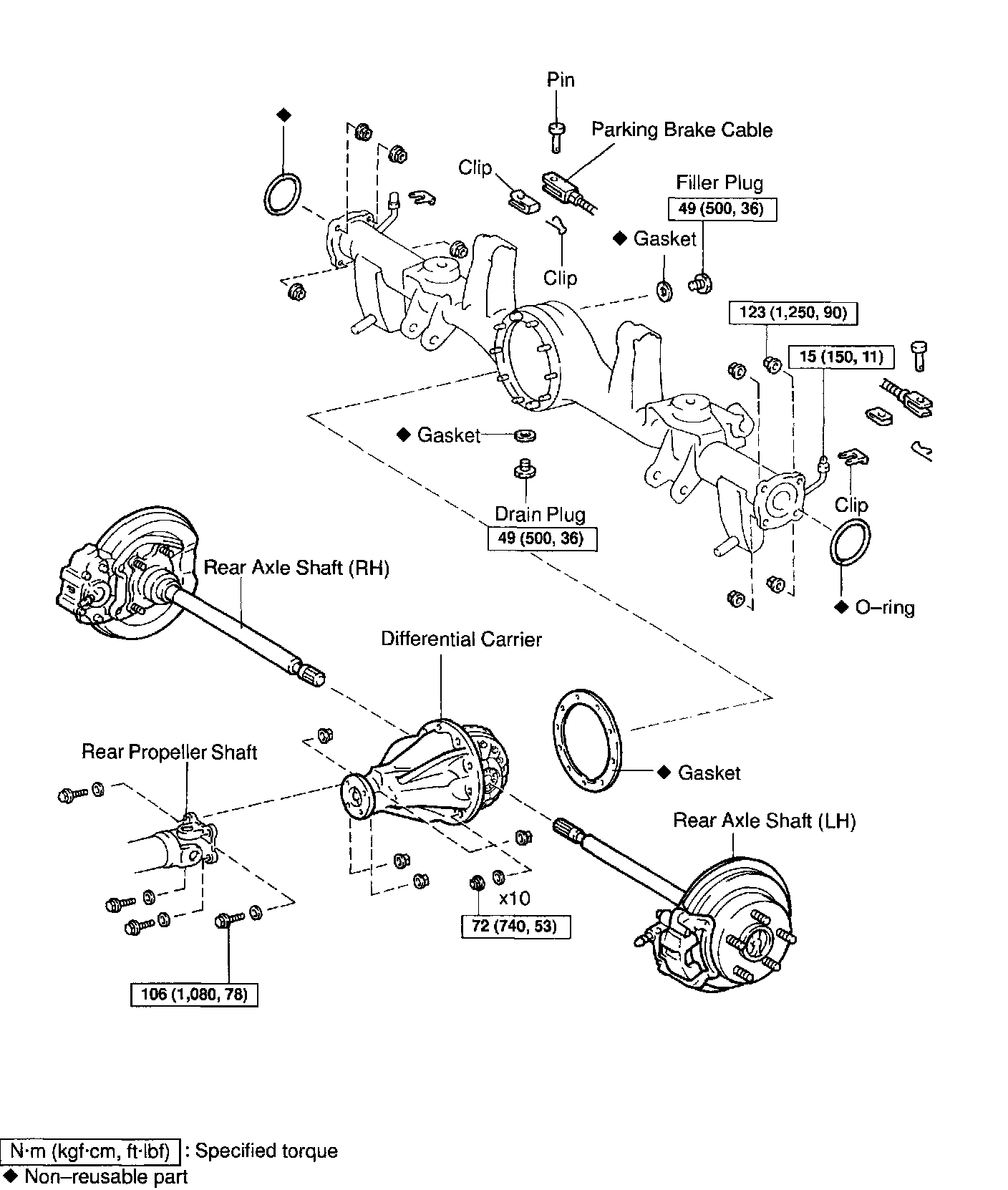

DIFFERENTIAL CARRIER ASSEMBLY AND RELATED COMPONENTS
DIFFERENTIAL CARRIER
