Compressor Clutch Relay: Testing and Inspection

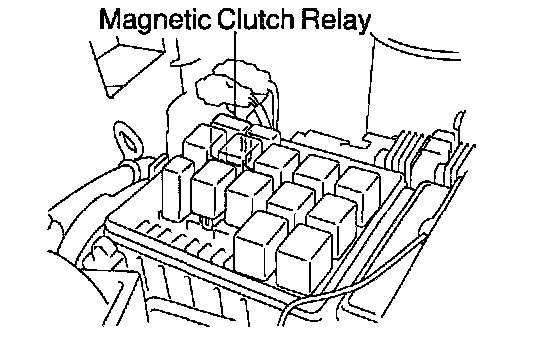

REMOVE MAGNETIC CLUTCH RELAY (Marking: MGCLT) FROM ENGINE ROOM RELAY BLOCK

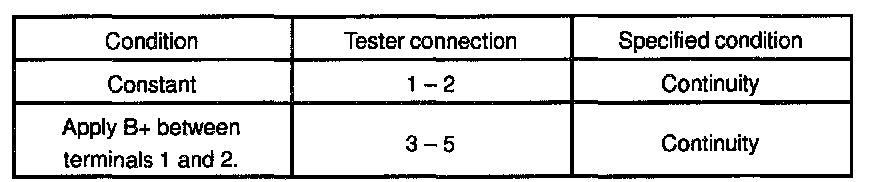

INSPECT MAGNETIC CLUTCH RELAY (Marking: MGCLT) CONTINUITY
If continuity is not as specified, replace the relay.

INSTALL RELAY TO ENGINE ROOM RELAY BLOCK
