Power Source

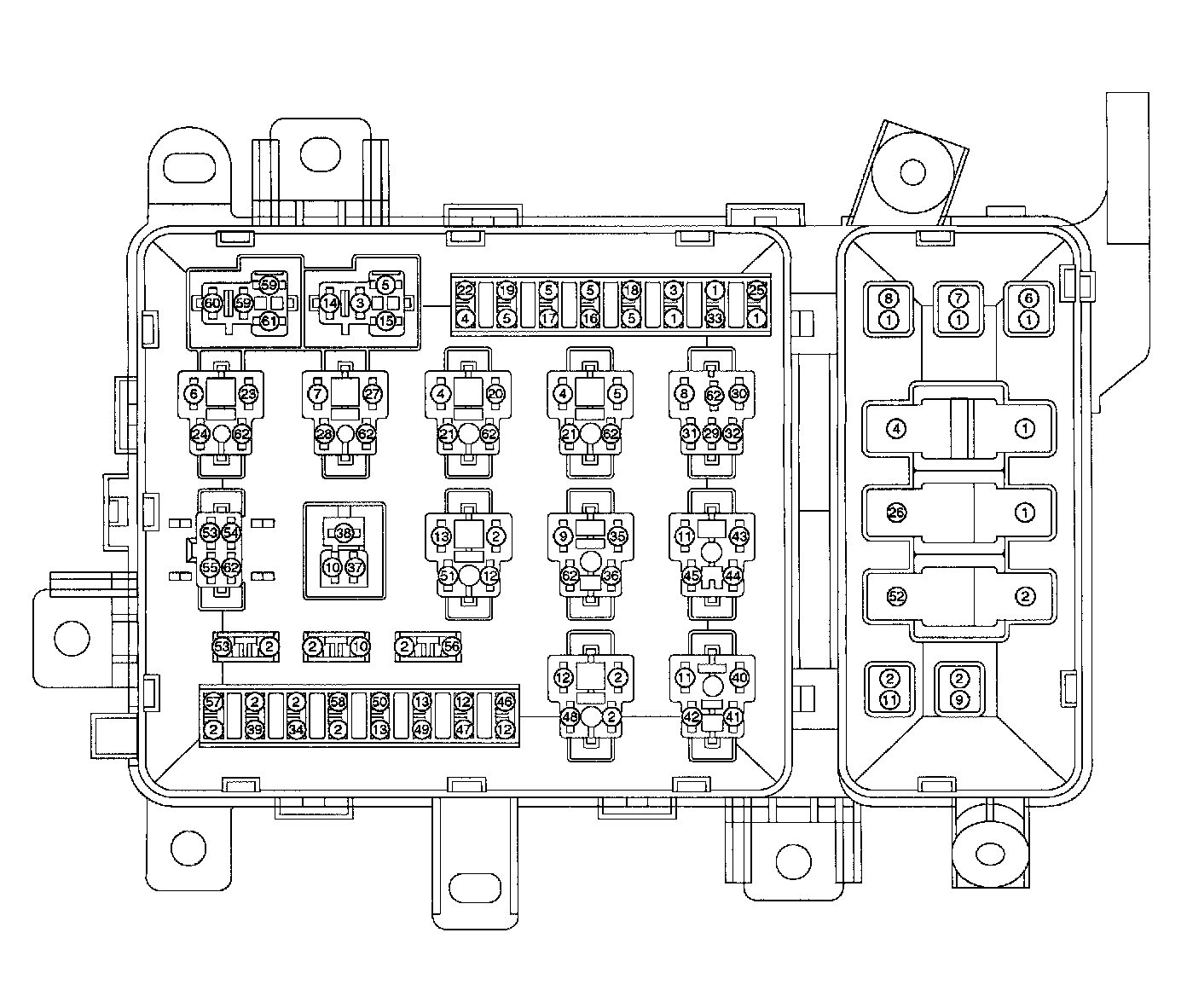

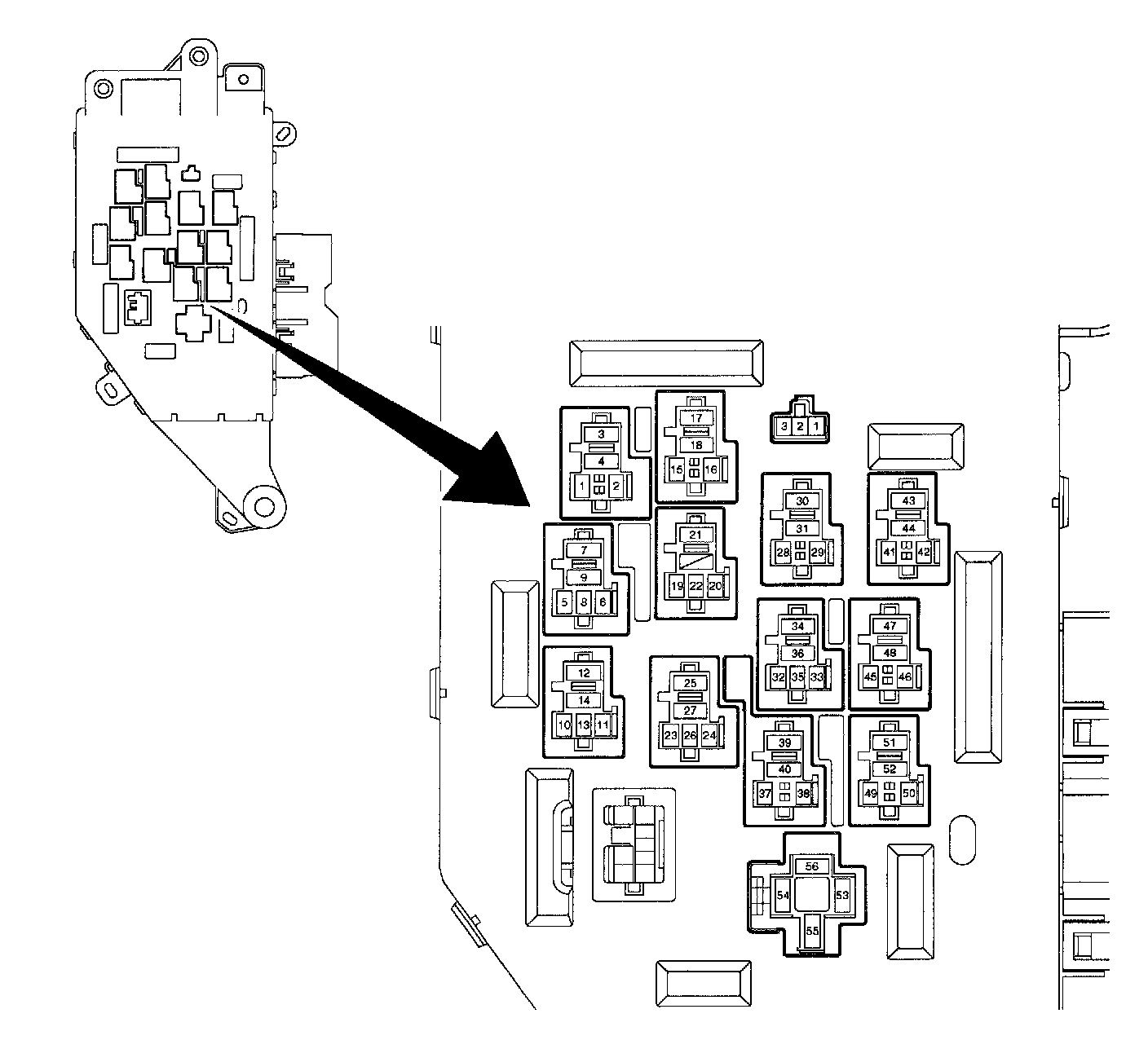

INSPECT ENGINE ROOM JUNCTION BLOCK CIRCUIT

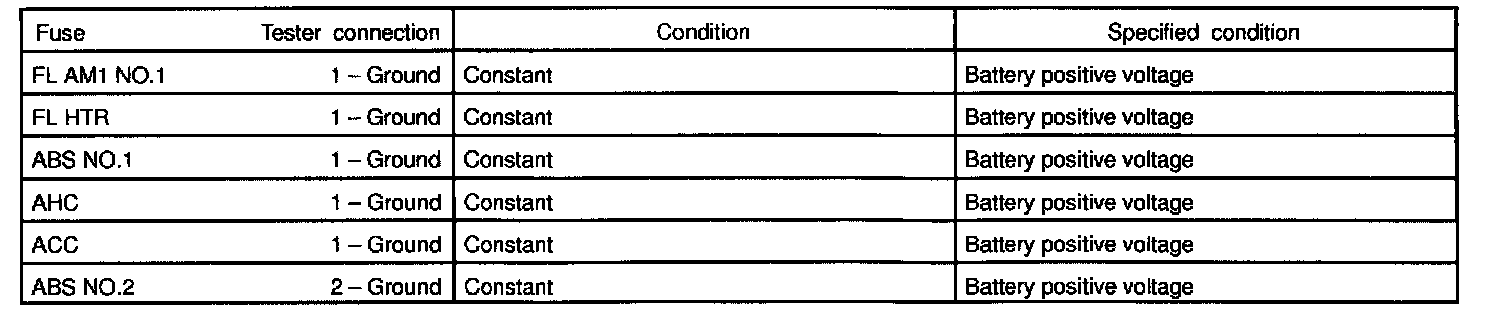

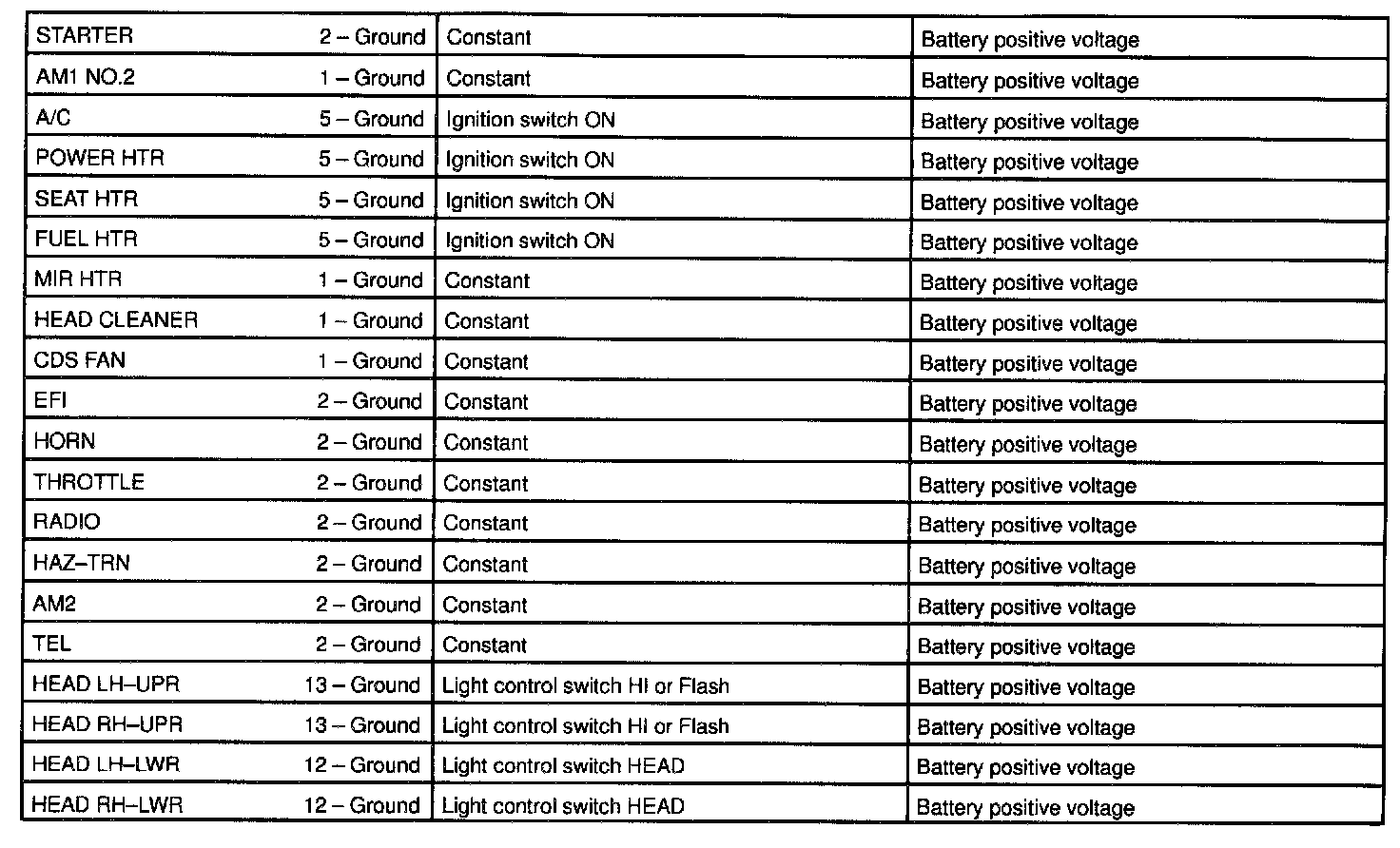

a. Remove the fuse from the junction block and inspect the connector on junction block side
If the circuit is not as specified, inspect the circuits connected to other parts.







b. Remove the relay from the junction block and inspect the connector on junction block side.
If the circuit is not as specified, inspect the circuits connected to other parts.

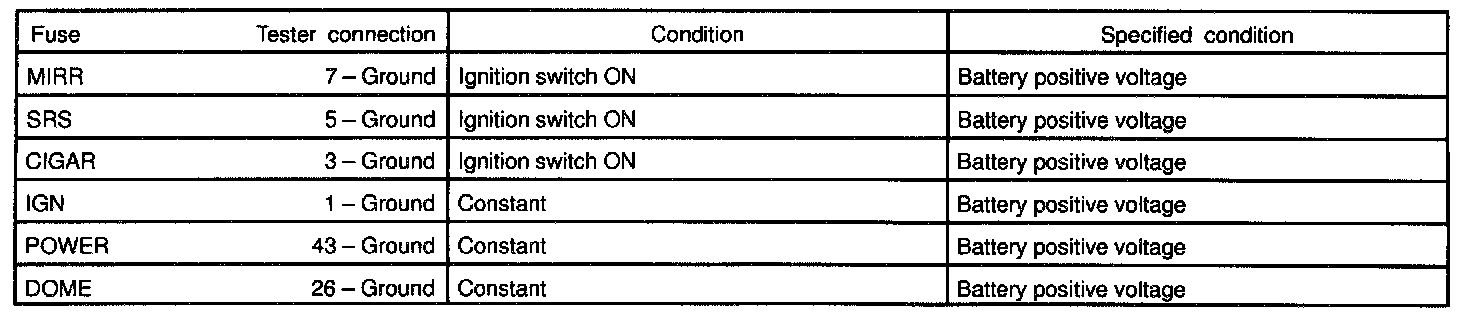

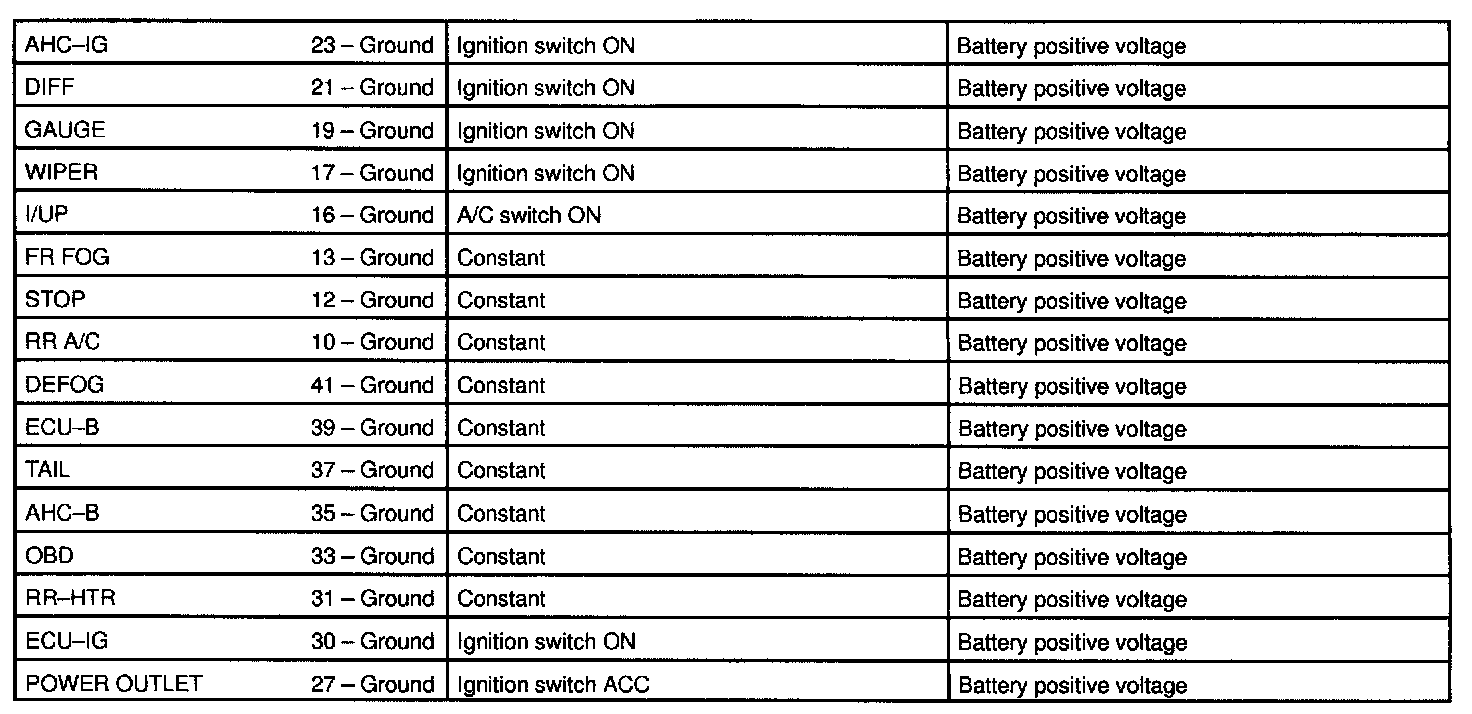

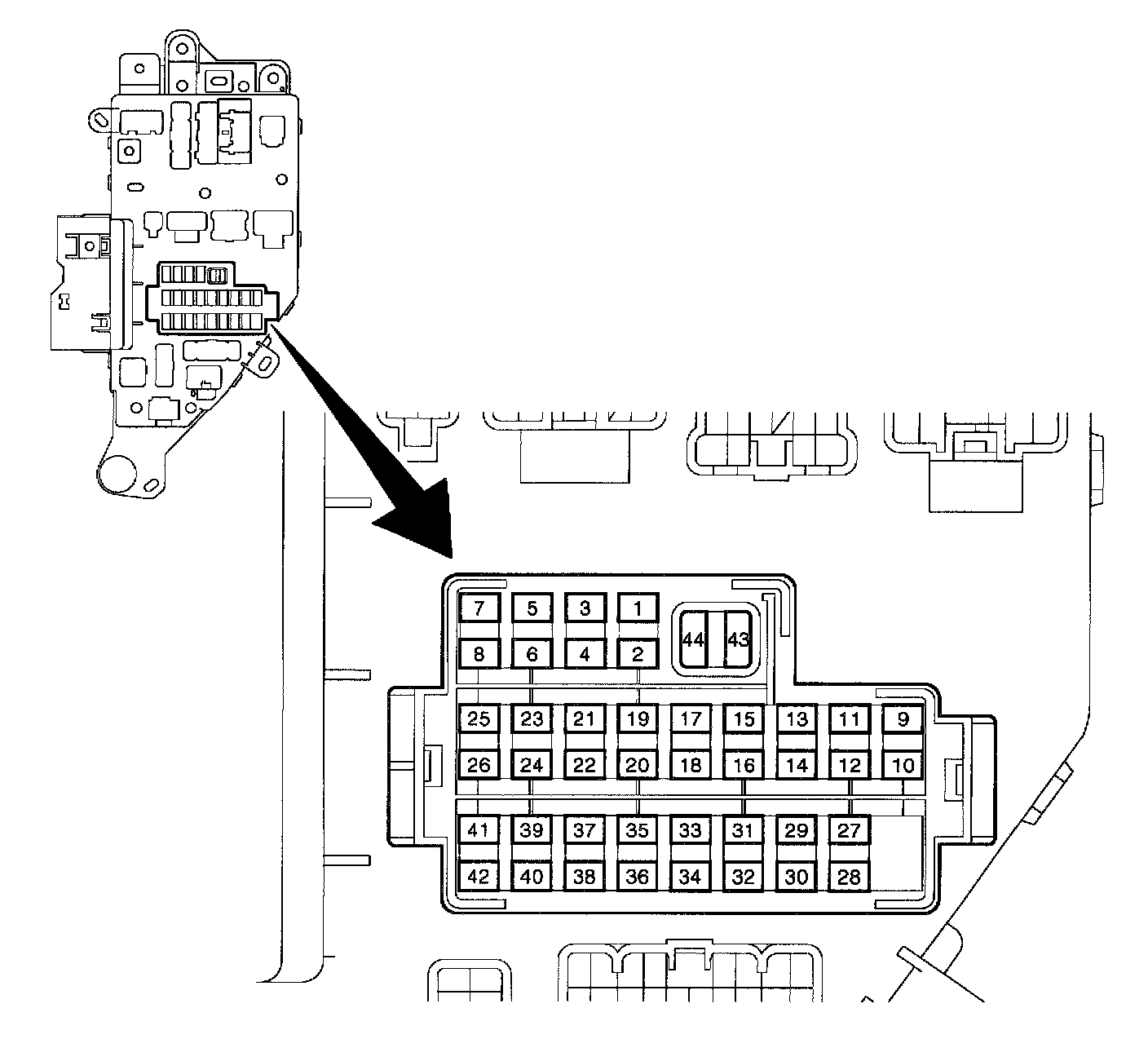

INSPECT DRIVER SIDE JUNCTION BLOCK FUSE CIRCUIT







Remove the fuse from the junction block and inspect the connector on junction block side.
If the circuit is not as specified, inspect the circuits connected to other parts.

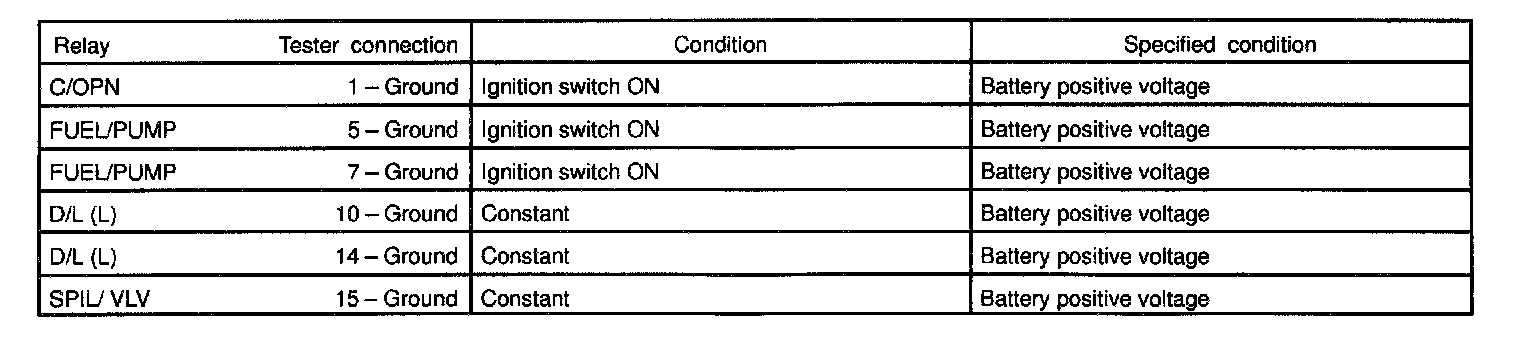

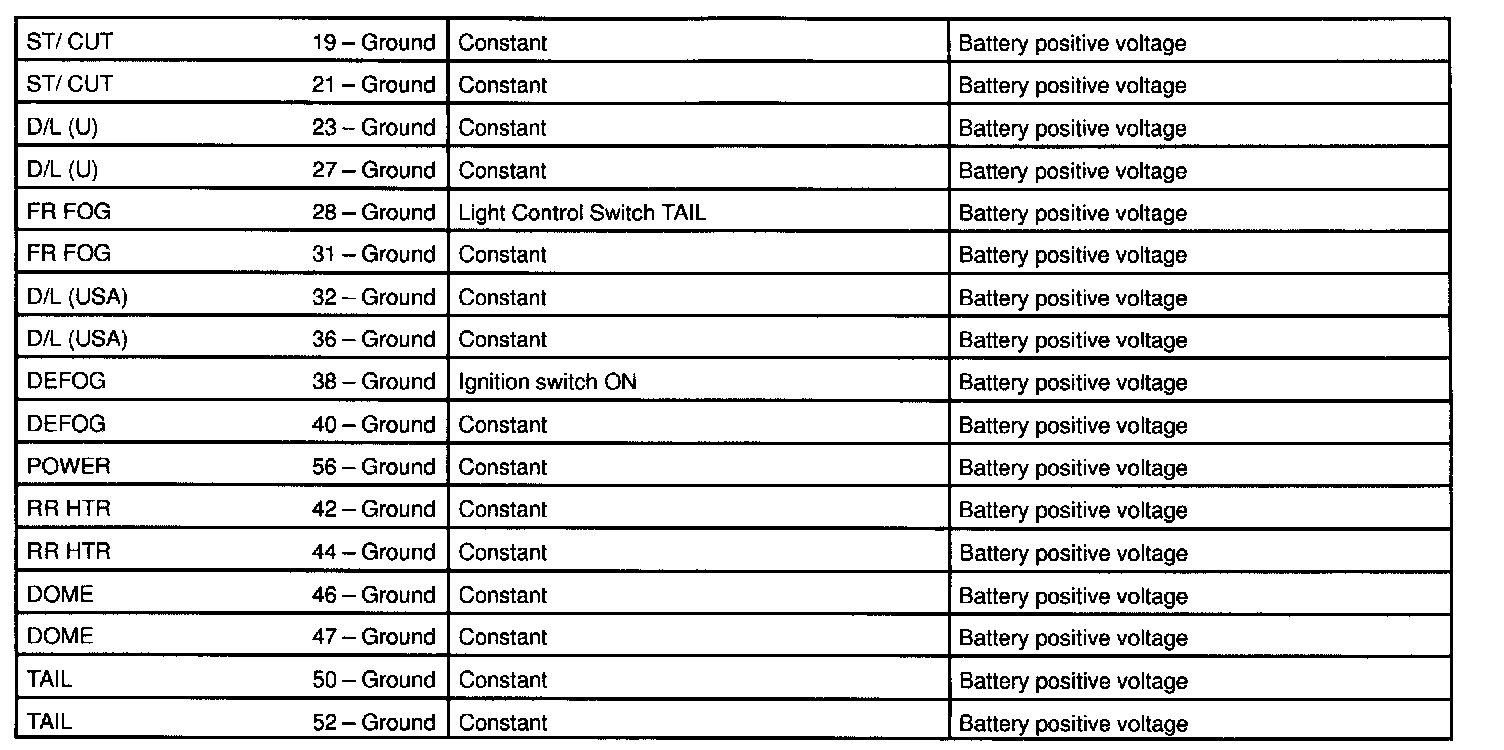

INSPECT DRIVER SIDE JUNCTION BLOCK RELAY CIRCUIT







Remove the relay from the junction block and inspect the connector on junction block side.
If the circuit is not as specified, inspect the circuits connected to other parts.

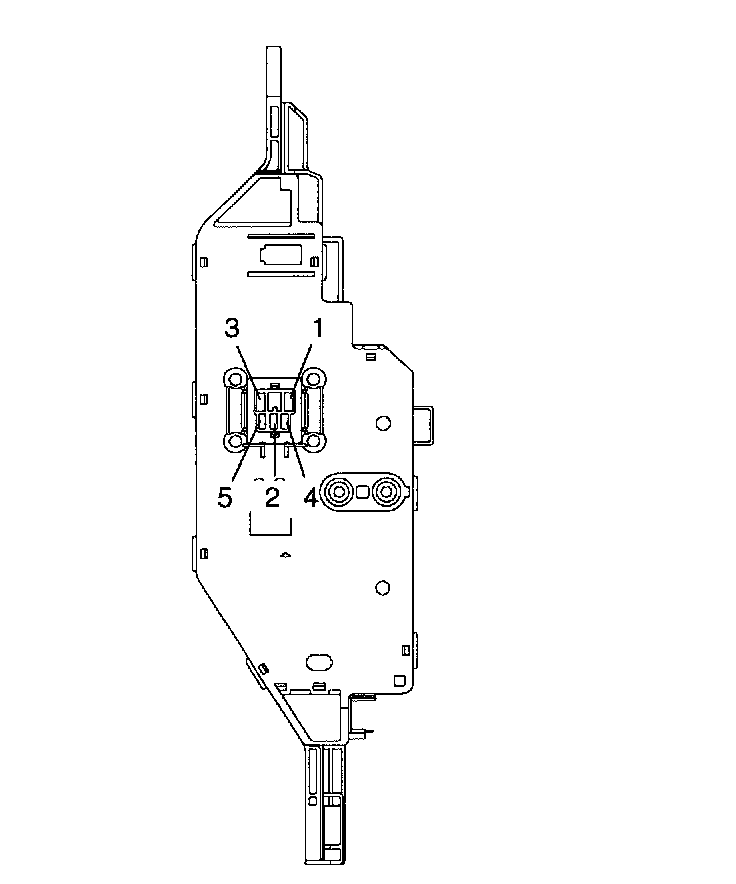

INSPECT PASSENGER SIDE JUNCTION BLOCK CIRCUIT




Remove the relay from the junction block and inspect the connector on junction block side.
If the circuit is not as specified, inspect the circuits connected to other parts.
