Door Lock Control Switch Circuit

CIRCUIT DESCRIPTION

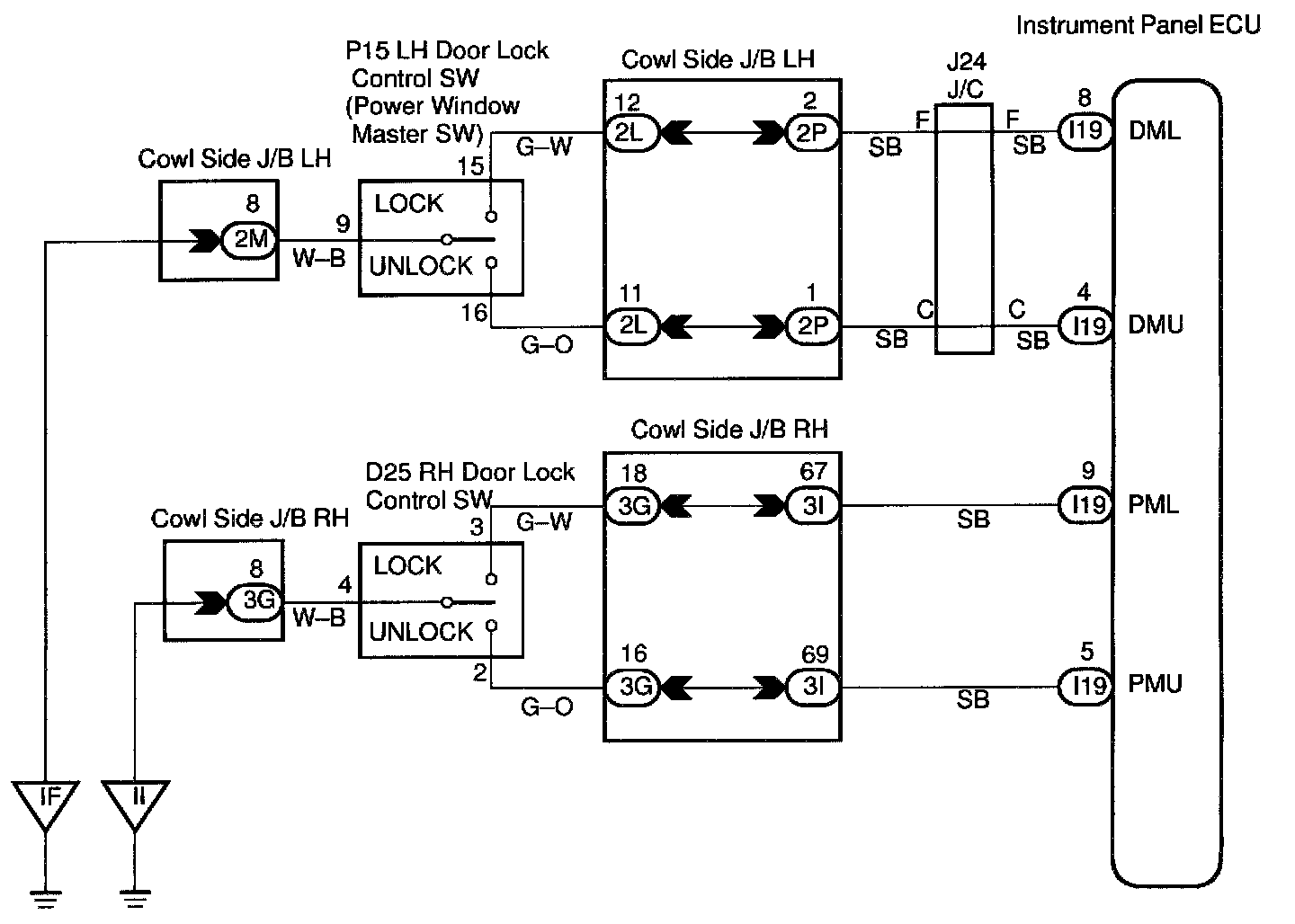

WIRING DIAGRAM

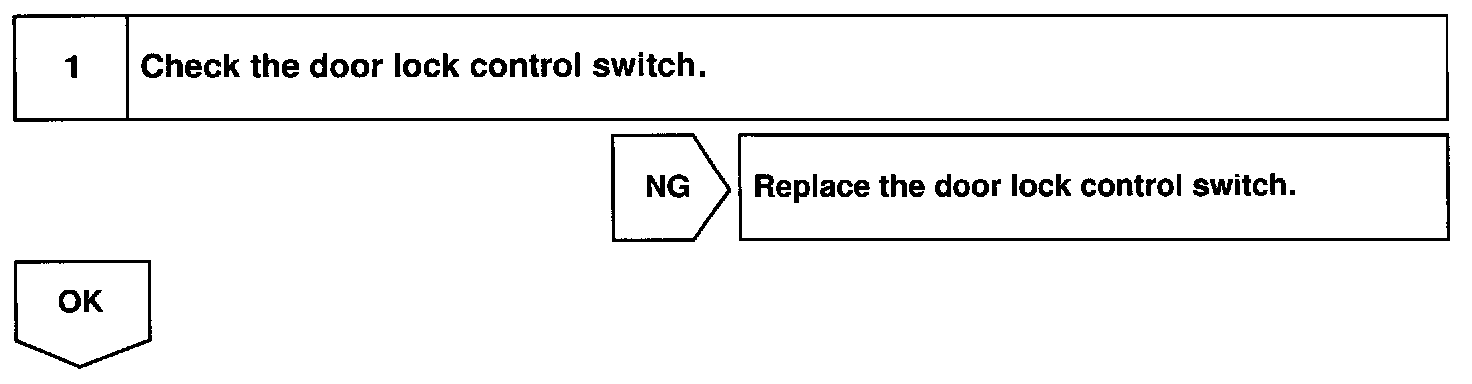

Step 1:

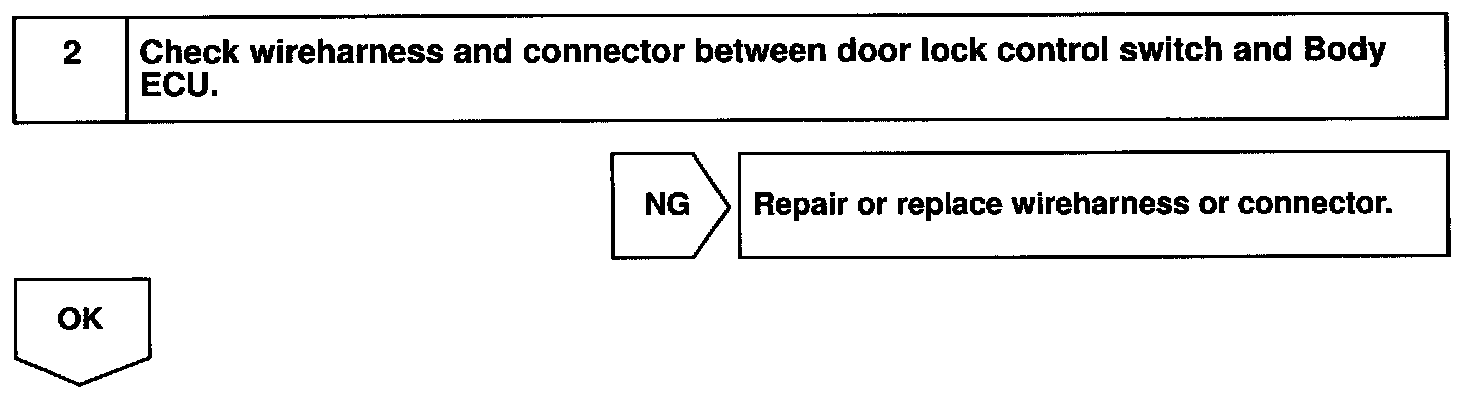

Step 2:

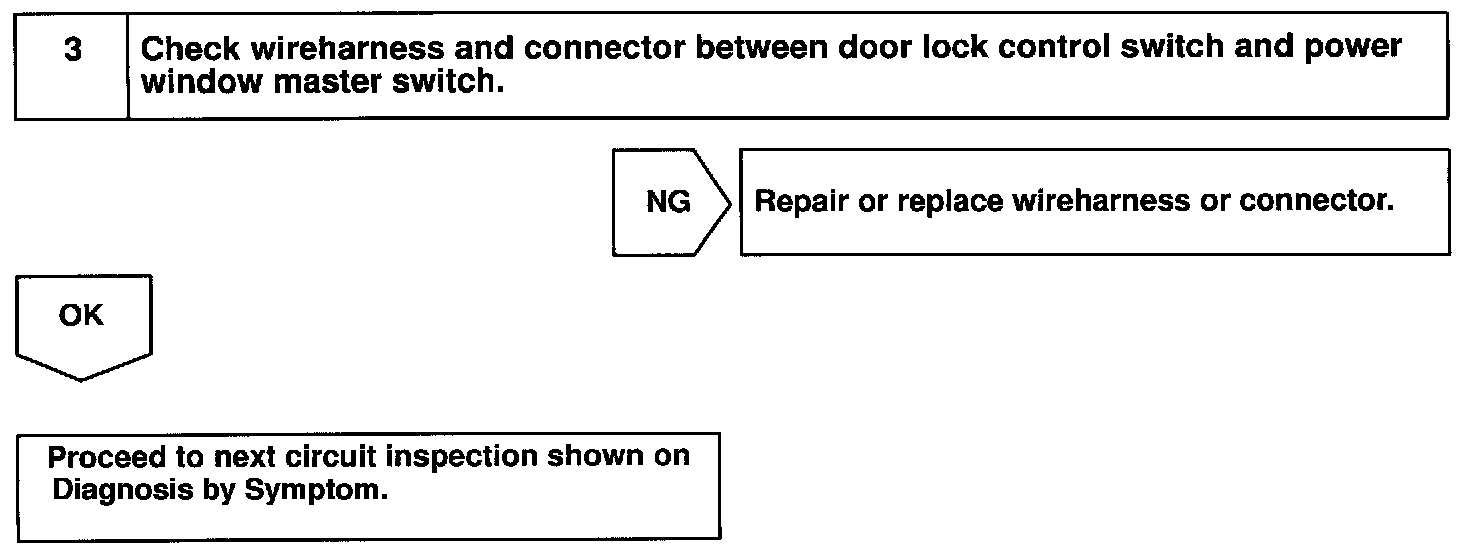

Step 3:





INSPECTION PROCEDURE
